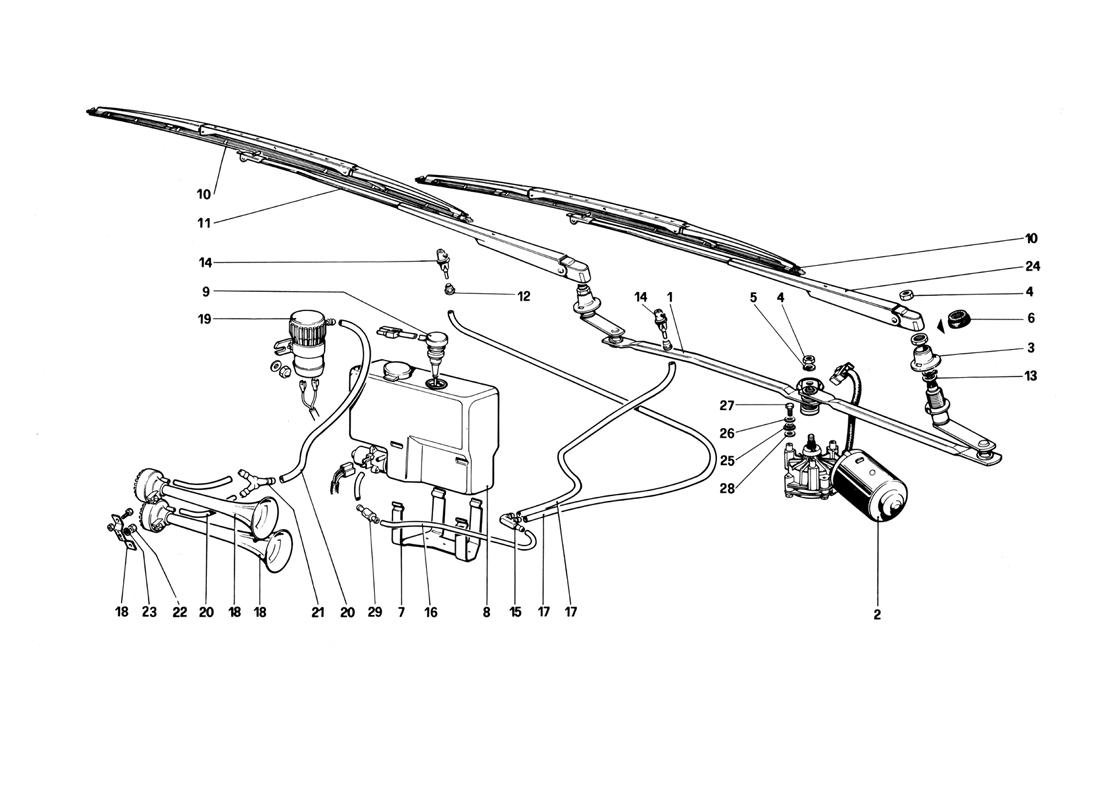

WINDSHIELD WIPER - WASHER AND HORN

Go to Split View

WINDSHIELD WIPER - WASHER AND HORN

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 61310700 *Qty: 1 Washer pipes complete $17.22
Location: 1 Prev | Next Part: 60659200 *Qty: 1 Levers $159.59
Location: 2 Prev | Next Part: 60039609 *Qty: 1 Wiper motor Superseded
Location: 3 Prev | Next Part: 60671400 *Qty: 2 Spacer $4.81
Location: 4 Prev | Next Part: 16102311 *Qty: 3 Nut Superseded
Location: 5 Prev | Next Part: 10516670 *Qty: 1 Washer $0.90
Location: 6 Prev | Next Part: 60701200 *Qty: 2 Gasket $4.42
Location: 7 Prev | Next Part: 60630000 *Qty: 1 Retainer $22.54
Location: 8 Prev | Next Part: 60710200 *Qty: 1 Water reservoir Call
Location: 9 Prev | Next Part: 60814800 *Qty: 1 Liquid level sensor Call
Location: 10 Prev | Next Part: 60703800 *Qty: 2 Wiper brushes $79.07
Location: 11 Prev | Next Part: 60768600 *Qty: 1 R.H. wiper arm (RHD) $48.73
Location: 11 Prev | Next Part: 60703900 *Qty: 1 R.H. wiper arm (LHD) $49.14
Location: 12 Prev | Next Part: 61444900 *Qty: 2 Bushing Call
Location: 13 Prev | Next Part: 10571771 *Qty: 2 Washer $0.90
Location: 14 Prev | Next Part: 61395100 *Qty: 2 Nozzle $13.19
Location: 15 Prev | Next Part: 50103100 *Qty: 1 F union $0.90
Location: 16 Prev | Next Part: 60736800 *Qty: 1 Pipe $3.16
Location: 17 Prev | Next Part: 60736900 *Qty: 2 Pipe $2.02
Location: 18 Prev | Next Part: 60665500 *Qty: 1 Horns
CH excluded
Superseded
Location: 18 Prev | Next Part: 60842900 *Qty: 1 Horns
CH only
$120.65
Location: 19 Prev | Next Part: 61447800 *Qty: 1 Compressor
On exhaustion 60342003
Superseded
Location: 19 Prev | Next Part: 60342003 *Qty: 1 Compressor
To exhaustion
Superseded
Location: 20 Prev | Next Part: 60884300 *Qty: 1 Air duct $5.88
Location: 21 Prev | Next Part: 60741100 *Qty: 1 3 - way union $0.90
Location: 22 Prev | Next Part: 16100811 *Qty: 1 Nut Superseded
Location: 23 Prev | Next Part: 10615679 *Qty: 1 Washer Call
Location: 24 Prev | Next Part: 60768700 *Qty: 1 L.H. wiper arm (RHD) $48.73
Location: 24 Prev | Next Part: 60767800 *Qty: 1 L.H. wiper arm (LHD) $48.73
Location: 25 Prev | Next Part: 40222408 *Qty: 3 Rubber shim $1.74
Location: 26 Prev | Next Part: 50208800 *Qty: 3 Washer $0.90
Location: 27 Prev | Next Part: 10902311 *Qty: 3 Screw $0.90
Location: 28 Prev | Next Part: 40222705 *Qty: 3 Washer $1.00
Location: 29 Prev | Next Part: 50332402 *Qty: 1 Non return valve $9.02

* Quantity shown indicates the number of pieces used in the diagram.
