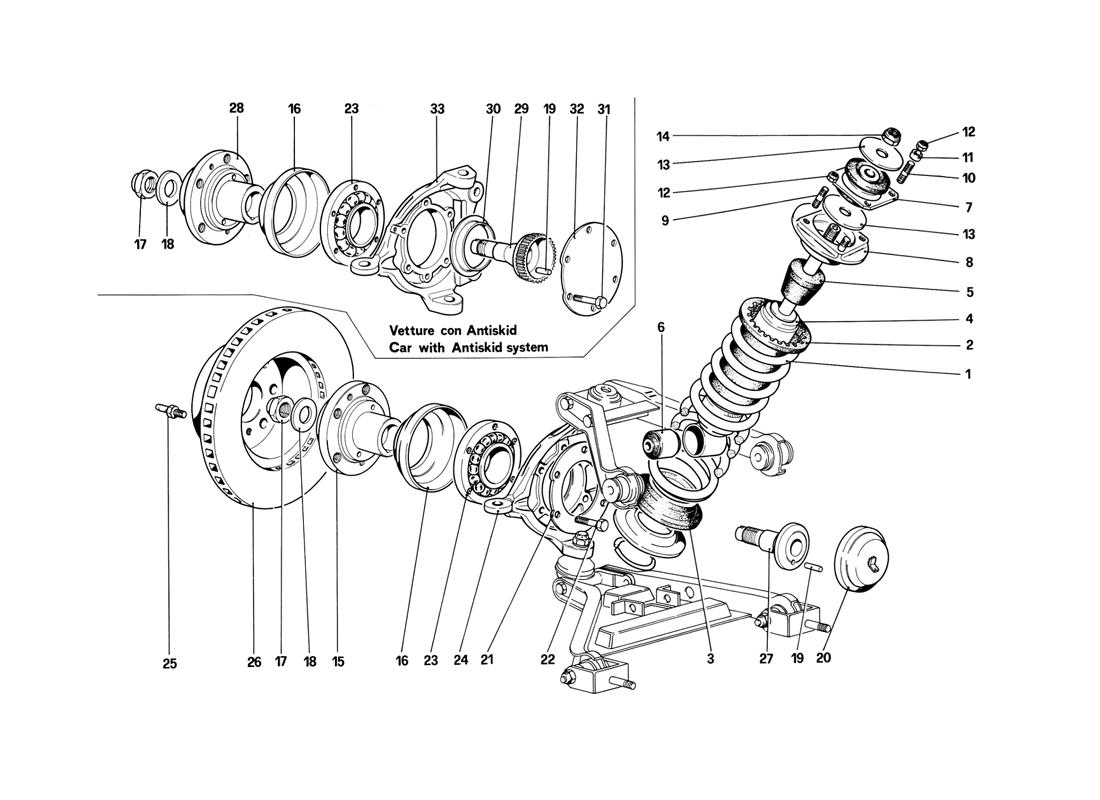

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 118124 *Qty: 2 Suspension spring - For US
Not for Cabriolet
$478.62
Location: 1 Prev | Next Part: 122026 *Qty: 1 Suspension spring - For Cabriolet Unavailable
Location: 1 Prev | Next Part: 116411 *Qty: 2 Suspension spring
Not for Cabriolet and US
$606.91
Location: 2 Prev | Next Part: 113582 *Qty: 2 Upper spacer $118.70
Location: 3 Prev | Next Part: 113581 *Qty: 2 Lower spacer $24.60
Location: 4 Prev | Next Part: 122027 *Qty: 2 Shock absorber
For Cabriolet US
Unavailable
Location: 4 Prev | Next Part: 114727 *Qty: 2 Shock absorber
In alternative use no. 126622 - Not for Cabriolet US
Unavailable
Location: 5 Prev | Next Part: 116358 *Qty: 2 Pad $60.86
Location: 6 Prev | Next Part: 100809 *Qty: 2 Estenblock $20.12
Location: 7 Prev | Next Part: 114812 *Qty: 2 Hyperblock $119.08
Location: 8 Prev | Next Part: 114809 *Qty: 2 Cup, spring retainer Superseded
Location: 9 Prev | Next Part: 13543321 *Qty: 4 Stud Superseded
Location: 10 Prev | Next Part: 13543821 *Qty: 4 Stud Unavailable
Location: 11 Prev | Next Part: 13606011 *Qty: 4 Spacer $3.53
Location: 12 Prev | Next Part: 16104121 *Qty: 8 Nut Superseded
Location: 13 Prev | Next Part: 114815 *Qty: 4 Washer $1.93
Location: 14 Prev | Next Part: 16105121 *Qty: 2 Nut Superseded
Location: 15 Prev | Next Part: 124463 *Qty: 2 Front wheel hub $952.65
Location: 16 Prev | Next Part: 112823 *Qty: 2 Bearing cover Unavailable
Location: 17 Prev | Next Part: 124642 *Qty: 2 Nut $30.90
Location: 18 Prev | Next Part: 124464 *Qty: 2 Washer $30.49
Location: 19 Prev | Next Part: 13909870 *Qty: 2 Pin $0.90
Location: 20 Prev | Next Part: 117171 *Qty: 2 Bearing cover $27.82
Location: 21 Prev | Next Part: 118522 *Qty: 2 Washer $10.72
Location: 22 Prev | Next Part: 14238731 *Qty: 12 Bolt $0.90
Location: 23 Prev | Next Part: 112799 *Qty: 2 Bearing $1,009.66
Location: 24 Prev | Next Part: 117187 *Qty: 1 Stub axle, right $820.32
Location: 24 Prev | Next Part: 117188 *Qty: 1 Stub axle, left $864.72
Location: 25 Prev | Next Part: 104370 *Qty: 4 Centering screw $0.90
Location: 26 Prev | Next Part: 117185 *Qty: 2 Brake disc $428.86
Location: 27 Prev | Next Part: 124465 *Qty: 2 Stay bolt for bearing $839.78
Location: 28 Prev | Next Part: 131738 *Qty: 2 Front wheel hub $1,567.93
Location: 29 Prev | Next Part: 131741 *Qty: 2 Stay bolt with toothed wheel Superseded
Location: 30 Prev | Next Part: 131279 *Qty: 2 Protection ring Unavailable
Location: 31 Prev | Next Part: 14238931 *Qty: 12 Bolt $5.00
Location: 32 Prev | Next Part: 131278 *Qty: 2 Cover $13.01
Location: 33 Prev | Next Part: 130056 *Qty: 1 Stub axle, right Unavailable
Location: 33 Prev | Next Part: 130057 *Qty: 1 Stub axle, left $746.71

* Quantity shown indicates the number of pieces used in the diagram.
