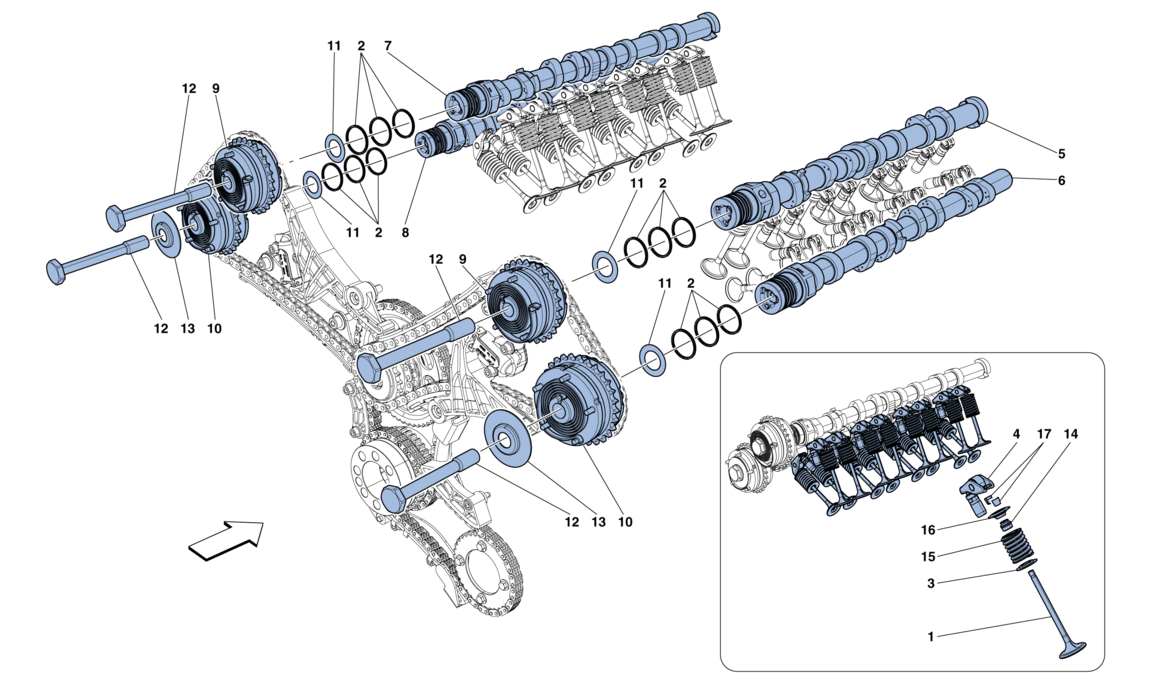

TIMING SYSTEM - CAMSHAFTS AND VALVES

Go to Split View

TIMING SYSTEM - CAMSHAFTS AND VALVES

Location Part # Quantity* Description Price Add To Cart
1 287607 16 INTAKE VALVE $18.45
1 287608 16 EXHAUST VALVE $45.80
2 246965 12 SEAL RING $12.26
3 287553 16 LOWER INTAKE VALVE SPRING CAP $3.79
3 287551 16 LOWER EXHAUST VALVE SPRING CAP $3.56
4 289270 32 COMPL. FINGER-TAPPET $37.44
5 293267 1 RH INTAKE CAMSHAFT Unavailable
6 293269 1 RH EXHAUST CAMSHAFT Unavailable
7 293268 1 LH INTAKE CAMSHAFT Unavailable
8 293270 1 LH EXHAUST CAMSHAFT Unavailable
9 279099 2 VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT $545.24
10 295300 2 VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT $550.99
11 240559 4 DIAMOND COATED WASHER $11.27
12 287708 4 SCREW $15.41
13 296310 2 SPACER $22.10
14 221473 32 OIL SEAL $1.75
15 298722 32 VALVE RETURN SPRING $18.29
16 287554 32 UPPER SPRING CAP $5.83
17 179763 64 VALVE SPRING SEMI-CONE Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
