STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE

Go to Split View

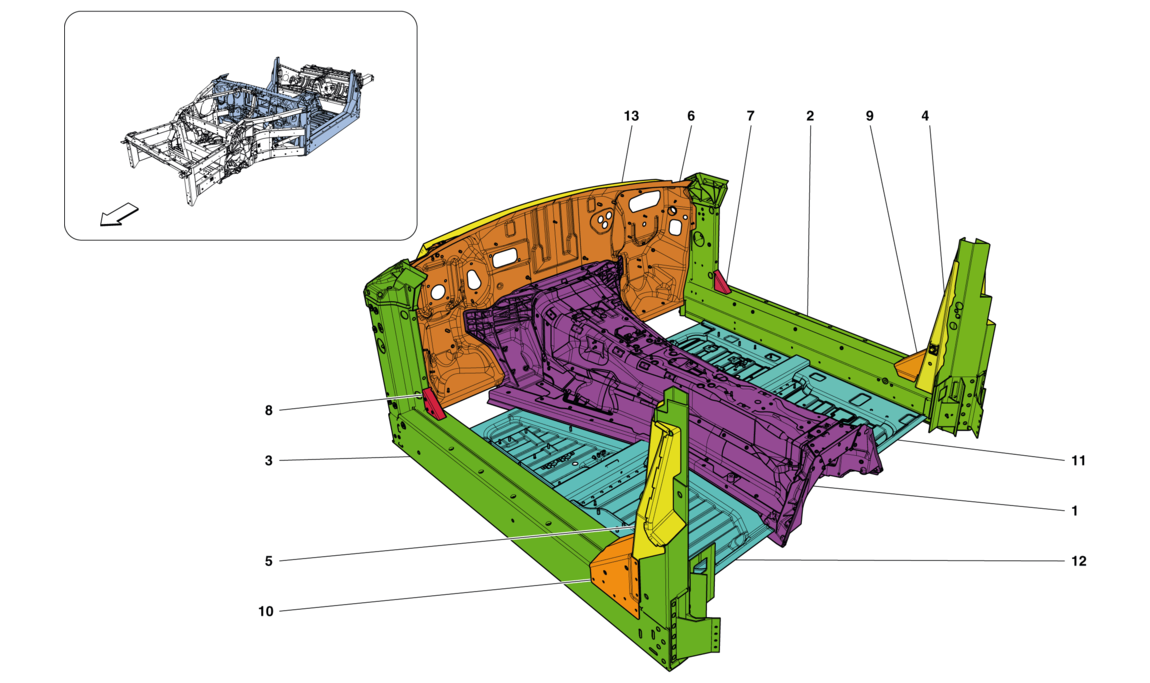

STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE

Location Part # Quantity* Description Price Add To Cart
1 294374 1 COMPL. TUNNEL -Restricted item; not available for resale- $17,855.30
2 294370 1 COMPL. RH LATERAL MODULE -Restricted item; not available for resale- $15,586.64
3 297319 1 COMPL. LH LATERAL MODULE -Restricted item; not available for resale- -Not for RHD vehicles- $15,264.07
3 301611 1 COMPL. LH LATERAL MODULE -Restricted item; not available for resale- -Applicable for RHD vehicles- $15,264.07
4 289775 1 INTERNAL RH TRUSS $762.46
5 289769 1 INTERNAL LH TRUSS $762.46
6 294363 1 COMPL. FRONT FIREWALL -Restricted item; not available for resale- -Not for RHD vehicles- $762.46
6 295668 1 COMPL. FRONT FIREWALL -Restricted item; not available for resale- -Applicable for RHD vehicles- $867.74
7 288558 1 RH A-PILLAR TRUSS $635.38
8 288557 1 LH A-PILLAR TRUSS $635.38
9 279420 1 EXTERNAL RH B-PILLAR TRUSS $457.60
10 279417 1 EXTERNAL LH B-PILLAR TRUSS $325.60
11 289203 1 COMPL. RH FLOOR PANEL -Restricted item; not available for resale- $953.08
12 289202 1 COMPL. LH FLOOR PANEL -Restricted item; not available for resale- $876.83
13 236992 1 WINDSCREEN VALENCE PANEL $889.70

* Quantity shown indicates the number of pieces used in the diagram.
