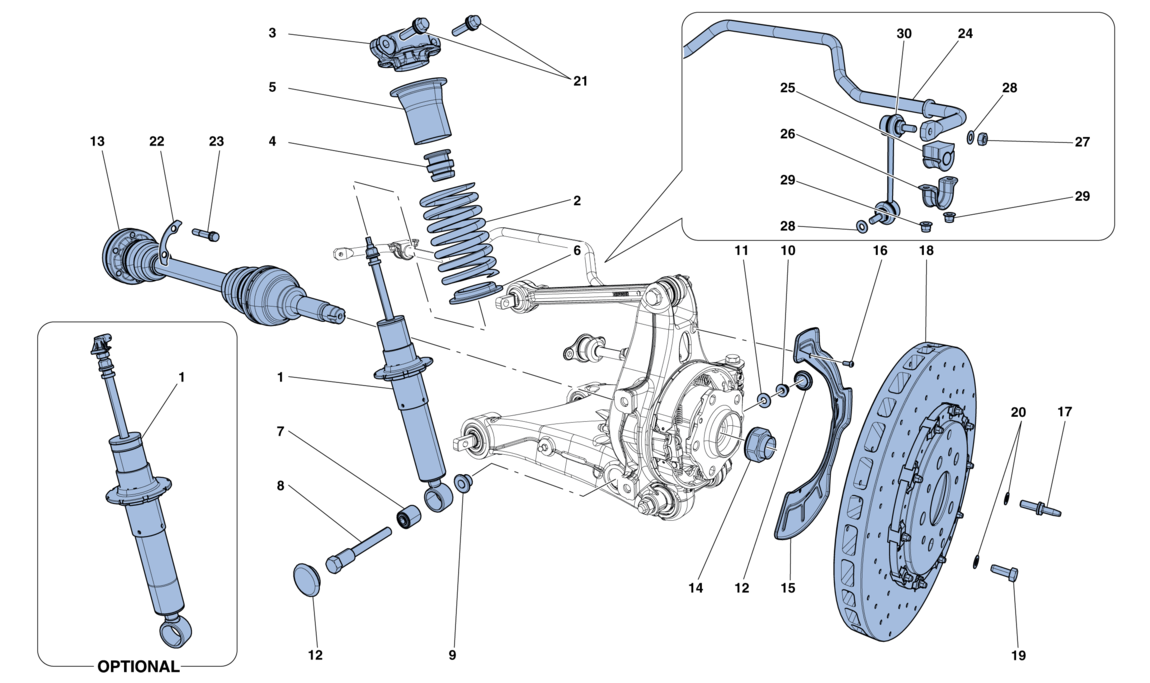

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 308243 *Qty: 2 REAR SHOCK ABSORBER $699.05
Location: 1 Prev | Next Part: 281471 *Qty: 2 REAR SHOCK ABSORBER -Dual Mode Magneride- $1,361.35
Location: 2 Prev | Next Part: 304242 *Qty: 2 REAR SUSPENSION SPRING $105.50
Location: 3 Prev | Next Part: 250394 *Qty: 2 STOP CAP $243.76
Location: 4 Prev | Next Part: 267936 *Qty: 2 ENDSTOP BUSH $37.51
Location: 5 Prev | Next Part: 212517 *Qty: 2 UPPER SPACER $10.68
Location: 6 Prev | Next Part: 188996 *Qty: 2 LOWER SPACER $13.86
Location: 7 Prev | Next Part: 157630 *Qty: 2 SHOCK ABSORBER BUSHING $106.14
Location: 8 Prev | Next Part: 246962 *Qty: 2 SPECIAL SCREW $35.61
Location: 9 Prev | Next Part: 237821 *Qty: 2 BUSHING $5.66
Location: 10 Prev | Next Part: 255271 *Qty: 2 NUT $1.60
Location: 11 Prev | Next Part: 12646921 *Qty: 2 WASHER $0.90
Location: 12 Prev | Next Part: 14507987 *Qty: 4 CAP $6.50
Location: 13 Prev | Next Part: 226650 *Qty: 2 COMPLETE AXLE SHAFT $1,015.51
Location: 14 Prev | Next Part: 203780 *Qty: 2 NUT $25.46
Location: 15 Prev | Next Part: 257423 *Qty: 1 LH DISC SHIELD $56.32
Location: 15 Prev | Next Part: 257424 *Qty: 1 RH DISC SHIELD $56.32
Location: 16 Prev | Next Part: 250657 *Qty: 6 SCREW $7.27
Location: 17 Prev | Next Part: 104370 *Qty: 2 SCREW $0.90
Location: 18 Prev | Next Part: 282121 *Qty: 2 REAR BRAKE DISC Unavailable
Location: 19 Prev | Next Part: 228131 *Qty: 2 SCREW Unavailable
Location: 20 Prev | Next Part: 228132 *Qty: 4 WASHER Unavailable
Location: 21 Prev | Next Part: 248790 *Qty: 4 SCREW $4.64
Location: 22 Prev | Next Part: 220325 *Qty: 6 SHIM PLATE $4.29
Location: 23 Prev | Next Part: 237590 *Qty: 12 SCREW $5.30
Location: 24 Prev | Next Part: 274172 *Qty: 1 REAR STABILISER BAR $351.23
Location: 25 Prev | Next Part: 236242 *Qty: 2 STABILISER BAR BUSH $28.99
Location: 26 Prev | Next Part: 244778 *Qty: 2 RETAINER BRACKET $20.98
Location: 27 Prev | Next Part: 12164714 *Qty: 2 NUT $0.90
Location: 28 Prev | Next Part: 12601474 *Qty: 2 WASHER Unavailable
Location: 29 Prev | Next Part: 12578321 *Qty: 4 NUT Unavailable
Location: 30 Prev | Next Part: 242392 *Qty: 1 LH SPHERICAL TIE-ROD $111.64
Location: 30 Prev | Next Part: 242391 *Qty: 1 RH SPHERICAL TIE-ROD $111.54

* Quantity shown indicates the number of pieces used in the diagram.
