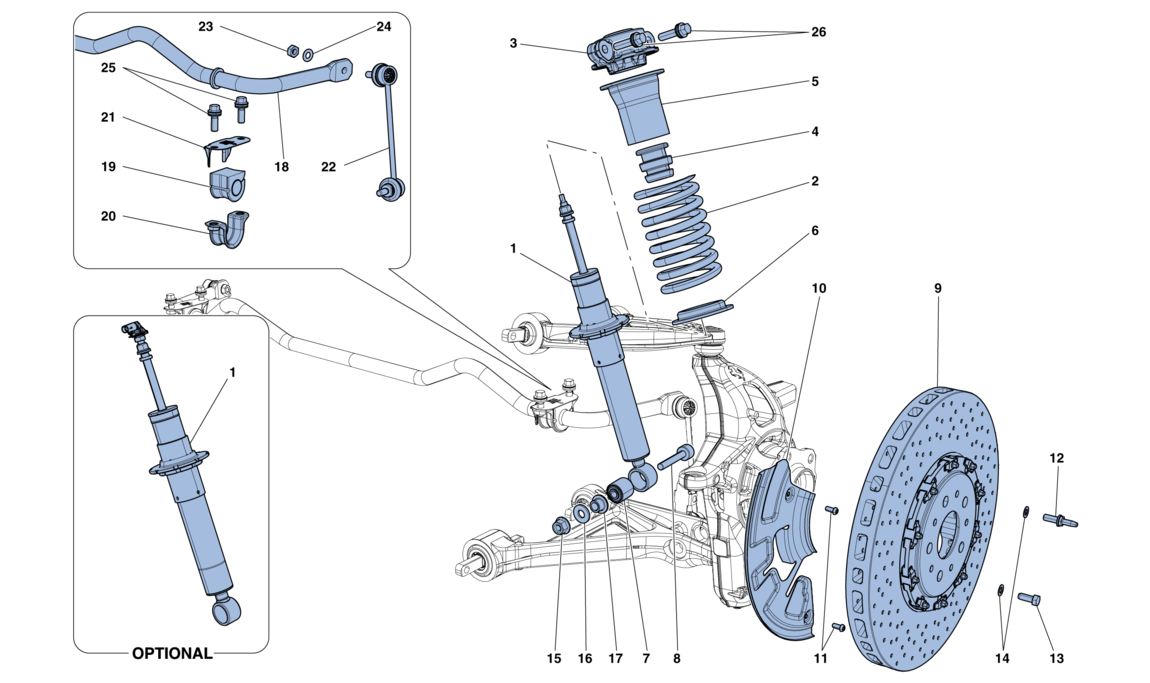

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 308242 *Qty: 2 FRONT SHOCK ABSORBER $685.35
Location: 1 Prev | Next Part: 281475 *Qty: 2 FRONT SHOCK ABSORBER -Dual Mode Magneride- $1,530.12
Location: 2 Prev | Next Part: 285305 *Qty: 2 FRONT SUSPENSION SPRING $117.45
Location: 3 Prev | Next Part: 250394 *Qty: 2 STOP CAP $238.98
Location: 4 Prev | Next Part: 267936 *Qty: 2 ENDSTOP BUSH $36.77
Location: 5 Prev | Next Part: 212517 *Qty: 2 UPPER SPACER $10.47
Location: 6 Prev | Next Part: 188996 *Qty: 2 LOWER SPACER $13.58
Location: 7 Prev | Next Part: 157630 *Qty: 2 SHOCK ABSORBER BUSHING $104.05
Location: 8 Prev | Next Part: 237297 *Qty: 2 SCREW $34.71
Location: 9 Prev | Next Part: 297292 *Qty: 2 FRONT BRAKE DISC Unavailable
Location: 10 Prev | Next Part: 297322 *Qty: 1 FRONT LH DISC SHIELD $22.43
Location: 10 Prev | Next Part: 297323 *Qty: 1 FRONT RH DISC SHIELD $22.43
Location: 11 Prev | Next Part: 250657 *Qty: 4 SCREW $7.13
Location: 12 Prev | Next Part: 104370 *Qty: 2 SCREW $0.90
Location: 13 Prev | Next Part: 228131 *Qty: 2 SCREW $0.90
Location: 14 Prev | Next Part: 228132 *Qty: 4 WASHER $0.90
Location: 15 Prev | Next Part: 255271 *Qty: 2 NUT $1.57
Location: 16 Prev | Next Part: 12646921 *Qty: 2 WASHER $0.90
Location: 17 Prev | Next Part: 237821 *Qty: 2 BUSHING $5.56
Location: 18 Prev | Next Part: 284738 *Qty: 1 STABILISER BAR $372.17
Location: 19 Prev | Next Part: 257806 *Qty: 2 STABILISER BAR BUSH $16.20
Location: 20 Prev | Next Part: 245822 *Qty: 2 RETAINER BRACKET $21.60
Location: 21 Prev | Next Part: 286144 *Qty: 2 BUSHING MOUNT Unavailable
Location: 22 Prev | Next Part: 247950 *Qty: 1 LH SPHERICAL TIE-ROD $96.63
Location: 22 Prev | Next Part: 247952 *Qty: 1 RH SPHERICAL TIE-ROD $96.63
Location: 23 Prev | Next Part: 12164714 *Qty: 2 NUT $0.90
Location: 24 Prev | Next Part: 12601474 *Qty: 2 WASHER $0.90
Location: 25 Prev | Next Part: 245843 *Qty: 4 SCREW Superseded
Location: 26 Prev | Next Part: 248790 *Qty: 4 SCREW $4.55

* Quantity shown indicates the number of pieces used in the diagram.
