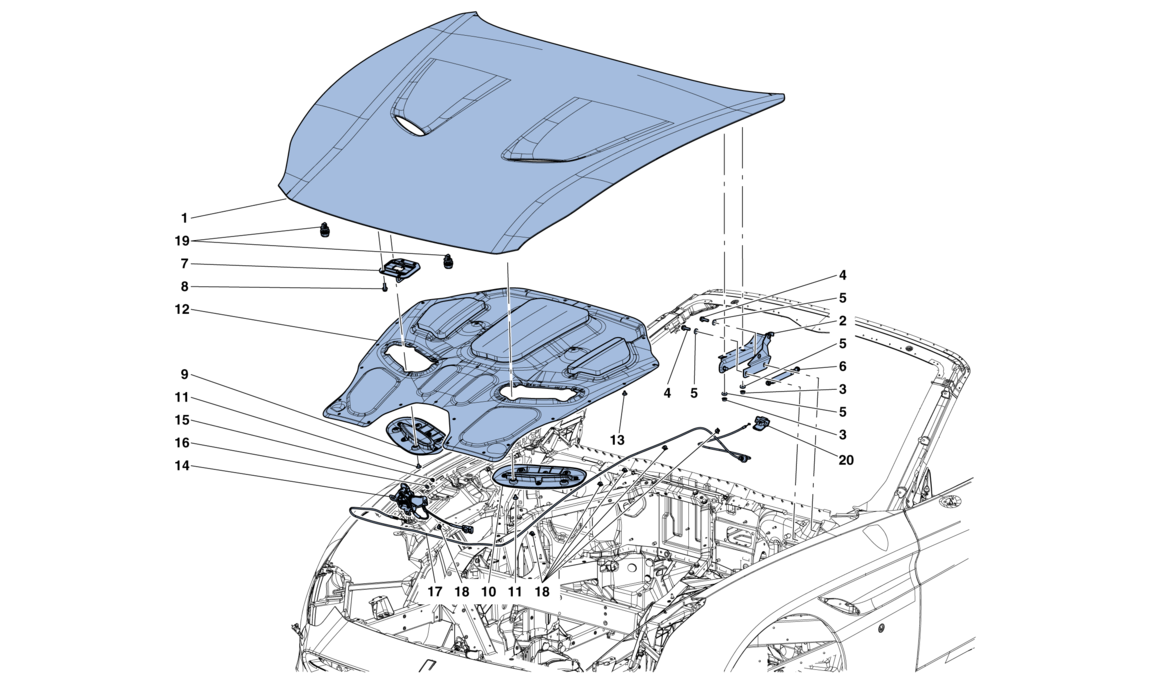

FRONT LID AND OPENING MECHANISM

Go to Split View

FRONT LID AND OPENING MECHANISM

Location Part # Quantity* Description Price Add To Cart
1 85312411 1 PRESSED LID $4,488.44
2 69994200 1 LH FRONT LID HINGE $82.38
2 69994300 1 RH FRONT LID HINGE $82.38
3 14059311 4 NUT Unavailable
4 16287224 4 SCREW Superseded
5 12646724 8 WASHER $0.90
6 85915100 2 GAS STRUT $37.58
7 80246800 1 STRIKER PLATE $58.79
8 81923100 4 SCREW Unavailable
9 85707900 1 RH LID GRILLE $62.58
10 85707800 1 LH LID GRILLE $62.58
11 82115900 8 SCREW Unavailable
12 85193700 1 ENGINE COMPARTMENT LID INSULATION $188.51
13 14591687 26 FASTENER BUTTON $0.90
14 83752200 1 LID LOCK $169.04
15 13046112 3 NUT Unavailable
16 12647878 3 WASHER $3.45
17 82575600 1 FRONT LID RELEASE BOWDEN CABLE -Not for RHD vehicles- $77.79
17 85041000 1 FRONT LID RELEASE BOWDEN CABLE -Applicable for RHD vehicles- Unavailable
18 14569480 6 CLIP Unavailable
19 67161800 2 VIBRATION DAMPER $39.48
20 67003800 1 ENGINE COMPARTMENT LID HANDLE $76.75

* Quantity shown indicates the number of pieces used in the diagram.
