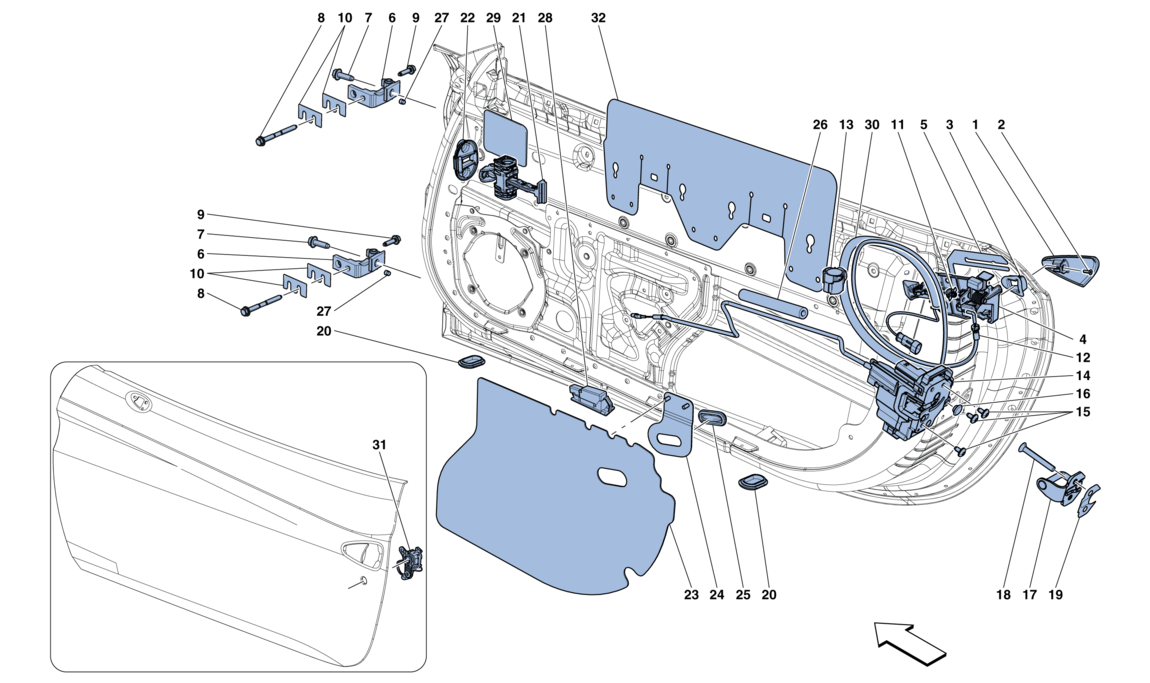

DOORS - OPENING MECHANISMS AND HINGES

Location Part # Quantity* Description Price Add To Cart
1 69978900 1 RH OUTER DOOR RELEASE HANDLE $56.92
1 69979100 1 LH OUTER DOOR RELEASE HANDLE $56.92
2 80365900 2 SCREW $0.90
3 81328000 1 RH SEAL $15.69
3 81327900 1 LH SEAL $15.69
4 80821600 1 RH OUTER DOOR HANDLE MODULE $276.06
4 80821800 1 LH OUTER DOOR HANDLE MODULE $258.80
5 80821900 4 DOOR HANDLE SPACER $8.51
6 69827100 2 RH DOOR HINGE $141.47
6 69827200 2 LH DOOR HINGE $141.47
7 81267100 4 SCREW $6.98
8 83743900 4 SCREW $4.10
9 83743800 4 SCREW $2.42
10 80709900 8 SHIM -Th. 1 mm- $5.68
10 80712500 8 SHIM -Th. 1.5 mm- $6.54
11 14569480 2 CLIP Unavailable
12 69877100 2 BOWDEN CABLE $48.29
13 248061 2 CLIP $2.88
14 85641700 1 RH LOCK UNIT -Not for RHD vehicles- $359.13
14 85916500 1 RH LOCK UNIT -Applicable for RHD vehicles- $220.09
14 85641600 1 LH LOCK UNIT -Not for RHD vehicles- $359.13
14 85911400 1 LH LOCK UNIT -Applicable for RHD vehicles- $220.09
15 85478900 6 SCREW $1.50
16 14506587 2 CAP Unavailable
17 85052500 2 DOOR LOCK STRIKER PLATE Unavailable
18 85133300 4 SCREW $2.33
19 83595400 2 DOOR STRIKER PLATE FILM $4.49
20 85154200 4 CAP FOR SLOT $1.52
21 69877300 2 DOOR ARRESTER TIE-ROD $75.90
22 83897000 2 DOOR ARRESTER TIE-ROD SEAL Unavailable
23 85641500 1 RH WATERPROOF MEMBRANE -No longer supplied- -Replaced by 86618300- Unavailable
23 86618300 1 RH WATERPROOF MEMBRANE $276.06
23 85641400 1 LH WATERPROOF MEMBRANE -No longer supplied- -Replaced by 86618200- Unavailable
23 86618200 1 LH WATERPROOF MEMBRANE $276.06
24 85831700 1 RH MOUNTING $25.63
24 85831600 1 LH MOUNTING $25.63
25 82629100 2 CABLE GROMMET Unavailable
26 82936500 2 PROTECTIVE SHEATH FOR INTERNAL HANDLE BOWDEN CABLE $2.54
27 84111900 4 GRUB SCREW $7.23
28 188250 2 LIGHT UNIT Unavailable
29 83735800 2 ADHESIVE PLUG $1.92
30 82936400 2 SHEATH Unavailable
31 85881000 1 LATCH HOLDER -Not for RHD vehicles- -No longer supplied- -Replaced by 80811000- Unavailable
31 80811000 1 LATCH HOLDER -Not for RHD vehicles- $157.18
31 81016000 1 LATCH HOLDER -Applicable for RHD vehicles- $154.05
32 86690800 2 FOIL FLAP -Applicable for USA, CDN, USA LIGHT- $165.35

* Quantity shown indicates the number of pieces used in the diagram.
