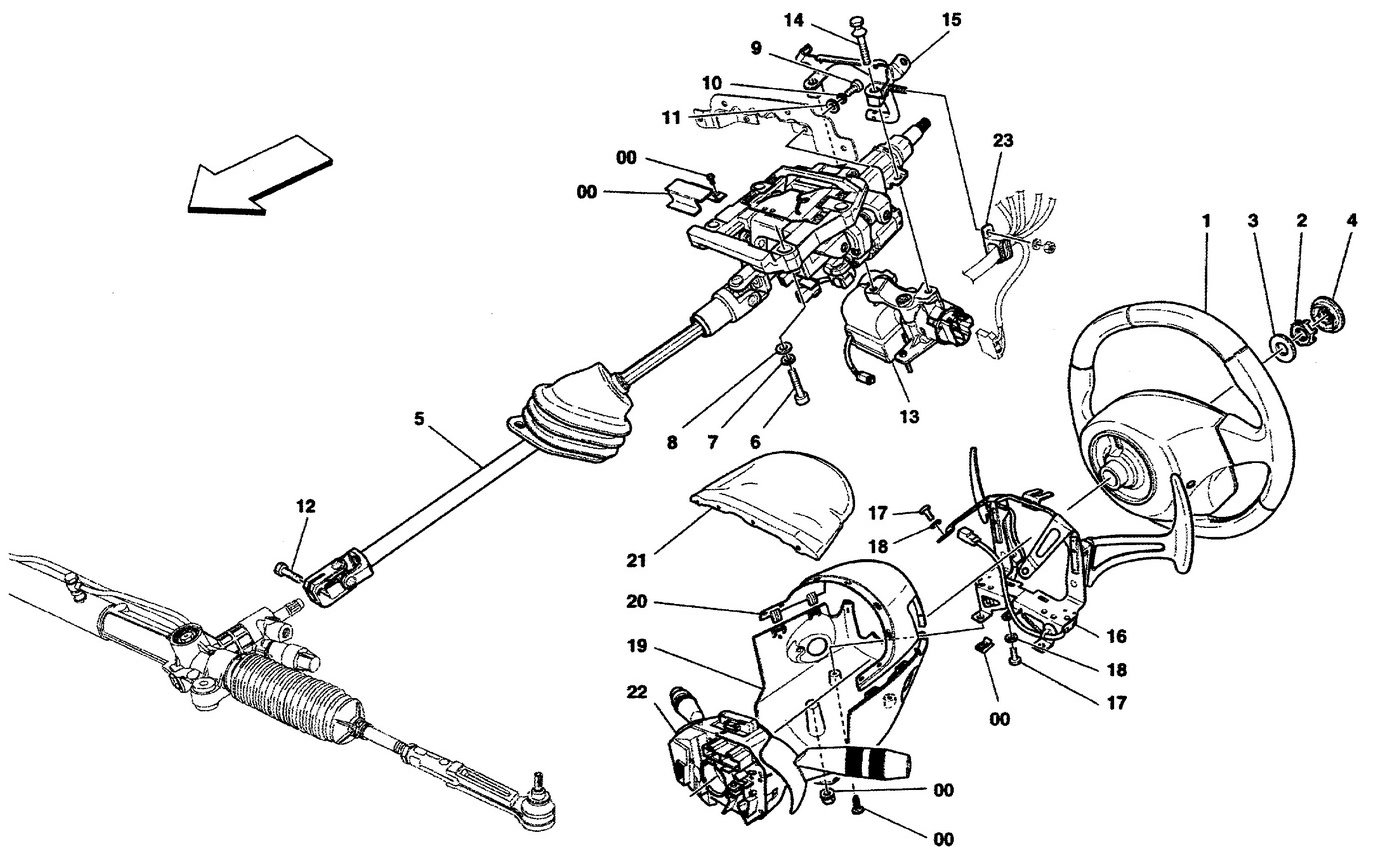

STEERING COLUMN AND STEERING WHEEL UNIT

Go to Split View

STEERING COLUMN AND STEERING WHEEL UNIT

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 820234 *Qty: 1 COMPLETE STEERING WHEEL Unavailable
Location: 1 Prev | Next Part: 820235 *Qty: 1 COMPLETE STEERING WHEEL -Carbon fibre trim- Unavailable
Location: 1 Prev | Next Part: 820236 *Qty: 1 COMPLETE STEERING WHEEL -Carbon fibre trim- -Leds steering wheel- Unavailable
Location: 2 Prev | Next Part: 199222 *Qty: 1 NUT Superseded
Location: 3 Prev | Next Part: 152034 *Qty: 1 WASHER $7.31
Location: 4 Prev | Next Part: 199406 *Qty: 1 PLUG FOR NUT Unavailable
Location: 5 Prev | Next Part: 236210 *Qty: 1 COMPLETE STEERING ROD $3,956.86
Location: 6 Prev | Next Part: 14306724 *Qty: 4 SCREW Unavailable
Location: 7 Prev | Next Part: 10519624 *Qty: 4 WASHER Unavailable
Location: 8 Prev | Next Part: 11194074 *Qty: 4 WASHER $0.90
Location: 9 Prev | Next Part: 10902324 *Qty: 2 SCREW Superseded
Location: 10 Prev | Next Part: 12646624 *Qty: 2 WASHER Unavailable
Location: 11 Prev | Next Part: 11197774 *Qty: 2 WASHER $0.90
Location: 12 Prev | Next Part: 245173 *Qty: 1 SCREW $0.97
Location: 13 Prev | Next Part: 247058 *Qty: 1 STEERING LOCK $369.53
Location: 14 Prev | Next Part: 192053 *Qty: 2 SCREW $5.37
Location: 15 Prev | Next Part: 204044 *Qty: 1 BRACKET SUPPORT $343.17
Location: 16 Prev | Next Part: 250064 *Qty: 1 LEVERS SET $1,721.31
Location: 16 Prev | Next Part: 226097 *Qty: 1 LEVERS SET -Carbon fibre trim- $4,027.52
Location: 17 Prev | Next Part: 13025787 *Qty: 3 SCREW Unavailable
Location: 18 Prev | Next Part: 12601174 *Qty: 3 WASHER $0.90
Location: 19 Prev | Next Part: 820018 *Qty: 1 LOWER STEERING COLUMN TRIM Unavailable
Location: 20 Prev | Next Part: 697660 *Qty: 1 UPPER COVER FOR STEERING ROD Unavailable
Location: 21 Prev | Next Part: 697548 *Qty: 1 COVER Unavailable
Location: 22 Prev | Next Part: 241571 *Qty: 1 COMPLETE UNHOOK DEVIATION $2,301.85
Location: 22 Prev | Next Part: 241573 *Qty: 1 COMPLETE UNHOOK DEVIATION -Cruise control- $6.00
Location: 23 Prev | Next Part: 143119 *Qty: 1 FIXING CLIP Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
