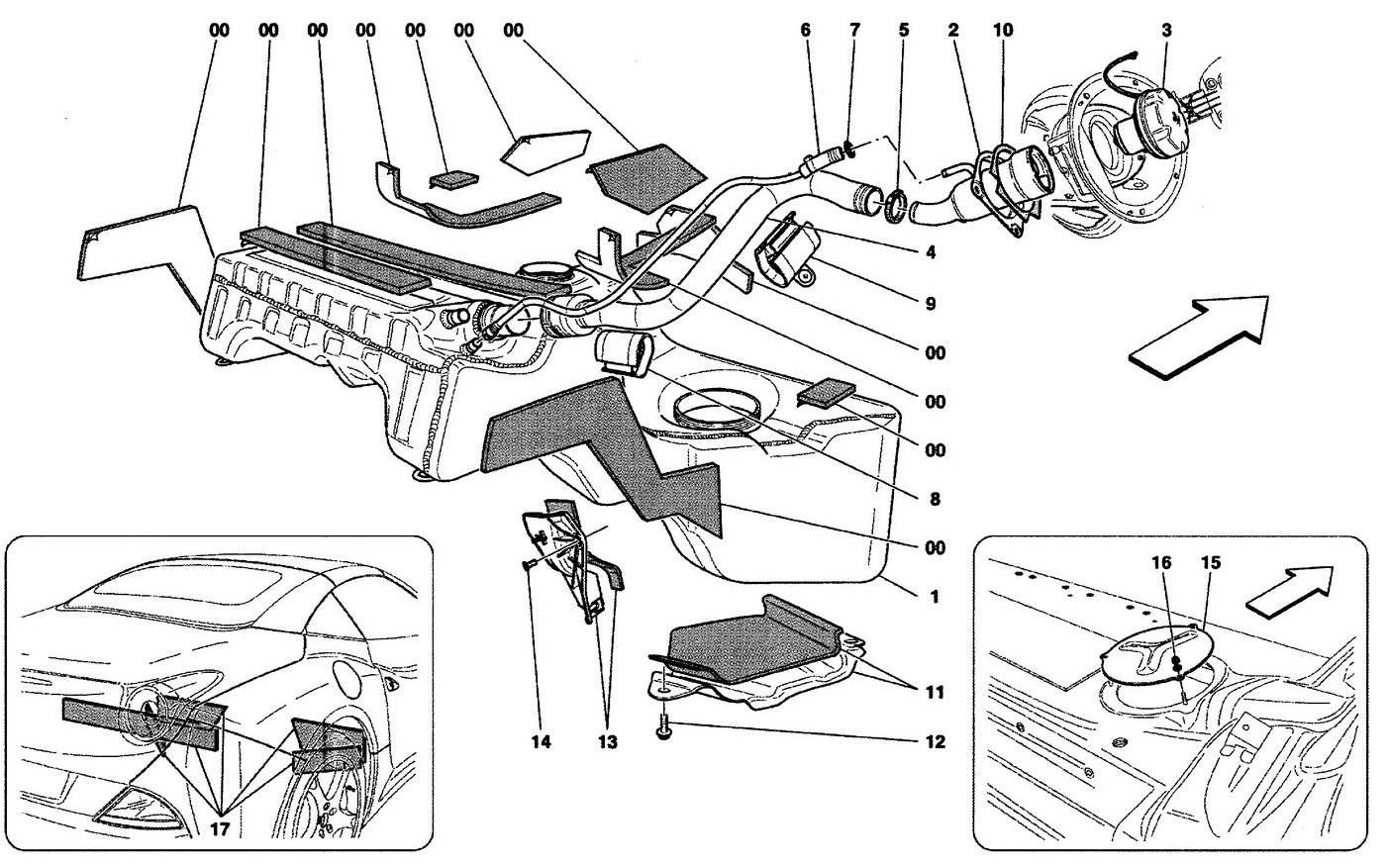

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 236157 *Qty: 1 FUEL TANK $6.00
Location: 2 Prev | Next Part: 254035 *Qty: 1 COMPLETE FUEL UNION -Not for USA and CDN- Unavailable
Location: 2 Prev | Next Part: 246296 *Qty: 1 COMPLETE FUEL UNION -Valid for USA and CDN- Unavailable
Location: 3 Prev | Next Part: 241595 *Qty: 1 TANK PLUG $249.06
Location: 4 Prev | Next Part: 241085 *Qty: 1 UNION-TANK CONNECTING PIPE $89.85
Location: 5 Prev | Next Part: 10718770 *Qty: 1 COLLAR $2.57
Location: 6 Prev | Next Part: 240222 *Qty: 1 VAPORS RECYCLING PIPE $38.89
Location: 7 Prev | Next Part: 13432070 *Qty: 1 COLLAR $0.90
Location: 8 Prev | Next Part: 240223 *Qty: 1 PROTECTION $22.03
Location: 9 Prev | Next Part: 246335 *Qty: 1 PROTECTION $36.96
Location: 10 Prev | Next Part: 241064 *Qty: 1 GASKET $12.96
Location: 11 Prev | Next Part: 244607 *Qty: 1 L.H. FRONT BRACKET FOR FUEL SUPPORT $35.67
Location: 11 Prev | Next Part: 244608 *Qty: 1 R.H. FRONT BRACKET FOR FUEL SUPPORT $35.67
Location: 12 Prev | Next Part: 16287024 *Qty: 6 SCREW Unavailable
Location: 13 Prev | Next Part: 252965 *Qty: 1 L.H. REAR BRACKET FOR FUEL SUPPORT $85.29
Location: 13 Prev | Next Part: 252968 *Qty: 1 R.H. REAR BRACKET FOR FUEL SUPPORT $85.29
Location: 14 Prev | Next Part: 14442027 *Qty: 4 SCREW $1.96
Location: 15 Prev | Next Part: 244762 *Qty: 1 INSPECTION DOOR $21.88
Location: 16 Prev | Next Part: 14040514 *Qty: 3 NUT Unavailable
Location: 17 Prev | Next Part: 228659 *Qty: 1 FUEL TANK SUPPORT PAD KIT $163.51
Location: 18 Prev | Next Part: 237601 *Qty: 1 FUEL TANK PAD KIT -Image not available- $174.26

* Quantity shown indicates the number of pieces used in the diagram.
