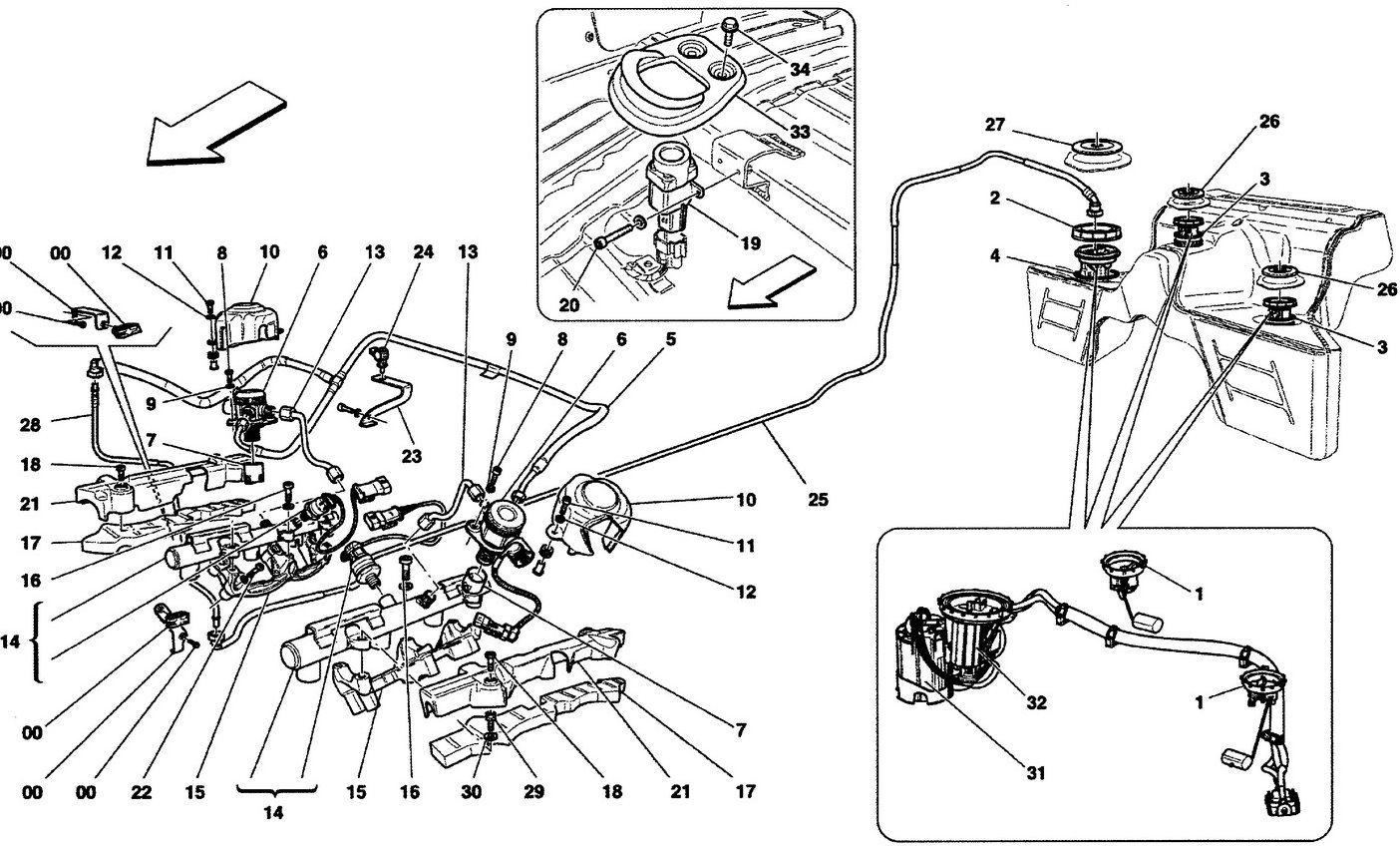

FUEL PUMPS AND LINES

FUEL PUMPS AND LINES

Location Part # Quantity* Description Price Add To Cart
1 252074 2 COMPLETE LEVEL SENSOR Unavailable
2 239497 1 RING NUT $35.24
3 239413 2 GASKET $6.39
4 239412 1 GASKET Superseded
5 250259 1 PIPE FOR FEED PUMPS Unavailable
6 249655 2 FUEL PUMP Superseded
7 212797 2 BOWL $69.04
8 14305334 4 SCREW $0.90
9 12639724 4 WASHER $0.90
10 247537 2 ACOUSTIC COVER $95.31
11 231621 4 SCREW Unavailable
12 12647701 4 WASHER Unavailable
13 247674 2 PIPE $449.22
14 247581 2 COMPLETE INJECTORS PIPE $2,340.85
15 239946 2 INJECTORS PIPE SUPPORT $155.58
16 231620 6 SCREW Unavailable
17 247872 2 INSULATION -Valid till stock exhaustion- Unavailable
17 256322 2 INSULATION -Applicable after depletion of 247872- $77.79
18 231618 4 SCREW Unavailable
19 163675 1 INERTIAL SWITCH $26.78
20 16285127 2 SCREW Superseded
21 251015 2 INJECTORS COVER $123.16
22 231624 12 SCREW Unavailable
23 247117 1 FUEL PIPE FIXING BRACKET $63.48
24 67885100 1 CLIP $1.62
25 248968 1 FUEL DELIVERY TUBE -Not for USA, CDN and RHD- -Not as spare part- -Replaced by 248968- $276.92
25 248968 1 FUEL DELIVERY TUBE -Not for USA, CDN and RHD- -Valid till stock exhaustion for not RHD- $276.92
25 257294 1 FUEL DELIVERY TUBE -Valid for USA and CDN- -Applicable after depletion of 248968 not for USA and CDN versions- -Not for RHD- $135.93
25 248968 1 FUEL DELIVERY TUBE -Valid for RHD- $276.92
26 250480 2 PLUG $27.22
27 250481 1 PUMP PLUG $47.22
28 244382 1 PIPE FROM UNDERFLOOR PIPE TO SHIELD -Not for USA and CDN- -Valid till stock exhaustion- $49.19
28 257295 1 PIPE FROM UNDERFLOOR PIPE TO SHIELD -Valid for USA and CDN- -Applicable after depletion of 244382 not for USA and CDN versions- $83.66
29 214412 4 STUD $12.79
30 11194374 4 WASHER Unavailable
31 237260 1 Fuel pump $1,333.61
32 237262 1 FUEL PUMP FILTER Superseded
33 82128500 1 PROTECTION $6.68
34 16285127 2 SCREW Superseded

* Quantity shown indicates the number of pieces used in the diagram.
