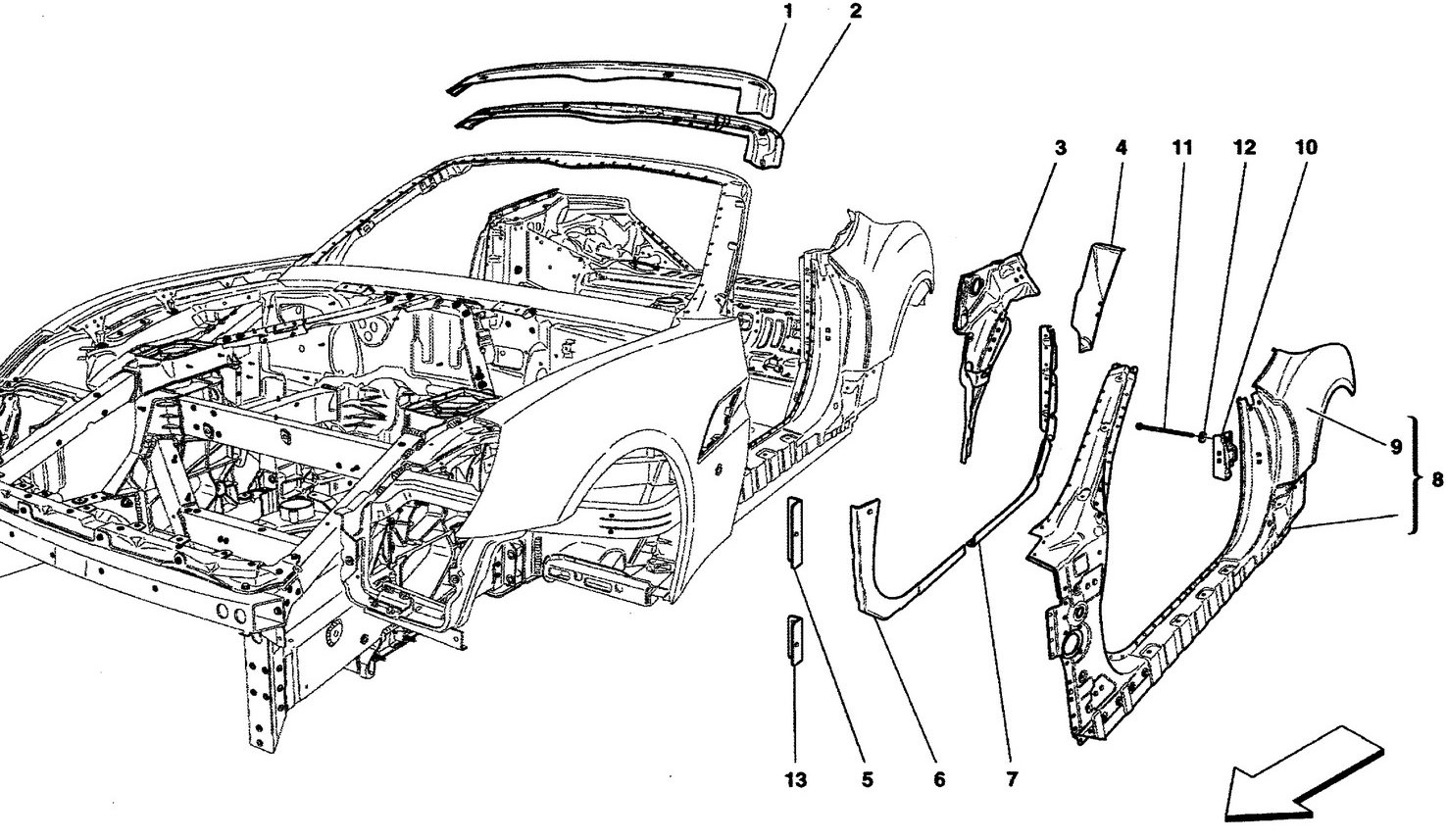

BODYWORK AND CENTRAL OUTER TRIM PANELS

Go to Split View

BODYWORK AND CENTRAL OUTER TRIM PANELS

Location Part # Quantity* Description Price Add To Cart
1 81436811 1 COMPLETE WINDSHIELD UPPER CROSS MEMBER $238.06
2 69874511 1 COMPLETE UPPER CROSS MEMBER REINFORCEMENT $886.07
3 69923511 1 COMPLETE REAR L.H. GLASS LIFT SUPPORT $370.31
3 69923411 1 COMPLETE REAR R.H. GLASS LIFT SUPPORT $370.31
4 69840211 1 LH. WHEELHOUSE REAR INNER SEAL PANEL $148.21
4 80864111 1 R.H. WHEELHOUSE REAR INNER SEAL PANEL $110.19
5 69980311 2 PILLAR FRONT FLANGE $83.07
6 69981311 1 L.H. PILLAR REAR FLANGE $289.09
6 69981211 1 R.H. PILLAR REAR FLANGE $145.47
7 69819111 1 L.H. PILLAR GASKET SUPPORT $330.63
7 69819011 1 R.H. PILLAR GASKET SUPPORT $330.63
8 81962711 1 COMPLETE L.H. LATERAL PANEL $13,109.46
8 81962911 1 COMPLETE R.H. LATERAL PANEL $13,109.46
9 81963011 1 COMPLETE L.H. LATERAL OUTER COVER $15,802.51
9 81963111 1 COMPLETE R.H. LATERAL OUTER COVER $16,773.95
10 69874311 1 COMPLETE L.H. STRIKER FIXING $160.92
10 69874211 1 COMPLETE R.H. STRIKER FIXING $84.22
11 80415900 4 SCREW $18.94
12 80416000 4 WASHER $1.93
13 69980211 1 L.H SEAL FRONT FENDER PLATE BRACKET $145.23

* Quantity shown indicates the number of pieces used in the diagram.
