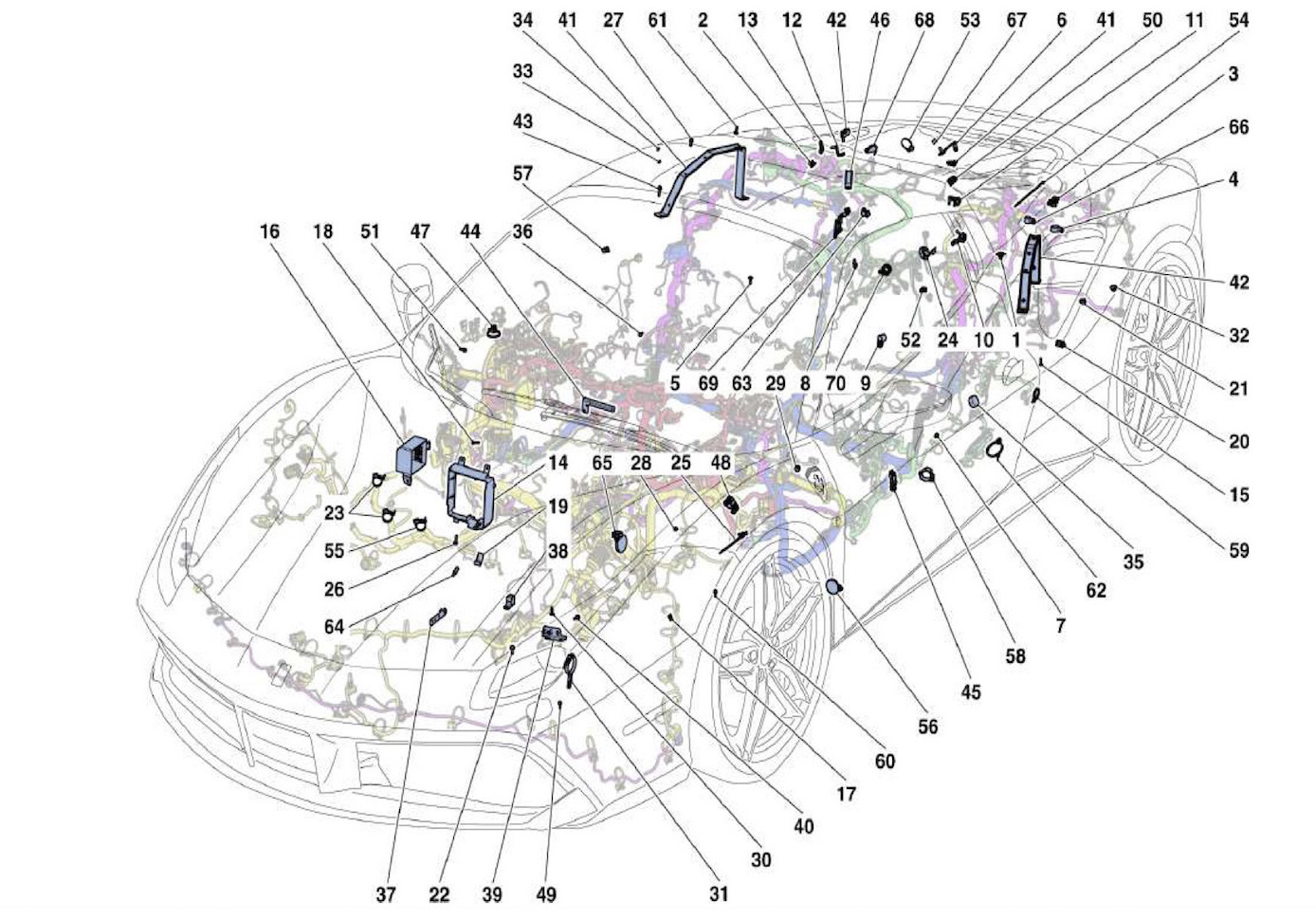

WIRING – FASTERNERS AND CLIPS

Location Part # Quantity* Description Price Add To Cart
1 253769 2 CLIP Unavailable
2 252473 2 CLIP $2.03
3 191904 2 CLIP Unavailable
4 149773 1 CLIP Unavailable
5 85629300 2 SCREW 6X20-M6 X 20- Unavailable
6 307852 1 CABLE MOUNTING BRACKET $24.24
7 233600 2 SCREW 6X12-M6 X 12- Unavailable
8 262530 1 CLIP Unavailable
9 244221 1 CLIP $5.24
10 314110 1 ANCILLARY CABLE FASTENER BRACKET $28.72
11 318365 1 INJECTION CABLE FASTENER BRACKET COMPLETE $24.24
12 318174 1 INJECTION CABLE FASTENER BRACKET $21.54
13 244216 1 CLIP $4.93
14 86174000 1 SCM SURROUND $14.35
15 85692300 2 SCREW 5X20-M5 X 20- Unavailable
16 256613 1 MAXI RELAY MOUNTING LHD-NOT FOR GD- $19.85
16 82784000 1 MAXI RELAY MOUNTING RHD-APPLICABLE FOR GD- $9.48
17 67278400 1 BRACKET Unavailable
18 169815 2 SCREW 5X20-M5 X 20- Unavailable
19 263561 1 SPONGE $1.32
20 303365 2 CLIP $1.43
21 14569880 4 CLIP 14.5X3 Unavailable
22 16287024 1 SCREW 8X16-M8 X 16- Unavailable
23 145854 2 RING CLAMP 200MM Unavailable
24 322840 1 ANCILLARIES CABLE FASTENER BRACKET COMPLETE $32.50
25 303339 4 LONG SHANK CLIP Unavailable
26 16286124 3 SCREW 6X20-M6 X 20- Unavailable
27 231617 2 SCREW 6X18-M6 X 18- Unavailable
28 12642821 2 WASHER Unavailable
29 12578211 1 NUT Unavailable
30 216847 2 CLIP $2.54
31 231214 2 CLIP $1.64
32 14040514 2 NUT Unavailable
33 14084111 1 NUT Unavailable
34 149951 1 WASHER Superseded
35 83263300 1 EXTERNAL DOOR WINDOW RETAINER $1.86
36 16285124 1 SCREW 5X16-M5 X 16- Unavailable
37 277002 1 BRACKET LHD-UP TO ASS.LY NO. 132709, APPLICABLE FOR HELE- -FROM ASS.LY NO. 132710, APPLICABLE FOR ALL VERSIONS- -NOT FOR GD- $20.08
38 246915 1 CLIP Unavailable
39 322712 1 BRACKET LHD-NOT FOR GD- $18.84
39 325184 1 BRACKET RHD-APPLICABLE FOR GD- $23.35
40 16286127 2 SCREW 6X20-M6 X 20- Unavailable
41 323247 1 INJECTION CABLE FASTENER BRACKET $23.35
42 323248 1 INJECTION CABLE FASTENER BRACKET $23.35
43 231620 4 SCREW 6X25-M6 X 25- Unavailable
44 312615 1 TANK WIRING HARNESS PROTECTION BRACKET $13.64
45 284622 1 CLIP Unavailable
46 10451090 1 BRACKET P CLIP $1.46
47 69708300 2 CLIP $1.56
48 248061 1 CLIP $2.56
49 231616 17 SCREW 6X14-M6 X 14- Unavailable
50 244218 8 CLIP $5.01
51 248334 7 SCREW 6X16-M6 X 16- $0.90
52 244219 3 CLIP $5.18
53 69850100 2 CLIP $1.10
54 145854 68 RING CLAMP 200MM Unavailable
55 279762 32 CLAMP Unavailable
56 217854 44 CLIP 170MM Unavailable
57 266000 4 CLIP $1.08
58 254078 4 CLIP- A.RAYMOND 017790 $2.07
59 10815787 24 CLAMP Unavailable
60 16281827 4 SCREW 5X14-M5 X 14- Unavailable
61 11625824 6 SCREW 6X18-M6 X 18- Unavailable
62 318547 4 RING CLAMP $2.33
63 260064 4 CLIP Unavailable
64 212519 2 STUD BOLT $7.61
65 242384 4 CLIP Unavailable
66 244223 2 CLIP $5.56
67 228265 1 NUT 6X1X9 Unavailable
68 323246 1 INJECTION CABLE FASTENER BRACKET $19.73
69 322913 1 INJECTION CABLE FASTENER BRACKET $35.91
70 10442190 1 BRACKET WITH SHEATH Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
