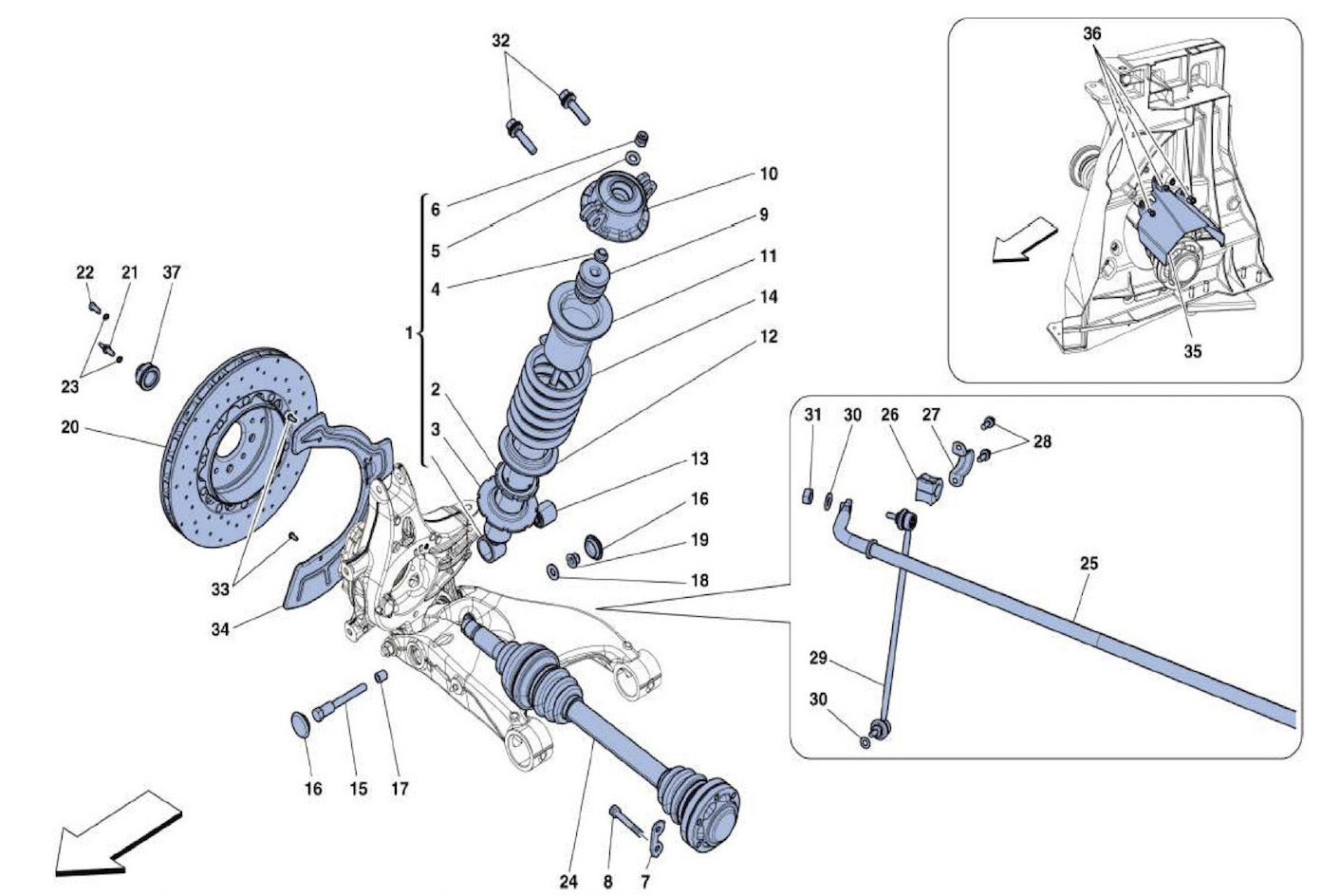

REAR SUSPENSION – SHOCKS ABSORBER AND BRAKE DISC

Location Part # Quantity* Description Price Add To Cart
1 317751 2 REAR SHOCK ABSORBER $2,053.32
2 220351 2 RING NUT $62.10
3 286402 2 SPRING RETAINER $189.78
4 220383 2 BUSH $46.57
5 220377 2 WASHER D.12,1 - 24 X 3 $10.33
6 220378 2 NUT $6.37
7 220325 6 SHIM PLATE $5.16
8 237590 12 SCREW 10X1.25X50 $6.37
9 281221 2 ENDSTOP BUSH $43.12
10 250394 2 STOP CAP $293.31
11 212517 2 UPPER SPACER $12.75
12 188996 2 LOWER SPRING SPACER $16.54
13 157630 2 SHOCK ABSORBER BUSHING $127.67
14 309953 2 SHOCK ABSORBER SPRING $207.04
15 246962 2 SPECIAL SCREW 12X1.25 $41.09
16 14507987 6 PLUG $6.50
17 237821 2 BUSHING 18X15 $6.37
18 12646921 2 WASHER $0.90
19 255271 2 NUT $1.81
20 319166 2 REAR BRAKE DISC 360X32 $4,942.73
21 104370 2 STUD FOR WHEEL ALIGNMENT Unavailable
22 228131 2 SCREW 8X20 Unavailable
23 228132 4 WASHER Unavailable
24 220340 2 AXLE SHAFT $1,225.08
25 289880 1 STABILISER BAR $483.12
26 240824 2 PLUG $22.41
27 244778 2 PAD FASTENING PLATE $25.86
28 264117 4 SCREW $3.19
29 250453 1 RH BALL JOINT TIE-ROD $144.92
29 250452 1 LH BALL JOINT TIE-ROD $144.92
30 12601474 4 WAVY WASHER 10MM Unavailable
31 12164714 2 NUT $0.90
32 248790 4 SCREW 12X1.25X50 $5.32
33 250657 6 SCREW 6X14 $8.30
34 257424 1 RH DISC SHIELD $67.27
34 257423 1 LH DISC SHIELD $67.27
35 250811 2 SHIELD $26.45
36 11568027 6 SCREW 6X18 $2.11
37 203780 2 HUB NUT $30.43

* Quantity shown indicates the number of pieces used in the diagram.
