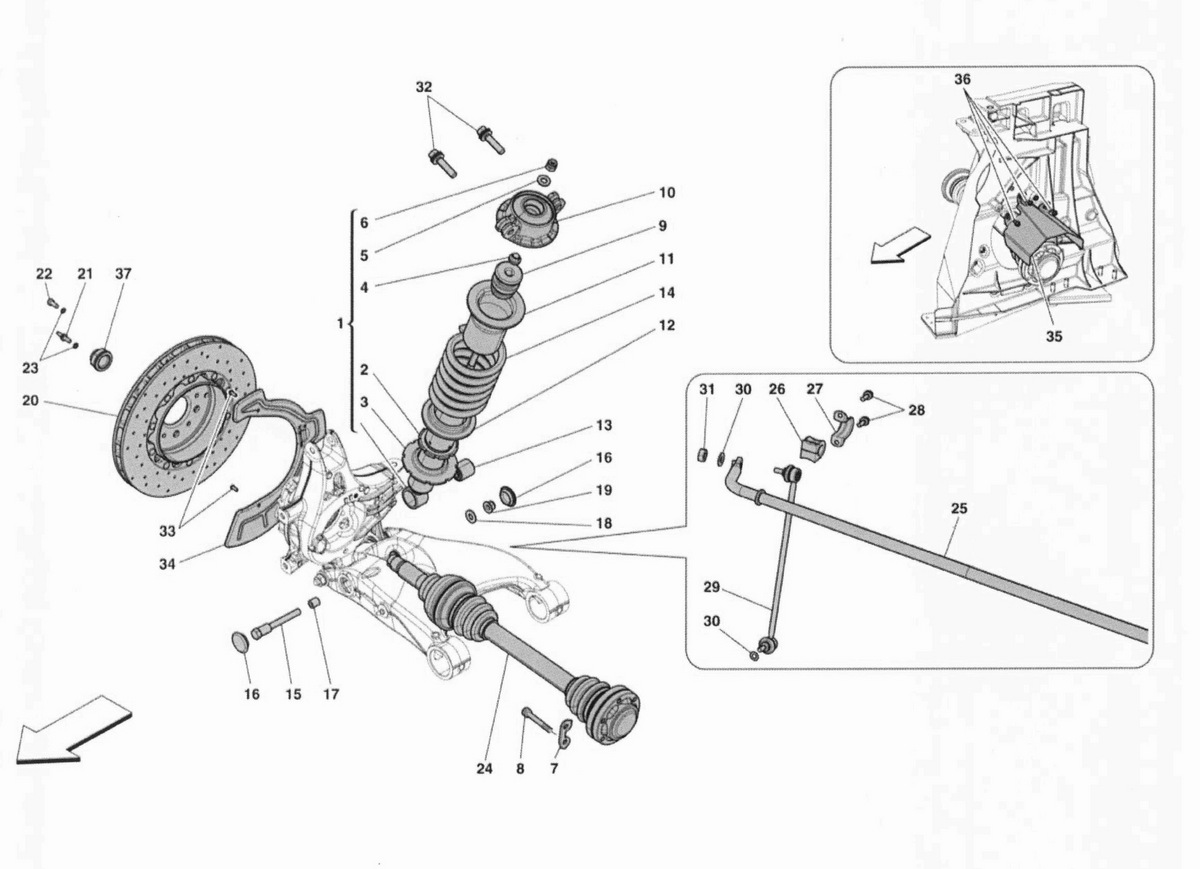

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 289729 *Qty: 2 AMMORTIZZATORE POSTERIORE Call
Location: 2 Prev | Next Part: 220351 *Qty: 2 GHIERA FILETTATA $49.80
Location: 3 Prev | Next Part: 286402 *Qty: 2 PIATTELLO Call
Location: 4 Prev | Next Part: 220383 *Qty: 2 BOCCOLA $18.45
Location: 5 Prev | Next Part: 220377 *Qty: 2 WASHER $9.99
Location: 6 Prev | Next Part: 220378 *Qty: 2 NUT $2.24
Location: 7 Prev | Next Part: 220325 *Qty: 6 PIASTRINA RASAMENTO $4.20
Location: 8 Prev | Next Part: 237590 *Qty: 12 SCREW $5.19
Location: 9 Prev | Next Part: 281221 *Qty: 2 BUFFER FINE CORSA $33.65
Location: 10 Prev | Next Part: 250394 *Qty: 2 SCODELLINO $238.98
Location: 11 Prev | Next Part: 212517 *Qty: 2 DISTANZIALE UPPER $10.47
Location: 12 Prev | Next Part: 188996 *Qty: 2 DISTANZIALELOWER $13.58
Location: 13 Prev | Next Part: 157630 *Qty: 2 SNODO SFERICO $72.50
Location: 14 Prev | Next Part: 302531 *Qty: 2 MOLLA AMMORTIZZATORE Call
Location: 15 Prev | Next Part: 246962 *Qty: 2 SCREW $34.91
Location: 16 Prev | Next Part: 14507987 *Qty: 6 TAPPO $6.50
Location: 17 Prev | Next Part: 237821 *Qty: 2 BOCCOLA $5.56
Location: 18 Prev | Next Part: 12646921 *Qty: 2 WASHER $0.90
Location: 19 Prev | Next Part: 255271 *Qty: 2 NUT $1.57
Location: 20 Prev | Next Part: 294970 *Qty: 2 DISCO FRENO Call
Location: 21 Prev | Next Part: 104370 *Qty: 2 SCREW $0.90
Location: 22 Prev | Next Part: 228131 *Qty: 2 SCREW $0.90
Location: 23 Prev | Next Part: 228132 *Qty: 4 RONDELLA $0.90
Location: 24 Prev | Next Part: 220340 *Qty: 2 SEMIASSE $1,154.10
Location: 25 Prev | Next Part: 289880 *Qty: 1 BARRA STABILIZZATRICE Call
Location: 26 Prev | Next Part: 240824 *Qty: 2 BUFFER Call
Location: 27 Prev | Next Part: 244778 *Qty: 2 PIASTRA $20.57
Location: 28 Prev | Next Part: 264117 *Qty: 4 SCREW $3.06
Location: 29 Prev | Next Part: 250453 *Qty: 1 TIRANTE SFERICO DX. $120.34
Location: 29 Prev | Next Part: 250452 *Qty: 1 TIRANTE SFERICO SX. $120.34
Location: 30 Prev | Next Part: 12601474 *Qty: 4 WASHER $0.90
Location: 31 Prev | Next Part: 12164714 *Qty: 2 NUT $0.90
Location: 32 Prev | Next Part: 248790 *Qty: 4 SCREW $4.55
Location: 33 Prev | Next Part: 250657 *Qty: 6 SCREW $7.13
Location: 34 Prev | Next Part: 257424 *Qty: 1 RIPARO DISCO DX. $55.22
Location: 34 Prev | Next Part: 257423 *Qty: 1 RIPARO DISCO SX. $55.22
Location: 35 Prev | Next Part: 250811 *Qty: 2 PARATIA $25.43
Location: 36 Prev | Next Part: 11568027 *Qty: 6 SCREW $1.71
Location: 37 Prev | Next Part: 203780 *Qty: 2 NUT $24.95

* Quantity shown indicates the number of pieces used in the diagram.
