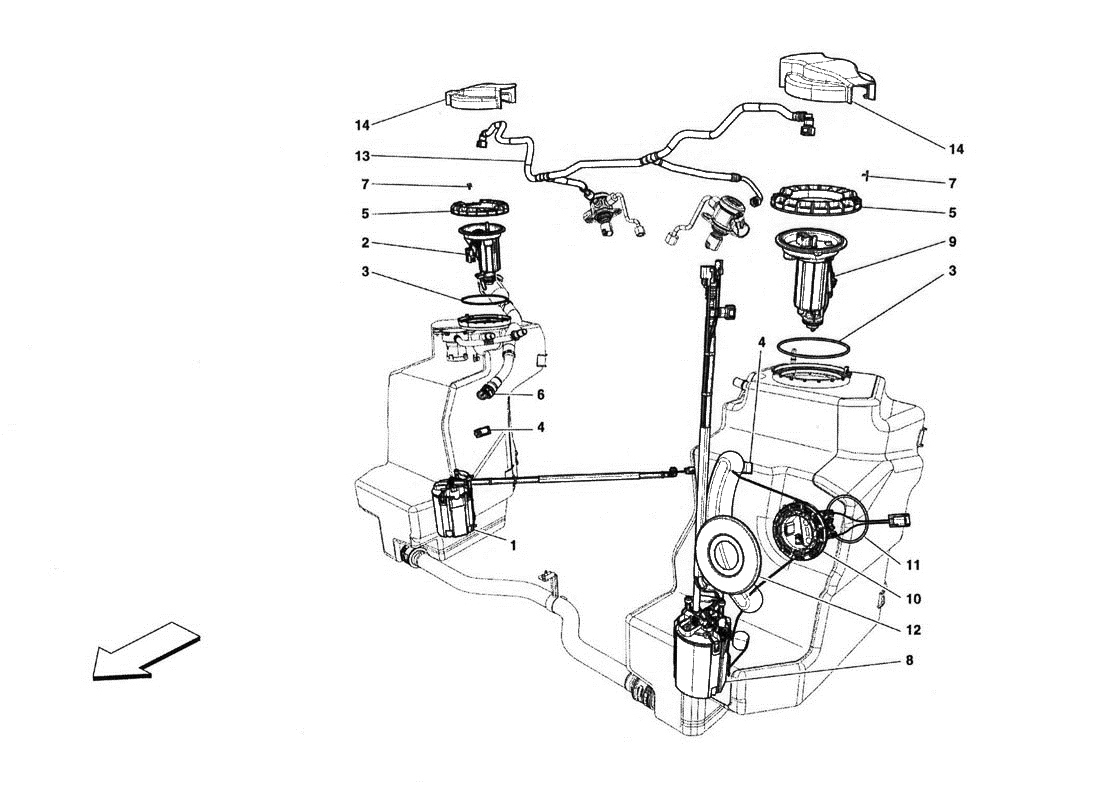

FUEL PUMPS AND PIPES

Go to Split View

FUEL PUMPS AND PIPES

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 254312 *Qty: 1 RH FUEL PUMP $949.73
Location: 2 Prev | Next Part: 253600 *Qty: 1 RH FUEL PUMP FILTER $502.23
Location: 3 Prev | Next Part: 275314 *Qty: 2 GASKET $7.92
Location: 4 Prev | Next Part: 254078 *Qty: 2 CLIP $1.98
Location: 5 Prev | Next Part: 239497 *Qty: 2 RING NUT $32.27
Location: 6 Prev | Next Part: 237407 *Qty: 1 ANTI SPIT-BACK VALVE $30.77
Location: 7 Prev | Next Part: 239456 *Qty: 2 SECONDARY LOCK $2.93
Location: 8 Prev | Next Part: 254313 *Qty: 1 LH FUEL PUMP $1,030.18
Location: 9 Prev | Next Part: 253597 *Qty: 1 LH FUEL PUMP FILTER $323.45
Location: 10 Prev | Next Part: 254314 *Qty: 1 LEVEL SENSOR $899.38
Location: 11 Prev | Next Part: 239413 *Qty: 1 GASKET $5.85
Location: 12 Prev | Next Part: 250480 *Qty: 1 INSPECTION CAP $26.18
Location: 13 Prev | Next Part: 261154 *Qty: 1 DELIVERY PIPE Call
Location: 14 Prev | Next Part: 264802 *Qty: 2 COVER $31.77

* Quantity shown indicates the number of pieces used in the diagram.
