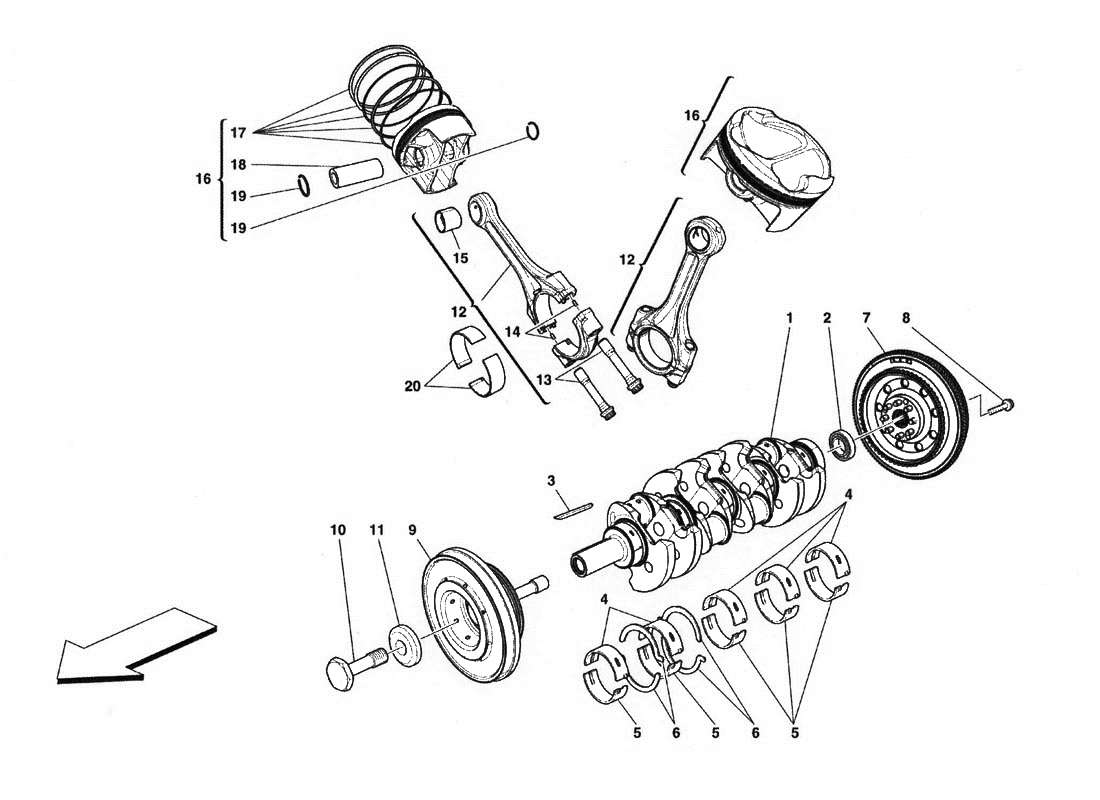

DRIVING SHAFT - CONNECTING RODS AND PISTONS

Go to Split View

DRIVING SHAFT - CONNECTING RODS AND PISTONS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 252924 *Qty: 1 CRANKSHAFT Superseded
Location: 2 Prev | Next Part: 103877 *Qty: 1 BEARING $29.75
Location: 3 Prev | Next Part: 186201 *Qty: 1 CRANKSHAFT TAB $1.08
Location: 4 Prev | Next Part: 195307 *Qty: 5 UPPER HALF-BEARING -Blue- Superseded
Location: 4 Prev | Next Part: 195308 *Qty: 5 UPPER HALF-BEARING -Yellow- $85.69
Location: 4 Prev | Next Part: 198910 *Qty: 5 UPPER HALF-BEARING -Green- $27.35
Location: 5 Prev | Next Part: 200194 *Qty: 5 LOWER HALF-BEARING -Blue- Superseded
Location: 5 Prev | Next Part: 200195 *Qty: 5 LOWER HALF-BEARING -Yellow- $23.90
Location: 5 Prev | Next Part: 200196 *Qty: 5 LOWER HALF-BEARING -Green- $27.80
Location: 6 Prev | Next Part: 222874 *Qty: 4 CRANKSHAFT BEARING SHIM $29.23
Location: 7 Prev | Next Part: 256341 *Qty: 1 ENGINE FLYWHEEL $3,022.11
Location: 8 Prev | Next Part: 229907 *Qty: 8 FASTENER SCREW $10.52
Location: 9 Prev | Next Part: 264111 *Qty: 1 TORSION DAMPER $2,680.75
Location: 10 Prev | Next Part: 196216 *Qty: 1 TORSION DAMPER FASTENER SCREW $83.37
Location: 11 Prev | Next Part: 192106 *Qty: 1 WASHER $6.55
Location: 12 Prev | Next Part: 256361 *Qty: 8 COMPL. CONNECTING ROD AND CAP $257.15
Location: 13 Prev | Next Part: 254807 *Qty: 16 SCREW Unavailable
Location: 14 Prev | Next Part: 224608 *Qty: 16 ALIGNMENT PIN $3.28
Location: 15 Prev | Next Part: 234871 *Qty: 8 BUSHING $16.53
Location: 16 Prev | Next Part: 260683 *Qty: 4 PISTON COMPL. WITH RINGS. RH CYLINDER BANK $1,117.61
Location: 16 Prev | Next Part: 260684 *Qty: 4 PISTON COMPL. WITH RINGS. LH CYLINDER BANK $1,117.61
Location: 17 Prev | Next Part: 263328 *Qty: 8 COMPL. PISTON RING SET $209.08
Location: 18 Prev | Next Part: 198260 *Qty: 8 GUDGEON PIN $73.73
Location: 19 Prev | Next Part: 257919 *Qty: 16 RETAINER RING $8.80
Location: 20 Prev | Next Part: 244416 *Qty: 16 CONNECTING ROD HALF-BEARING -Red- $23.12
Location: 20 Prev | Next Part: 244417 *Qty: 16 CONNECTING ROD HALF-BEARING -Blue- $23.12
Location: 20 Prev | Next Part: 244418 *Qty: 16 CONNECTING ROD HALF-BEARING -Black- $23.12

* Quantity shown indicates the number of pieces used in the diagram.
