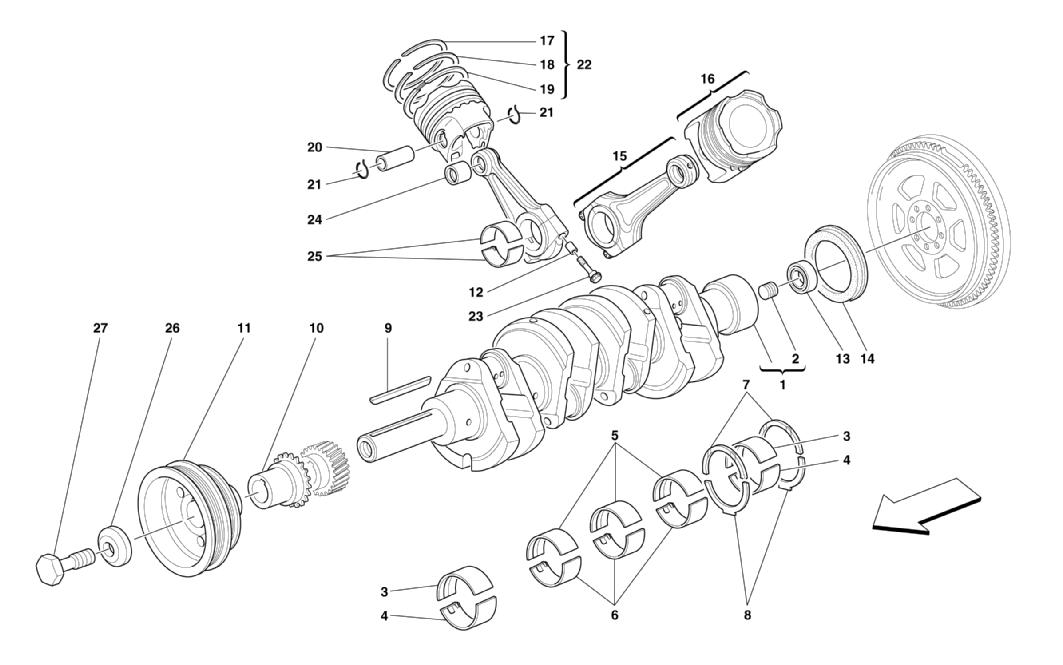

DRIVING SHAFT - CONNECTING RODS AND PISTONS

DRIVING SHAFT - CONNECTING RODS AND PISTONS

Location Part # Quantity* Description Price Add To Cart
- 180695 1 HALF-BEARINGS COMPLETE SERIES -1st OVERSIZE mm. 0,254 $1,574.55
- 180694 1 HALF-BEARINGS COMPLETE SERIES -STANDARD SIZE $371.19
- 180696 1 HALF-BEARINGS COMPLETE SERIES -2nd OVERSIZE mm. 0,508 $2,189.56
1 178481 1 CRANKSHAFT $10,730.13
2 176396 1 THREADED PLUG $6.41
3 173560 0 FRONT AND REAR UPPER HALF BEARING OVERSIZE -2nd OVERSIZE mm. 0,508 -Not as spare part -With th Unavailable
3 173559 0 FRONT AND REAR UPPER HALF BEARING OVERSIZE -1st OVERSIZE mm. 0,254 -Not as spare part -With th Unavailable
3 173558 2 FRONT AND REAR UPPER HALF BEARING -Not as spare part -With the half-bearings complete series $18.23
4 173555 0 FRONT AND REAR LOWER HALF BEARING OVERSIZE -1st OVERSIZE mm. 0,254 -Not as spare part -With th Unavailable
4 173556 0 FRONT AND REAR LOWER HALF BEARING OVERSIZE -2nd OVERSIZE mm. 0,508 -Not as spare part -With th Unavailable
4 173554 2 FRONT AND REAR LOWER HALF BEARING -Not as spare part -With the half-bearings complete series $27.22
5 173562 3 UPPER INTERMEDIATE HALF BEARING -Not as spare part -With the half-bearings complete series Unavailable
5 173564 0 UPPER INTEMEDIATE HALF BEARING OVERSIZE -2nd OVERSIZE mm. 0,508 -Not as spare part -With the Unavailable
5 173563 0 UPPER INTERMEDIATE HALF BEARING OVERSIZE -1st OVERSIZE mm. 0,254 -Not as spare part -With the Unavailable
6 173566 3 INTERMEDIATE LOWER HALF BEARING -Not as spare part -With the half-bearings complete series $23.89
6 173567 0 INTERMEDIATE LOWER HALF BEARING OVERSIZE -1st OVERSIZE mm. 0,254 -Not as spare part -With the Unavailable
6 173568 0 INTERMEDIATE LOWER HALF BEARING OVERSIZE -2nd OVERSIZE mm. 0,508 -Not as spare part -With the Unavailable
7 164113 0 UPPER SHIM 2nd OVERSIZE mm. 0,254 -Not as spare part -With the half-bearings complete series Unavailable
7 164112 0 UPPER SHIM 1st OVERSIZE mm. 0,127 -Not as spare part -With the half-bearings complete series Unavailable
7 164111 2 UPPER SHIM -Not as spare part -With the half-bearings complete series $138.04
8 164109 0 LOWER SHIM 1st OVERSIZE mm. 0,127 -Not as spare part -With the half-bearings complete series Unavailable
8 164110 0 LOWER SHIM 2nd OVERSIZE mm. 0,254 -Not as spare part -With the half-bearings complete series Unavailable
8 164108 2 LOWER SHIM -Not as spare part -With the half-bearings complete series $138.04
9 151289 1 KEY $4.49
10 176643 1 OIL PUMP CONTROL GEAR $72.17
11 178738 1 DRIVING SHAFT PULLEY Unavailable
12 177390 16 BUSHING $115.32
13 103877 1 BEARING $39.95
14 200323 1 SEAL RING $50.12
15 212652 8 COMPLETE CONNECTING ROD AND CAP Unavailable
15 196976 8 COMPLETE CONNECTING ROD AND CAP -Not as spare part -Replaced by 212652 Unavailable
16 179510 8 PISTON WITH RINGS Unavailable
17 160813 8 AC SEAL RING (1st groove) -Not as spare part -With the pistons rings set Unavailable
18 152991 8 AC SEAL RING (2nd groove) -Not as spare part -With the pistons rings set Unavailable
19 132773 8 ROF OIL SCRAPING RING (3rd groove) -Not as spare part -With the pistons rings set Unavailable
20 154717 8 PIN $39.77
21 166901 16 STOP RING $8.10
22 164026 8 PISTONS RINGS SET $406.57
23 177159 16 CONNECTING ROD TIGHTENING SCREW $52.90
24 174701 8 BUSHING $15.08
25 173550 16 CONNECTING ROD HALF BEARING -Not as spare part -Replaced by 193622 $17.30
25 173551 16 CONNECTING ROD HALF BEARING 1st OVERSIZE mm. 0,254 $76.94
25 173552 16 CONNECTING ROD HALF BEARING 2nd OVERSIZE mm. 0,508 $87.92
25 193622 16 CONNECTING ROD HALF BEARING $56.19
26 138792 1 WASHER $5.95
27 176583 1 SCREW $39.71

* Quantity shown indicates the number of pieces used in the diagram.
