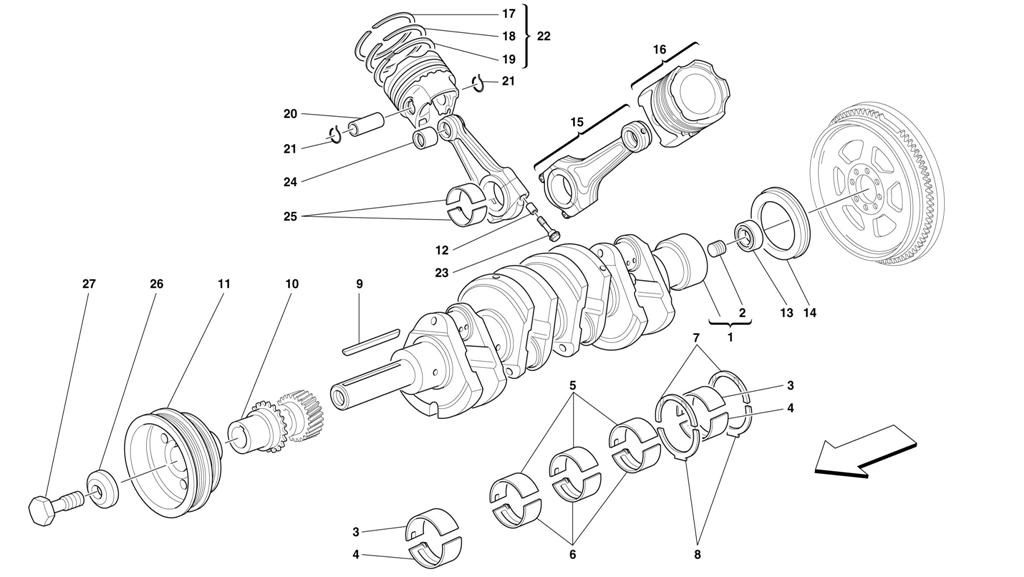

DRIVING SHAFT - CONNECTING RODS AND PISTONS

Go to Split View

DRIVING SHAFT - CONNECTING RODS AND PISTONS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 180694 *Qty: 1 HALF-BEARINGS COMPLETE SERIES -STANDARD SIZE $356.76
Location: - Prev | Next Part: 180695 *Qty: 1 HALF-BEARINGS COMPLETE SERIES -1st OVERSIZE mm. 0,254 $1,276.13
Location: - Prev | Next Part: 180696 *Qty: 1 HALF-BEARINGS COMPLETE SERIES -2nd OVERSIZE mm. 0,508 $2,104.54
Location: 1 Prev | Next Part: 178481 *Qty: 1 CRANKSHAFT $10,313.46
Location: 2 Prev | Next Part: 176396 *Qty: 1 THREADED PLUG $5.86
Location: 3 Prev | Next Part: 173558 *Qty: 2 FRONT AND REAR UPPER HALF BEARING -Not as spare part -With the half-bearings complete series $17.51
Location: 3 Prev | Next Part: 173559 *Qty: 0 FRONT AND REAR UPPER HALF BEARING OVERSIZE -1st OVERSIZE mm. 0,254 -Not as spare part -With the Call
Location: 3 Prev | Next Part: 173560 *Qty: 0 FRONT AND REAR UPPER HALF BEARING OVERSIZE -2nd OVERSIZE mm. 0,508 -Not as spare part -With the Call
Location: 4 Prev | Next Part: 173556 *Qty: 0 FRONT AND REAR LOWER HALF BEARING OVERSIZE -2nd OVERSIZE mm. 0,508 -Not as spare part -With the Call
Location: 4 Prev | Next Part: 173554 *Qty: 2 FRONT AND REAR LOWER HALF BEARING -Not as spare part -With the half-bearings complete series $26.18
Location: 4 Prev | Next Part: 173555 *Qty: 0 FRONT AND REAR LOWER HALF BEARING OVERSIZE -1st OVERSIZE mm. 0,254 -Not as spare part -With the Call
Location: 5 Prev | Next Part: 173562 *Qty: 3 UPPER INTERMEDIATE HALF BEARING -Not as spare part -With the half-bearings complete series $21.26
Location: 5 Prev | Next Part: 173563 *Qty: 0 UPPER INTERMEDIATE HALF BEARING OVERSIZE -1st OVERSIZE mm. 0,254 -Not as spare part -With the ha Call
Location: 5 Prev | Next Part: 173564 *Qty: 0 UPPER INTEMEDIATE HALF BEARING OVERSIZE -2nd OVERSIZE mm. 0,508 -Not as spare part -With the ha Call
Location: 6 Prev | Next Part: 173566 *Qty: 3 INTERMEDIATE LOWER HALF BEARING -Not as spare part -With the half-bearings complete series $22.97
Location: 6 Prev | Next Part: 173567 *Qty: 0 INTERMEDIATE LOWER HALF BEARING OVERSIZE -1st OVERSIZE mm. 0,254 -Not as spare part -With the ha Call
Location: 6 Prev | Next Part: 173568 *Qty: 0 INTERMEDIATE LOWER HALF BEARING OVERSIZE -2nd OVERSIZE mm. 0,508 -Not as spare part -With the h Call
Location: 7 Prev | Next Part: 164111 *Qty: 2 UPPER SHIM -Not as spare part -With the half-bearings complete series $15.72
Location: 7 Prev | Next Part: 164112 *Qty: 0 UPPER SHIM 1st OVERSIZE mm. 0,127 -Not as spare part -With the half-bearings complete series Call
Location: 7 Prev | Next Part: 164113 *Qty: 0 UPPER SHIM 2nd OVERSIZE mm. 0,254 -Not as spare part -With the half-bearings complete series Call
Location: 8 Prev | Next Part: 164108 *Qty: 2 LOWER SHIM -Not as spare part -With the half-bearings complete series $15.72
Location: 8 Prev | Next Part: 164109 *Qty: 0 LOWER SHIM 1st OVERSIZE mm. 0,127 -Not as spare part -With the half-bearings complete series Call
Location: 8 Prev | Next Part: 164110 *Qty: 0 LOWER SHIM 2nd OVERSIZE mm. 0,254 -Not as spare part -With the half-bearings complete series Call
Location: 9 Prev | Next Part: 151289 *Qty: 1 KEY $4.11
Location: 10 Prev | Next Part: 176643 *Qty: 1 OIL PUMP CONTROL GEAR $66.05
Location: 11 Prev | Next Part: 178738 *Qty: 1 DRIVING SHAFT PULLEY $208.29
Location: 12 Prev | Next Part: 177390 *Qty: 16 BUSHING $70.89
Location: 13 Prev | Next Part: 103877 *Qty: 1 BEARING $29.17
Location: 14 Prev | Next Part: 200323 *Qty: 1 SEAL RING $32.99
Location: 15 Prev | Next Part: 212652 *Qty: 8 COMPLETE CONNECTING ROD AND CAP $493.62
Location: 16 Prev | Next Part: 179510 *Qty: 8 PISTON WITH RINGS Call
Location: 17 Prev | Next Part: 160813 *Qty: 8 AC SEAL RING (1st groove) -Not as spare part -With the pistons rings set Call
Location: 18 Prev | Next Part: 152991 *Qty: 8 AC SEAL RING (2nd groove) -Not as spare part -With the pistons rings set Call
Location: 19 Prev | Next Part: 132773 *Qty: 8 ROF OIL SCRAPING RING (3rd groove) -Not as spare part -With the pistons rings set Call
Location: 20 Prev | Next Part: 154717 *Qty: 8 PIN $38.24
Location: 21 Prev | Next Part: 166901 *Qty: 16 STOP RING $7.41
Location: 22 Prev | Next Part: 164026 *Qty: 8 PISTONS RINGS SET $214.03
Location: 23 Prev | Next Part: 177159 *Qty: 16 CONNECTING ROD TIGHTENING SCREW $48.42
Location: 24 Prev | Next Part: 174701 *Qty: 8 BUSHING $13.80
Location: 25 Prev | Next Part: 173550 *Qty: 16 CONNECTING ROD HALF BEARING $15.82
Location: 25 Prev | Next Part: 173551 *Qty: 16 CONNECTING ROD HALF BEARING 1st OVERSIZE mm. 0,254 $70.43
Location: 25 Prev | Next Part: 173552 *Qty: 16 CONNECTING ROD HALF BEARING 2nd OVERSIZE mm. 0,508 $80.48
Location: 26 Prev | Next Part: 138792 *Qty: 1 WASHER $5.44
Location: 27 Prev | Next Part: 176583 *Qty: 1 SCREW $36.34

* Quantity shown indicates the number of pieces used in the diagram.
