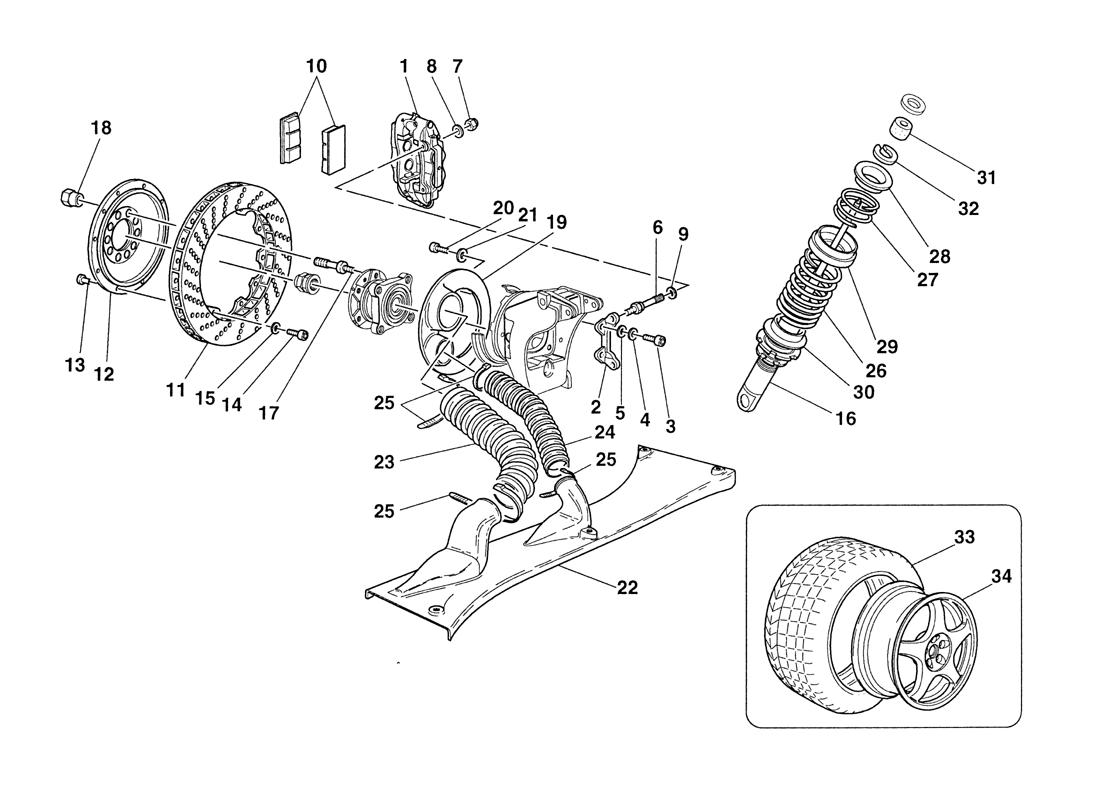

BRAKES - SHOCK-ABSORBERS - REAR AIR INTAKES - WHEELS

Go to Split View

BRAKES - SHOCK-ABSORBERS - REAR AIR INTAKES - WHEELS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 163293 *Qty: 1 Left caliper $1,831.03
Location: 1 Prev | Next Part: 163292 *Qty: 1 Right caliper $2,116.29
Location: 2 Prev | Next Part: 163300 *Qty: 2 Bracket $273.00
Location: 3 Prev | Next Part: 163301 *Qty: 4 Screw $23.90
Location: 4 Prev | Next Part: 106854 *Qty: 4 Split spring washer Superseded
Location: 5 Prev | Next Part: 108576 *Qty: 4 Plane spring washer $1.51
Location: 6 Prev | Next Part: 163295 *Qty: 4 Stud bolt $201.33
Location: 7 Prev | Next Part: 163296 *Qty: 4 Kylock nut $45.37
Location: 8 Prev | Next Part: 108576 *Qty: 4 Plane spring washer $1.51
Location: 9 Prev | Next Part: 108920 *Qty: 6 Thrust washer Superseded
Location: 10 Prev | Next Part: 163297 *Qty: 4 Brake pad $266.60
Location: 11 Prev | Next Part: 163316 *Qty: 2 Brake disc Call
Location: 12 Prev | Next Part: 163344 *Qty: 2 Disc flange $1,205.37
Location: 13 Prev | Next Part: 131784 *Qty: 20 Bush $26.97
Location: 14 Prev | Next Part: 14304374 *Qty: 20 Screw Superseded
Location: 15 Prev | Next Part: 139721 *Qty: 20 Knurled spring washer $7.41
Location: 16 Prev | Next Part: 167107 *Qty: 2 Shock absorber Call
Location: 17 Prev | Next Part: 163299 *Qty: 10 Stud bolt $28.00
Location: 18 Prev | Next Part: 163370 *Qty: 10 Wheel nut Call
Location: 18 Prev | Next Part: 163370R *Qty: 10 Wheel Nut $35.00
Location: 19 Prev | Next Part: 163350 *Qty: 1 Left air intake $893.83
Location: 19 Prev | Next Part: 163349 *Qty: 1 Right air intake Call
Location: 20 Prev | Next Part: 10977524 *Qty: 4 Screw $0.90
Location: 21 Prev | Next Part: 14496324 *Qty: 4 Plane spring washer $3.52
Location: 22 Prev | Next Part: 62976600 *Qty: 1 Left rear undertray $90.60
Location: 22 Prev | Next Part: 62976500 *Qty: 1 Right rear undertray $90.60
Location: 23 Prev | Next Part: 62978400 *Qty: 2 Hose $239.71
Location: 24 Prev | Next Part: 62978300 *Qty: 2 Hose $297.25
Location: 25 Prev | Next Part: 163323 *Qty: 10 Plastic clamp $0.90
Location: 26 Prev | Next Part: 164791 *Qty: 2 Spring $251.37
Location: 26 Prev | Next Part: 164792 *Qty: 2 Spring (alternative on request) $201.07
Location: 27 Prev | Next Part: 164793 *Qty: 2 Static load spring $124.85
Location: 28 Prev | Next Part: 166012 *Qty: 2 Spring upper spacer $102.10
Location: 29 Prev | Next Part: 164794 *Qty: 2 Spring plate $230.03
Location: 30 Prev | Next Part: 166013 *Qty: 2 Spring lower spacer $102.10
Location: 31 Prev | Next Part: 164796 *Qty: 2 Pad $100.92
Location: 32 Prev | Next Part: 166892 *Qty: 2 Spacer. tickness 1 mm
Possible fitting
$23.93
Location: 32 Prev | Next Part: 166891 *Qty: 2 Spacer. tickness 2 mm
Possible fitting
$23.93
Location: 32 Prev | Next Part: 166890 *Qty: 2 Spacer. tickness 3 mm
Possible fitting
$23.93
Location: 32 Prev | Next Part: 166026 *Qty: 2 Stiff spacer. tickness 5 mm $35.20
Location: 33 Prev | Next Part: 166892 *Qty: 2 Rear rain tyre - Pirelli 265/40 ZR 18 $23.93
Location: 33 Prev | Next Part: 166892 *Qty: 2 Rear slick tyre - Pirelli 295/670x18 $23.93
Location: 34 Prev | Next Part: 163365 *Qty: 2 Rear wheel rim Call
Location: 34 Prev | Next Part: - *Qty: 1 Wheel Set
Consisting of 2x Front Rim (163363) & 2x Rear Rim (163365)
Call

* Quantity shown indicates the number of pieces used in the diagram.
