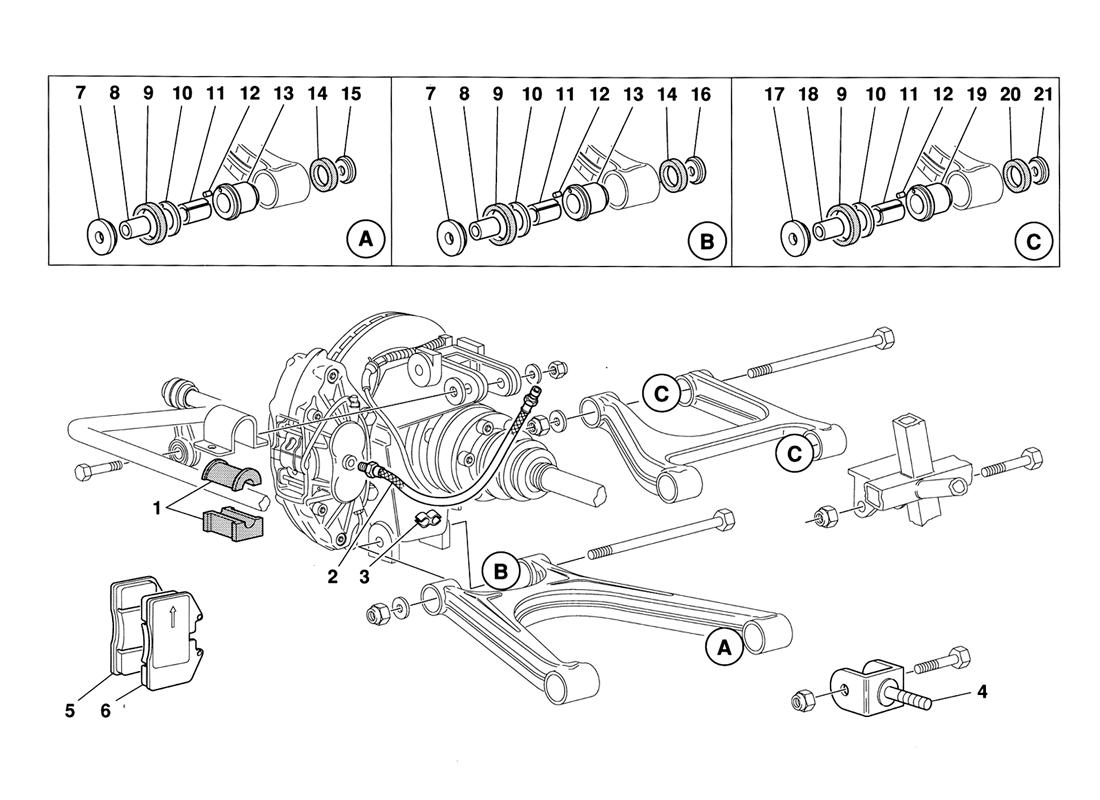

REAR SUSPENSION PADS AND BRAKE PIPES
| Location | Part # | Quantity* | Description | Price | Add To Cart |
|---|---|---|---|---|---|
| - | 70000796 | 2 |
Brake pads kit (on request) |
Unavailable | |
| 1 | 153180 | 1 | Bumper | $205.82 | |
| 2 | 153217 | 2 | Brake pipe | $237.61 | |
| 3 | 124551 | 4 | Spring | $1.68 | |
| 4 | 157318 | 4 | Fork | $237.61 | |
| 5 | 147782 | 4 |
R.H. front and rear pads (With 70000796 kit only) |
Unavailable | |
| 6 | 147783 | 4 |
L.H. front and rear pads (With 70000796 kit only) |
$198.17 | |
| 7 | 148651 | 8 | Thrust washer | $28.44 | |
| 8 | 148730 | 8 | Spacer | $29.90 | |
| 9 | 148729 | 16 | Dust seal | $4.53 | |
| 10 | 101009 | 16 | Thrust washer | $12.53 | |
| 11 | 101010 | 16 | Bush | $7.41 | |
| 12 | 100796 | 16 | Dowel | $5.28 | |
| 13 | 148600 | 8 | Outside bush | $56.49 | |
| 14 | 148650 | 8 | Dust seal | $2.94 | |
| 15 | 148678 | 4 | Thrust washer | $21.17 | |
| 16 | 148607 | 4 | Thrust washer | $19.77 | |
| 17 | 149746 | 8 | Thrust washer | $44.07 | |
| 18 | 150379 | 8 | Spacer | $115.30 | |
| 19 | 149563 | 8 | Outside bush | $113.03 | |
| 20 | 148599 | 8 | Dust seal | $1.66 | |
| 21 | 149564 | 8 | Thrust washer | $25.56 |
* Quantity shown indicates the number of pieces used in the diagram.
