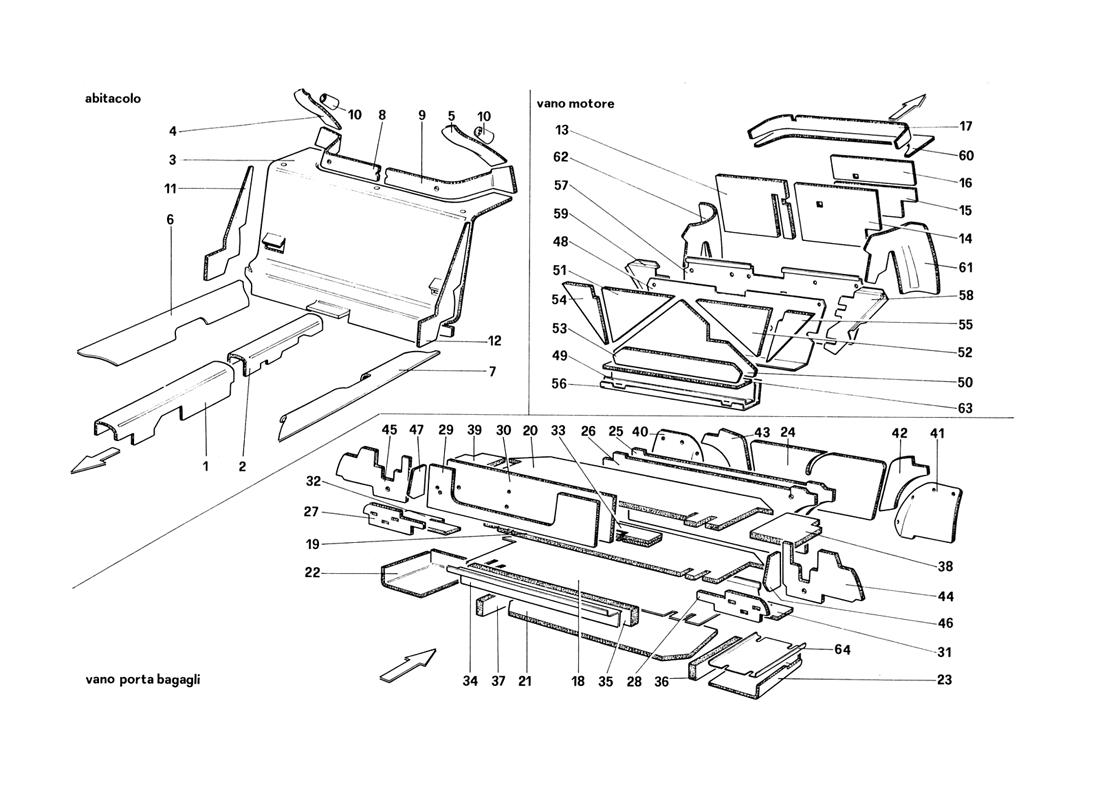

LUGGAGE AND PASSENGER COMPARTMENT INSULATION (FOR CH87 - CH88)

Go to Split View

LUGGAGE AND PASSENGER COMPARTMENT INSULATION (FOR CH87 - CH88)

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60109006 *Qty: 1 Front tunnel insulation $212.70
Location: 2 Prev | Next Part: 61860100 *Qty: 1 Rear tunnel insulation $37.18
Location: 3 Prev | Next Part: 61984200 *Qty: 1 Insulation GTS $521.19
Location: 3 Prev | Next Part: 61986800 *Qty: 1 Insulation GTS - Until 1987 $567.90
Location: 3 Prev | Next Part: 62488100 *Qty: 1 Insulation GTS - From 1988 $680.11
Location: 4 Prev | Next Part: 61984300 *Qty: 1 Insulation $16.37
Location: 5 Prev | Next Part: 61984400 *Qty: 1 Insulation $16.37
Location: 6 Prev | Next Part: 61984500 *Qty: 1 Insulation GTB $63.10
Location: 7 Prev | Next Part: 61984600 *Qty: 1 Insulation GTB $63.10
Location: 8 Prev | Next Part: 61984000 *Qty: 1 Insulation $75.96
Location: 9 Prev | Next Part: 61984100 *Qty: 1 Insulation $75.96
Location: 10 Prev | Next Part: 61985300 *Qty: 2 Insulation $57.51
Location: 11 Prev | Next Part: 61987000 *Qty: 1 Insulation GTS $55.65
Location: 12 Prev | Next Part: 61986900 *Qty: 1 Insulation GTS $55.65
Location: 13 Prev | Next Part: 61985700 *Qty: 1 Insulation $122.46
Location: 14 Prev | Next Part: 61987300 *Qty: 1 Insulation GTS $342.39
Location: 14 Prev | Next Part: 61985900 *Qty: 1 Insulation GTB $76.20
Location: 15 Prev | Next Part: 61984800 *Qty: 1 Insulation GTB $45.79
Location: 16 Prev | Next Part: 61985800 *Qty: 1 Insulation GTB $56.10
Location: 17 Prev | Next Part: 61985200 *Qty: 1 Insulation Unavailable
Location: 18 Prev | Next Part: 61889300 *Qty: 1 Insulation $324.88
Location: 19 Prev | Next Part: 61889400 *Qty: 1 Insulation $258.27
Location: 20 Prev | Next Part: 61889500 *Qty: 1 Insulation $567.90
Location: 21 Prev | Next Part: 61889600 *Qty: 1 Insulation $190.72
Location: 22 Prev | Next Part: 61889700 *Qty: 1 Insulation $47.69
Location: 23 Prev | Next Part: 61889800 *Qty: 1 Insulation C7 $47.69
Location: 23 Prev | Next Part: 62431300 *Qty: 1 Insulation C8 $73.87
Location: 32 Prev | Next Part: 61990800 *Qty: 1 Insulation $703.49
Location: 33 Prev | Next Part: 61890900 *Qty: 1 Insulation $136.95
Location: 34 Prev | Next Part: 61891000 *Qty: 1 Insulation $146.53
Location: 35 Prev | Next Part: 61891100 *Qty: 1 Insulation $61.24
Location: 36 Prev | Next Part: 61891200 *Qty: 1 Insulation $18.93
Location: 37 Prev | Next Part: 61891300 *Qty: 1 Insulation $18.93
Location: 38 Prev | Next Part: 61891400 *Qty: 1 Insulation $46.31
Location: 39 Prev | Next Part: 61891500 *Qty: 1 Insulation $46.31
Location: 40 Prev | Next Part: 61891600 *Qty: 1 Insulation $47.45
Location: 41 Prev | Next Part: 61891700 *Qty: 1 Insulation $47.45
Location: 42 Prev | Next Part: 61894600 *Qty: 1 Insulation $18.22
Location: 43 Prev | Next Part: 61894700 *Qty: 1 Insulation $18.22
Location: 44 Prev | Next Part: 61891800 *Qty: 1 Insulation $36.93
Location: 45 Prev | Next Part: 61891900 *Qty: 1 Insulation $36.93
Location: 46 Prev | Next Part: 61892000 *Qty: 1 Insulation $5.87
Location: 47 Prev | Next Part: 61894900 *Qty: 1 Insulation $8.64
Location: 48 Prev | Next Part: 61892100 *Qty: 1 Insulation $253.58
Location: 49 Prev | Next Part: 61892200 *Qty: 1 Insulation $110.09
Location: 50 Prev | Next Part: 61892300 *Qty: 2 Insulation $65.93
Location: 51 Prev | Next Part: 61892400 *Qty: 1 Insulation $22.69
Location: 52 Prev | Next Part: 61892500 *Qty: 1 Insulation $22.69
Location: 53 Prev | Next Part: 61892600 *Qty: 1 Insulation $28.51
Location: 54 Prev | Next Part: 61892700 *Qty: 1 Insulation $11.46
Location: 55 Prev | Next Part: 61892800 *Qty: 1 Insulation $11.46
Location: 56 Prev | Next Part: 61879300 *Qty: 1 Under shield $32.27
Location: 57 Prev | Next Part: 61879400 *Qty: 1 Central shield C7 $102.84
Location: 57 Prev | Next Part: 62431000 *Qty: 1 Central shield C8 $106.60
Location: 58 Prev | Next Part: 61879500 *Qty: 1 .R.H. shield $47.23
Location: 59 Prev | Next Part: 61879600 *Qty: 1 L.H. shield $33.22
Location: 60 Prev | Next Part: 61985100 *Qty: 1 Insulation GTB $179.26
Location: 60 Prev | Next Part: 61987100 *Qty: 1 Insulation GTS Unavailable
Location: 61 Prev | Next Part: 61278500 *Qty: 1 Insulation $133.45
Location: 62 Prev | Next Part: 61278600 *Qty: 1 Insulation Unavailable
Location: 63 Prev | Next Part: 62349600 *Qty: 1 Insulation $13.36
Location: 64 Prev | Next Part: 62431400 *Qty: 1 Plate C8 $73.87

* Quantity shown indicates the number of pieces used in the diagram.
