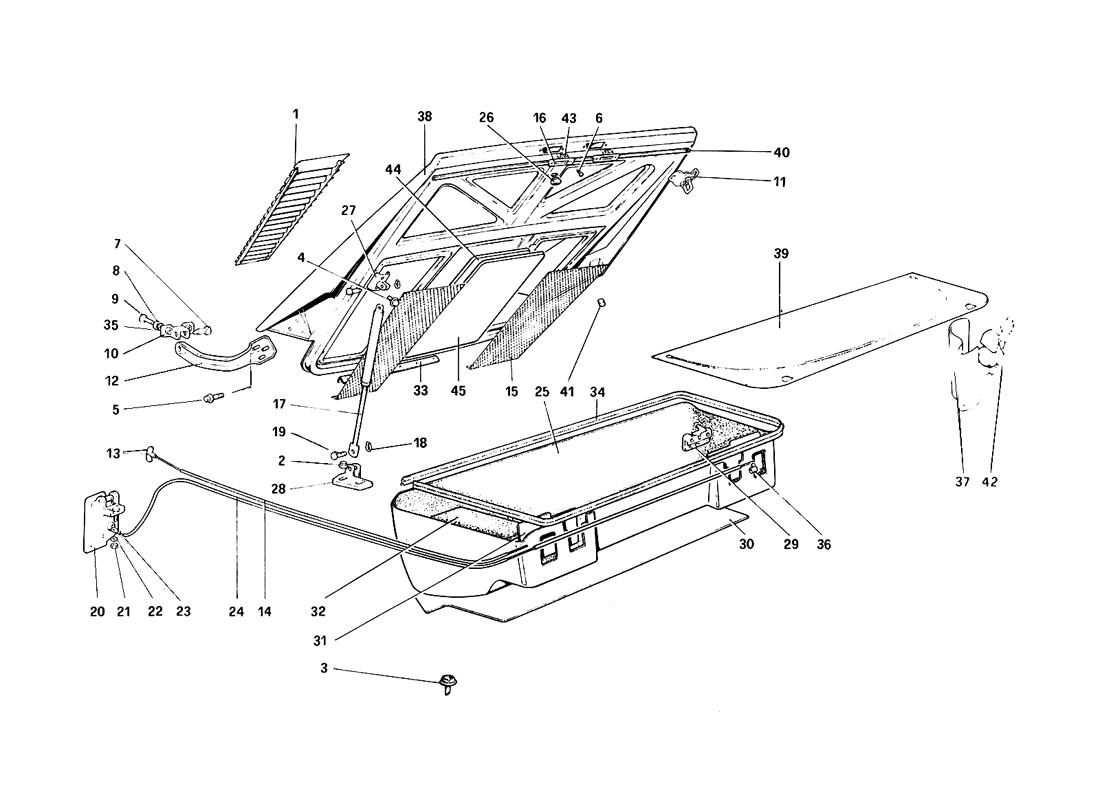

REAR BONNET AND LUGGAGE COMPARTMENT COVERING

Go to Split View

REAR BONNET AND LUGGAGE COMPARTMENT COVERING

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 60788700 *Qty: 1 L.H. grill
D excluded
$763.09
Location: 1 Prev | Next Part: 60861200 *Qty: 1 L.H. grill
D oniy
$1,388.23
Location: 1 Prev | Next Part: 60861100 *Qty: 1 R.H. grill
D only
$1,388.23
Location: 1 Prev | Next Part: 60789600 *Qty: 1 R.H. grill
D excluded
Unavailable
Location: 2 Prev | Next Part: 13832101 *Qty: 4 Nut $0.90
Location: 3 Prev | Next Part: 60731300 *Qty: 2 Plug $3.81
Location: 4 Prev | Next Part: 13835871 *Qty: 4 Screw $1.93
Location: 5 Prev | Next Part: 13838971 *Qty: 6 Screw Superseded
Location: 6 Prev | Next Part: 20297800 *Qty: 4 Screw $0.98
Location: 7 Prev | Next Part: 60017506 *Qty: 2 Pin $9.35
Location: 8 Prev | Next Part: 12616701 *Qty: 4 Washer Unavailable
Location: 9 Prev | Next Part: 16043321 *Qty: 4 Screw $1.55
Location: 10 Prev | Next Part: 60257805 *Qty: 1 LH. fixed hinge $42.79
Location: 10 Prev | Next Part: 60257706 *Qty: 1 R.H. fixed hinge $42.79
Location: 11 Prev | Next Part: 60891000 *Qty: 2 Pin $206.29
Location: 12 Prev | Next Part: 60256807 *Qty: 1 R.H. mobile hinge $41.57
Location: 12 Prev | Next Part: 60256906 *Qty: 1 L.H. mobile hinge $46.11
Location: 13 Prev | Next Part: 60510500 *Qty: 1 Safety cable $8.64
Location: 14 Prev | Next Part: 60024502 *Qty: 1 Sheath, safety cable $72.92
Location: 15 Prev | Next Part: 60788800 *Qty: 1 R.H. net under the grill $284.16
Location: 15 Prev | Next Part: 60788900 *Qty: 1 L.H. net under the grill $284.16
Location: 16 Prev | Next Part: 60041906 *Qty: 2 Number plate lamps Unavailable
Location: 17 Prev | Next Part: 60592800 *Qty: 2 Support $60.44
Location: 18 Prev | Next Part: 11087876 *Qty: 4 Seeger $0.90
Location: 19 Prev | Next Part: 60599500 *Qty: 4 Pin $18.27
Location: 20 Prev | Next Part: 60086105 *Qty: 1 Bonnet handle Superseded
Location: 21 Prev | Next Part: 60191509 *Qty: 1 Sheath bonnet cable LHD $61.48
Location: 21 Prev | Next Part: 15896411 *Qty: 1 Nut Superseded
Location: 21 Prev | Next Part: 60024601 *Qty: 1 Sheath bonnet cable RHD Unavailable
Location: 22 Prev | Next Part: 10615371 *Qty: 1 Washer $0.90
Location: 23 Prev | Next Part: 60277001 *Qty: 1 Cable $43.71
Location: 25 Prev | Next Part: 61188900 *Qty: 1 Carpet $422.11
Location: 26 Prev | Next Part: 40134108 *Qty: 1 Plug $3.76
Location: 27 Prev | Next Part: 60597700 *Qty: 1 R.H. bracket $160.58
Location: 27 Prev | Next Part: 60597800 *Qty: 1 L.H. bracket Unavailable
Location: 28 Prev | Next Part: 60598000 *Qty: 1 L.H. bracket $30.64
Location: 28 Prev | Next Part: 60597900 *Qty: 1 R.H. brachel Unavailable
Location: 29 Prev | Next Part: 60277407 *Qty: 2 Lock Unavailable
Location: 30 Prev | Next Part: 60131307 *Qty: 1 Insulation Unavailable
Location: 31 Prev | Next Part: 61138000 *Qty: 1 L.H. carpet $92.80
Location: 31 Prev | Next Part: 61137900 *Qty: 1 R.H. carpet Unavailable
Location: 32 Prev | Next Part: 60778100 *Qty: 1 Carpet $54.94
Location: 33 Prev | Next Part: 60218906 *Qty: 1 Drip : $32.27
Location: 34 Prev | Next Part: 60286200 *Qty: 1 Gasket Superseded
Location: 35 Prev | Next Part: 10615671 *Qty: 4 Washer $0.90
Location: 36 Prev | Next Part: 60276607 *Qty: 2 Clamp $36.37
Location: 37 Prev | Next Part: 61021000 *Qty: 1 Protection Unavailable
Location: 38 Prev | Next Part: 60788400 *Qty: 1 Bonnet $5,992.30
Location: 39 Prev | Next Part: 60114808 *Qty: 1 Trunk covering Unavailable
Location: 40 Prev | Next Part: 60564600 *Qty: 1 Gasket $14.98
Location: 41 Prev | Next Part: 60568000 *Qty: 2 Rubber piece Unavailable
Location: 42 Prev | Next Part: 61020900 *Qty: 1 Radio aerial Unavailable
Location: 43 Prev | Next Part: 101524 *Qty: 2 Lamp Superseded
Location: 44 Prev | Next Part: 61287200 *Qty: 1 Upper insulation
CH only
$153.31
Location: 45 Prev | Next Part: 61287300 *Qty: 1 Lower insulation
CH only
$158.23

* Quantity shown indicates the number of pieces used in the diagram.
