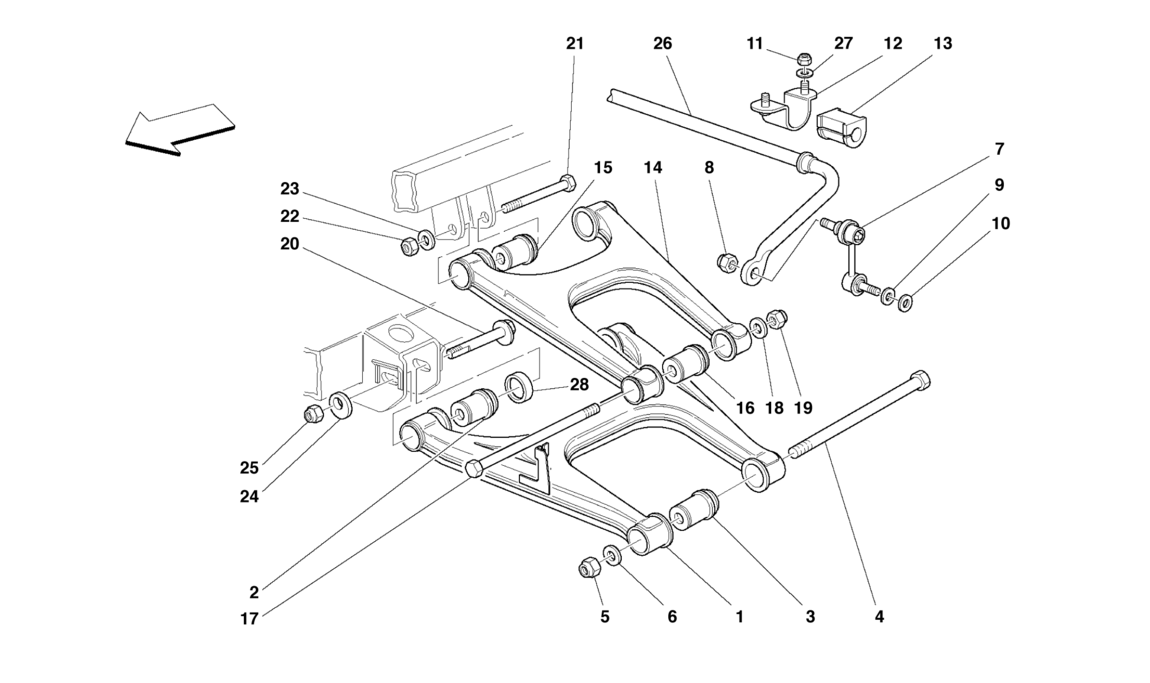

REAR SUSPENSION - WISHBONES AND STABILIZER BAR

Go to Split View

REAR SUSPENSION - WISHBONES AND STABILIZER BAR

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 183956 *Qty: 1 R.H. LOWER LEVER $584.77
Location: 1 Prev | Next Part: 183772 *Qty: 1 L.H. LOWER LEVER $584.77
Location: 2 Prev | Next Part: 186495 *Qty: 4 FLAMBLOCK FOR LOWER FORK $224.25
Location: 3 Prev | Next Part: 186496 *Qty: 4 FLAMBLOCK FOR LOWER FORK $220.86
Location: 4 Prev | Next Part: 168445 *Qty: 2 SCREW $39.25
Location: 5 Prev | Next Part: 150238 *Qty: 2 NUT Unavailable
Location: 6 Prev | Next Part: 105434 *Qty: 2 WASHER $33.40
Location: 7 Prev | Next Part: 171812 *Qty: 2 TIE ROD $129.40
Location: 8 Prev | Next Part: 102742 *Qty: 2 NUT Unavailable
Location: 9 Prev | Next Part: 102901 *Qty: 2 WASHER Unavailable
Location: 10 Prev | Next Part: 160092 *Qty: 2 WASHER $0.90
Location: 11 Prev | Next Part: 147985 *Qty: 4 NUT $0.90
Location: 12 Prev | Next Part: 153148 *Qty: 2 PAD FASTENING PLATE $6.38
Location: 13 Prev | Next Part: 212936 *Qty: 2 BAR BUFFER - $19.58
Location: 13 Prev | Next Part: 210897 *Qty: 2 BAR BUFFER - Unavailable
Location: 14 Prev | Next Part: 188736 *Qty: 2 UPPER LEVER $316.39
Location: 15 Prev | Next Part: 186496 *Qty: 4 FLAMBLOCK FOR UPPER SUPPORT $220.86
Location: 16 Prev | Next Part: 186493 *Qty: 4 FLAMBLOCK FOR UPPER SUPPORT $258.83
Location: 17 Prev | Next Part: 144747 *Qty: 2 SCREW $35.17
Location: 18 Prev | Next Part: 12601574 *Qty: 2 WASHER $0.90
Location: 19 Prev | Next Part: 102825 *Qty: 2 NUT Superseded
Location: 20 Prev | Next Part: 150789 *Qty: 4 ECCENTRIC SCREW $67.31
Location: 21 Prev | Next Part: 106422 *Qty: 4 SCREW $32.43
Location: 22 Prev | Next Part: 150238 *Qty: 4 NUT Unavailable
Location: 23 Prev | Next Part: 12601674 *Qty: 4 WASHER Unavailable
Location: 24 Prev | Next Part: 175077 *Qty: 4 ECCENTRIC WASHER $22.88
Location: 25 Prev | Next Part: 150238 *Qty: 4 NUT Unavailable
Location: 26 Prev | Next Part: 169120 *Qty: 1 REAR ANTI-ROLL BAR - $307.43
Location: 26 Prev | Next Part: 210888 *Qty: 1 REAR ANTI-ROLL BAR - Unavailable
Location: 27 Prev | Next Part: 10519624 *Qty: 4 WASHER Unavailable
Location: 28 Prev | Next Part: 187016 *Qty: 4 SPACER FOR FLAMBLOCK $4.43

* Quantity shown indicates the number of pieces used in the diagram.
