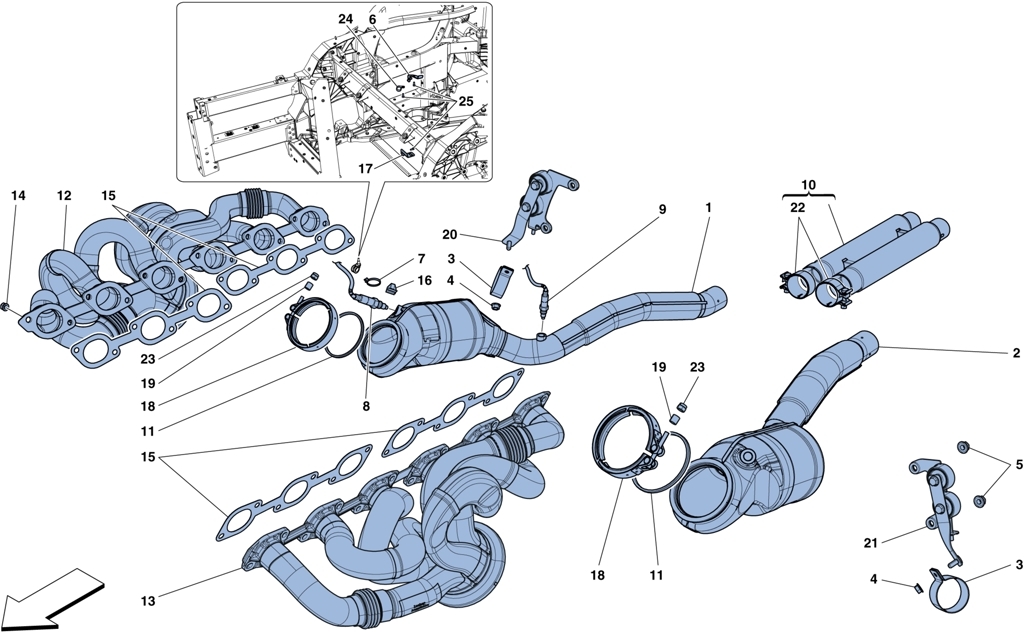

PRE-CATALYTIC AND PRIMARY CATALYTIC CONVERTERS

Go to Split View

PRE-CATALYTIC AND PRIMARY CATALYTIC CONVERTERS

Location Part # Quantity* Description Price Add To Cart
1 275462 1 COMPL. RH CATALYTIC CONVERTER $8,440.98
2 275463 1 COMPL. LH CATALYTIC CONVERTER $8,440.98
3 270406 2 CLAMP Unavailable
4 14059311 2 NUT Unavailable
5 14059421 4 NUT Unavailable
6 290698 1 FRONT OXYGEN SENSOR CABLE FASTENER BRACKET $15.84
7 331573 4 CABLE TIE $0.90
8 292582 2 FRONT OXYGEN SENSOR $243.19
9 300507 2 REAR OXYGEN SENSOR -L. 1030 MM- $99.27
10 317260 1 COMPL. CENTRAL EXTENSION -NO LONGER SUPPLIED- -REPLACED BY 290883- $884.56
10 290883 1 COMPL. CENTRAL EXTENSION Unavailable
11 275465 2 GASKET $67.52
12 333898 1 COMPL. RH EXHAUST MANIFOLD $2,903.36
13 320686 1 COMPL. LH EXHAUST MANIFOLD $2,903.36
14 210971 24 NUT $2.13
15 212702 4 GASKET $13.52
16 291283 2 CLIP $0.90
17 276422 2 CONNECTOR FASTENER BRACKET $8.77
18 290743 2 V-CLAMP FOR FASTENING CATALYTIC CONVERTER TO MANIFOLD $108.91
19 292946 2 SPACER Unavailable
20 296303 1 COMPLETE RH CATALYTIC CONVERTER MOUNTING BRACKET Unavailable
21 296304 1 COMPLETE LH CATALYTIC CONVERTER MOUNTING BRACKET Unavailable
22 282998 2 CLAMP $40.01
23 292945 2 NUT Unavailable
24 10419501 1 BRACKET Unavailable
25 231616 4 SCREW -M6 X 14- Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
