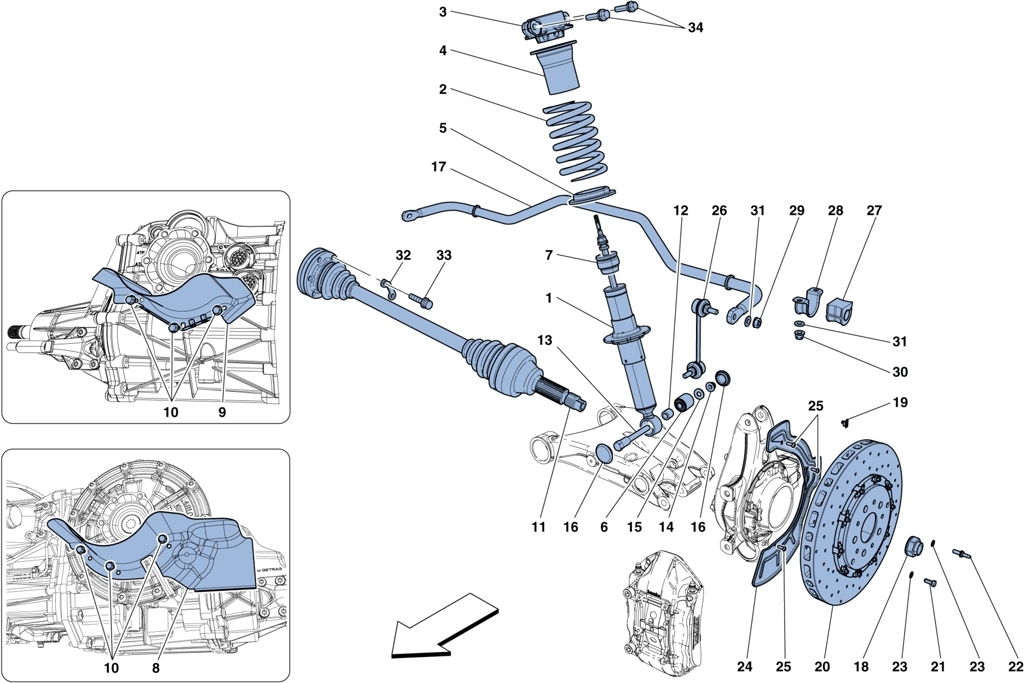

REAR SUSPENSION – SHOCKS AND BRAKE DISCS

Location Part # Quantity* Description Price Add To Cart
1 335659 2 REAR SHOCK ABSORBER $1,487.09
2 332990 2 REAR SUSPENSION SPRING $224.29
3 274308 2 CUP $220.40
4 212517 2 UPPER SPACER $12.75
5 211236 2 LOWER SPACER $34.49
6 157630 2 BALL JOINT $127.67
7 281221 2 ENDSTOP BUSH $43.12
8 259461 1 RH AXLE SHAFT HEAT SHIELD Unavailable
9 248707 1 LH AXLE SHAFT HEAT SHIELD $81.08
10 16296924 6 SCREW -M6 X 14- Unavailable
11 274635 2 AXLE SHAFT $1,174.48
12 237821 2 BUSHING $6.37
13 246962 2 SCREW $41.09
14 255271 2 NUT $1.81
15 12646921 2 WASHER $0.90
16 14507987 6 PLUG $6.50
17 262790 1 STABILISER BAR $385.92
18 203780 2 NUT $30.43
19 204781 2 FASTENER CLIP $1.16
20 315458 2 REAR BRAKE DISC $4,835.44
21 228131 2 SCREW Unavailable
22 104370 2 SCREW Unavailable
23 228132 4 WASHER Unavailable
24 257424 1 RH REAR DISC SHIELD $67.27
24 257423 1 LH REAR DISC SHIELD $67.27
25 250657 6 SCREW $8.30
26 242392 1 SPHERICAL TIE-ROD -LH REAR- $132.84
26 242391 1 SPHERICAL TIE-ROD -RH REAR- $132.84
27 236242 2 STABILISER BAR BUSH $34.49
28 244778 2 PLATE $25.86
29 12164714 2 NUT $0.90
30 12578321 2 NUT Unavailable
31 12601474 4 WASHER Unavailable
32 220325 6 SCRAPING PLATE $5.16
33 237590 12 SCREW $6.37
34 248790 4 SCREW $5.32
35 814779 2 SPECIAL RING BEARING FOR AXLE SHAFT -APPLICABLE FROM ASS. NO. 157474- $15.16

* Quantity shown indicates the number of pieces used in the diagram.
