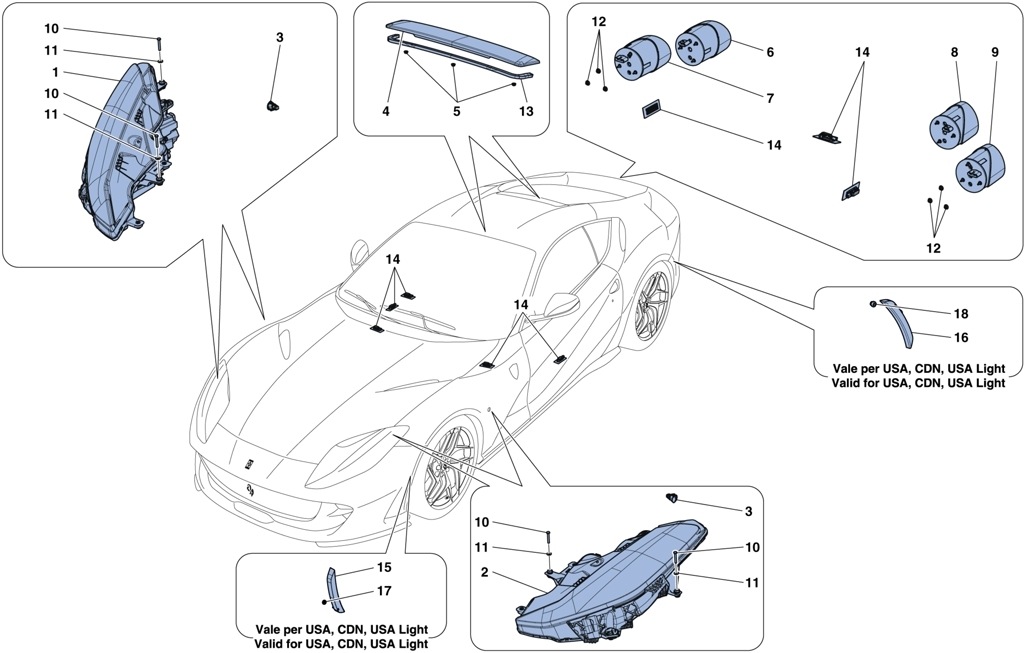

HEADLIGHTS AND TAILLIGHTS

Location Part # Quantity* Description Price Add To Cart
1 338308 1 RH HEADLAMP -APPLICABLE FOR USA- CDN- USA LIGHT- $3,572.90
1 338470 1 RH HEADLAMP -AFS- -APPLICABLE FOR CINA- $4,133.49
1 336581 1 RH HEADLAMP -AFS- -APPLICABLE FOR J- GD- $4,821.64
1 338466 1 RH HEADLAMP -APPLICABLE FOR CINA- $3,572.90
1 325606 1 RH HEADLAMP -NOT FOR CINA- USA- CDN- J- GD- USA LIGHT- $3,410.01
1 336576 1 RH HEADLAMP -APPLICABLE FOR J- GD- $4,293.84
1 338312 1 RH HEADLAMP -AFS- -APPLICABLE FOR USA- CDN- USA LIGHT- $4,915.83
1 336570 1 RH HEADLAMP -AFS- -NOT FOR CINA- USA- CDN- J- GD- USA LIGHT- $3,901.84
2 338468 1 LH HEADLAMP -APPLICABLE FOR CINA- $3,572.90
2 336578 1 LH HEADLAMP -AFS- -APPLICABLE FOR J- GD- $4,821.64
2 338314 1 LH HEADLAMP -AFS- -APPLICABLE FOR USA- CDN- USA LIGHT- $4,915.83
2 325605 1 LH HEADLAMP -NOT FOR CINA- USA- CDN- J- GD- USA LIGHT- $3,410.01
2 336572 1 LH HEADLAMP -APPLICABLE FOR J- GD- $4,293.84
2 338310 1 LH HEADLAMP -APPLICABLE FOR USA- CDN- USA LIGHT- $3,572.90
2 336568 1 LH HEADLAMP -AFS- -NOT FOR CINA- USA- CDN- J- GD- USA LIGHT- $3,901.84
2 338472 1 LH HEADLAMP -AFS- -APPLICABLE FOR CINA- $4,133.49
3 317211 2 COMPL. LATERAL TURN INDICATOR $112.14
4 330893 1 ADDITIONAL STOP LIGHT $438.46
5 14059211 3 NUT $0.90
6 322257 1 INNER RH TAILLIGHT $909.42
7 325107 1 OUTER RH TAILLIGHT -NOT FOR KOREA AND BR $893.18
7 317207 1 OUTER RH TAILLIGHT -APPLICABLE FOR KOREA $909.42
8 322258 1 INNER LH TAILLIGHT $909.42
9 317208 1 OUTER LH TAILLIGHT -APPLICABLE FOR KOREA $909.42
9 325108 1 OUTER LH TAILLIGHT -NOT FOR KOREA AND BR $742.49
10 10903224 8 SCREW Superseded
11 12647604 8 WASHER $0.90
12 14039614 12 NUT Unavailable
13 831264 1 GASKET -APPLICABLE UNTIL DEPLETION- $19.88
13 831264 1 GASKET -APPLICABLE AFTER DEPLETION OF 343141- $19.88
14 318013 7 LIGHT UNIT 1- LED $43.12
15 87329500 1 LH FRONT SIDE MARKER -APPLICABLE FOR USA- CDN- USA LIGHT- $90.92
15 87329600 1 RH FRONT SIDE MARKER -APPLICABLE FOR USA- CDN- USA LIGHT- $90.92
16 87329700 1 LH REAR SIDE MARKER -APPLICABLE FOR USA- CDN- USA LIGHT- $90.92
16 87329800 1 RH REAR SIDE MARKER -APPLICABLE FOR USA- CDN- USA LIGHT- $90.92
17 84784600 4 WASHER FOR PIN Unavailable
18 89241300 4 NUT -APPLICABLE FOR USA- CDN- USA LIGHT- $17.94
19 318013 1 LIGHT UNIT 1- LED -APPLICABLE UP TO ASS. NO. 158352- $43.12

* Quantity shown indicates the number of pieces used in the diagram.
