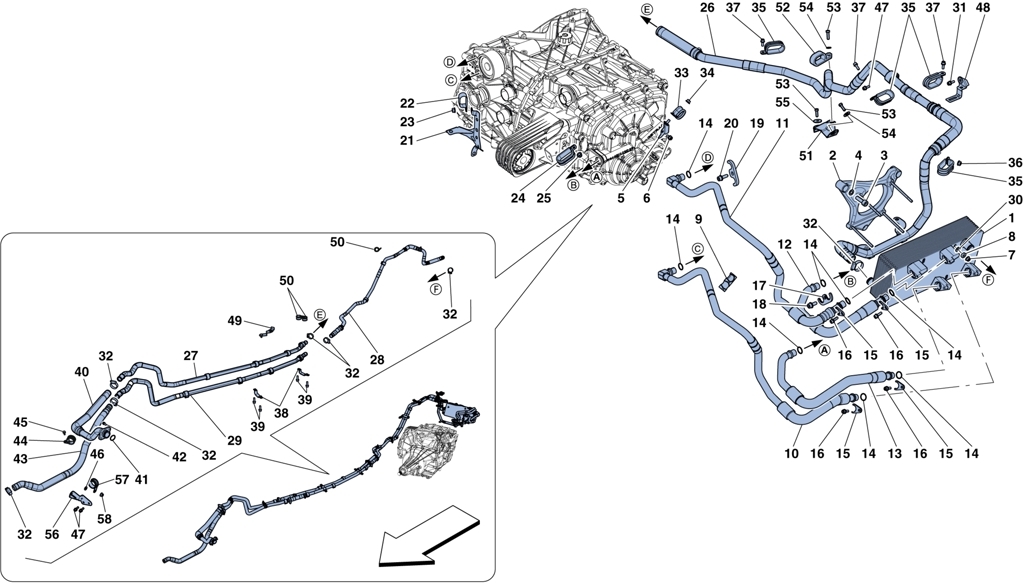

GEARBOX OIL LUBRICATION AND COOLING SYSTEM

Go to Split View

GEARBOX OIL LUBRICATION AND COOLING SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 326420 1 OIL HEAT EXCHANGER $1,569.83
2 318265 1 GEARBOX SINGLE OIL HEAT EXCHANGER MOUNT $107.27
3 14307534 3 SCREW -M10 X 1.25 X 30- $3.39
4 12648321 3 WASHER Unavailable
5 268359 1 BRACKET Unavailable
6 233600 1 SCREW Unavailable
7 14058421 4 NUT $1.38
8 13604015 4 SPACER $1.02
9 264810 1 THICKNESS $5.08
10 334873 1 ATF FLUID DELIVERY PIPE $391.60
11 262813 1 ATF FLUID RETURN PIPE $449.62
12 334874 1 GL-5 OIL RETURN PIPE $223.57
13 334875 1 GL-5 OIL DELIVERY PIPE $245.31
14 254644 8 GASKET -APPLICABLE UNTIL DEPLETION- $0.90
15 262827 4 PIPE RETAINER FORK $18.15
16 231617 4 SCREW Unavailable
17 261824 1 PIPE RETAINER FORK $28.52
18 248471 1 SCREW $1.38
19 236479 1 PIPE RETAINER FORK Superseded
20 231628 1 SCREW -M8 X 25- Unavailable
21 274638 1 BRACKET Unavailable
22 265771 1 BRACKET $2.58
23 14040611 1 NUT $2.25
24 61712500 1 BRACKET WITH SHEATH $2.05
25 14040611 1 NUT $2.25
26 290918 1 REAR WATER DELIVERY PIPE $697.63
27 290974 1 CENTRAL WATER DELIVERY PIPE $779.34
28 290919 1 REAR WATER RETURN PIPE Unavailable
29 282347 1 CENTRAL WATER RETURN PIPE Unavailable
30 12647624 4 WASHER Unavailable
31 231617 1 SCREW -M6 X 18- Unavailable
32 262111 7 COLLAR -APPLICABLE AFTER DEPLETION OF 10860370- $1.93
33 10441990 1 BRACKET WITH SHEATH Unavailable
34 14040611 1 NUT $2.25
35 248454 4 BRACKET WITH SHEATH $9.16
36 14040611 1 NUT $2.25
37 231617 3 SCREW -M6 X 18- Unavailable
38 266783 2 BRACKET Unavailable
39 231617 4 SCREW -M6 X 18- Unavailable
40 320234 1 FRONT WATER DELIVERY HOSE $370.48
41 250888 1 GASKET Unavailable
42 231619 2 SCREW -M6 X 22- Unavailable
43 321460 1 FRONT WATER RETURN HOSE $167.13
44 10442290 1 BRACKET WITH SHEATH Unavailable
45 16286024 1 SCREW Unavailable
46 13577724 1 WASHER $2.23
47 231617 3 SCREW -M6 X 18- Unavailable
48 272486 1 BRACKET Unavailable
49 285513 1 BRACKET FASTENING WATER PIPES TO UNDERBODY Unavailable
50 10441990 2 BRACKET WITH SHEATH Unavailable
51 291946 1 BRACKET Unavailable
52 248454 1 BRACKET WITH SHEATH $9.16
53 13027224 3 SCREW Unavailable
54 13550201 2 WASHER Superseded
55 12640604 1 WASHER Unavailable
56 291247 1 BRACKET FASTENING WATER PIPES TO UNDERBODY Unavailable
57 10448790 1 BRACKET WITH SHEATH Unavailable
58 14058311 1 NUT Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
