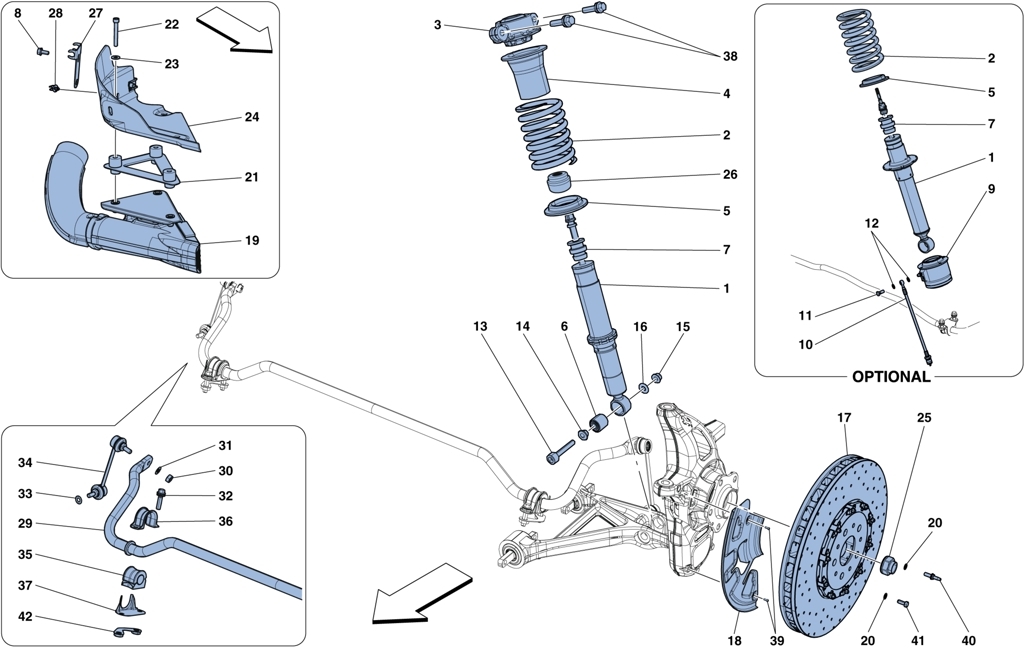

FRONT SUSPENSION – SHOCKS AND BRAKE DISCS

Location Part # Quantity* Description Price Add To Cart
1 336094 2 FRONT SHOCK ABSORBER -VERSION WITH LIFTER- $1,965.86
1 321240 2 FRONT SHOCK ABSORBER $1,507.41
2 332988 2 FRONT SUSPENSION SPRING $141.08
2 332989 2 FRONT SUSPENSION SPRING -VERSION WITH LIFTER- $241.55
3 250394 2 CUP $293.31
4 212517 2 UPPER SPACER $12.75
5 188996 2 LOWER SPACER $16.54
6 157630 2 BALL JOINT $127.67
7 288828 2 ENDSTOP BUSH $81.08
8 16296924 2 SCREW -M6 X 14- Unavailable
9 300214 2 COMPL. ACTUATOR -VEHICLE LIFT SYSTEM- -A $1,687.32
10 277168 2 HOSE $169.08
11 261587 2 PIPE UNION -VEHICLE LIFT SYSTEM- $34.49
12 259638 4 GASKET -VEHICLE LIFT SYSTEM- $15.16
13 237297 2 SCREW $41.09
14 237821 2 BUSHING $6.37
15 255271 2 NUT $1.81
16 12646921 2 WASHER $0.90
17 321910 2 FRONT BRAKE DISC $5,351.57
18 321236 1 FRONT RH DISC SHIELD $56.92
18 321235 1 FRONT LH DISC SHIELD $56.92
19 336478 1 RH FRONT BRAKE AIR DUCT $500.37
19 336477 1 LH FRONT BRAKE AIR DUCT $500.37
20 228132 4 WASHER Unavailable
21 320715 1 BRACKET FASTENING DUCT TO RH LOWER ARM $99.44
21 320714 1 BRACKET FASTENING DUCT TO LH LOWER ARM $99.44
22 14305924 6 SCREW Superseded
23 11193274 6 WASHER Unavailable
24 322889 1 COMPL. RH AIR DEFLECTOR $81.08
24 322888 1 COMPL. LH AIR DEFLECTOR $81.08
25 203780 2 NUT $30.43
26 288829 1 CUP $105.24
27 291864 1 ABS CABLE MOUNTING BRACKET Unavailable
28 261214 2 RAYMOND CLIP Unavailable
29 321262 1 STABILISER BAR $500.37
30 12164714 2 NUT $0.90
31 12601474 2 WASHER Unavailable
32 328463 4 SCREW -M10 X 1.25 X 30- $3.02
33 12601474 2 WASHER Unavailable
34 242391 1 SPHERICAL TIE-ROD -RH REAR- $132.84
34 242392 1 SPHERICAL TIE-ROD -LH REAR- $132.84
35 242404 2 STABILISER BAR BUSH $17.55
36 244778 2 PLATE $25.86
37 286144 2 BUSHING MOUNT Unavailable
38 248790 4 SCREW $5.32
39 250657 4 SCREW $8.30
40 104370 2 SCREW Unavailable
41 228131 2 SCREW Unavailable
42 327874 2 TORSION BAR FASTENER BRACKET $17.17

* Quantity shown indicates the number of pieces used in the diagram.
