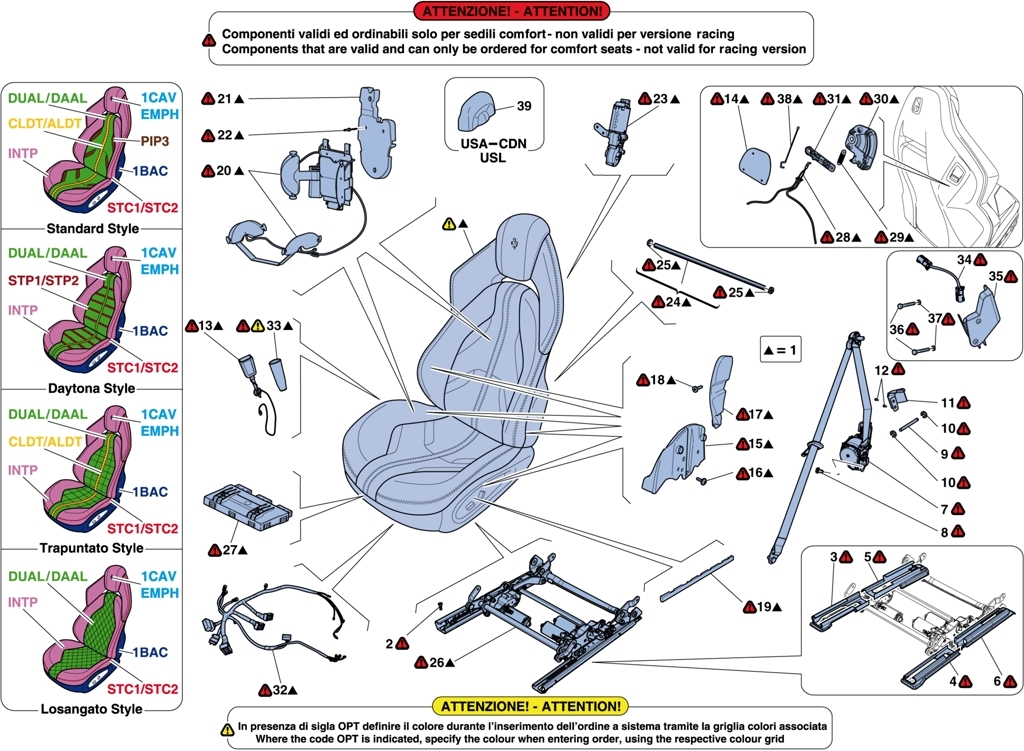

FRONT SEATS – SAFETY BELTS – GUIDES – MOVEMENT

Go to Split View

FRONT SEATS – SAFETY BELTS – GUIDES – MOVEMENT

Location Part # Quantity* Description Price Add To Cart
1 89324600 1 RH SEAT COMPLETE WITH GUIDE RAILS -QUILT Unavailable
1 88811200 1 LH SEAT COMPLETE WITH GUIDE RAILS -BASE- Unavailable
1 88812400 1 LH SEAT COMPLETE WITH GUIDE RAILS -DIAMO Unavailable
1 88814100 1 RH SEAT COMPLETE WITH GUIDE RAILS -DAYTO Unavailable
1 803984 1 RH SEAT COMPLETE WITH GUIDE RAILS -QUILT Unavailable
1 803989 1 RH SEAT COMPLETE WITH GUIDE RAILS -DAYTO Unavailable
1 89324400 1 LH SEAT COMPLETE WITH GUIDE RAILS -QUILT Unavailable
1 89325200 1 RH SEAT COMPLETE WITH GUIDE RAILS -QUILT Unavailable
1 88810500 1 LH SEAT COMPLETE WITH GUIDE RAILS -DAYTO Unavailable
1 88812200 1 LH SEAT COMPLETE WITH GUIDE RAILS -BASE- Unavailable
1 88813400 1 RH SEAT COMPLETE WITH GUIDE RAILS -DIAMO Unavailable
1 803982 1 RH SEAT COMPLETE WITH GUIDE RAILS -BASE- $507.52
1 88814612 1 RH SEAT COMPLETE WITH GUIDE RAILS -DAYTO $25,801.40
1 803987 1 RH SEAT COMPLETE WITH GUIDE RAILS -BASE- $32,753.44
1 89324700 1 RH SEAT COMPLETE WITH GUIDE RAILS -QUILT Unavailable
1 88811312 1 LH SEAT COMPLETE WITH GUIDE RAILS -DAYTO $25,801.40
1 88813200 1 RH SEAT COMPLETE WITH GUIDE RAILS -BASE- Unavailable
1 88814200 1 RH SEAT COMPLETE WITH GUIDE RAILS -DIAMO Unavailable
1 803985 1 RH SEAT COMPLETE WITH GUIDE RAILS -DIAMO Unavailable
1 89324500 1 LH SEAT COMPLETE WITH GUIDE RAILS -QUILT Unavailable
1 88810700 1 LH SEAT COMPLETE WITH GUIDE RAILS -DIAMO Unavailable
1 88812300 1 LH SEAT COMPLETE WITH GUIDE RAILS -DAYTO Unavailable
1 88814012 1 RH SEAT COMPLETE WITH GUIDE RAILS -BASE- $25,801.40
1 803983 1 RH SEAT COMPLETE WITH GUIDE RAILS -QUILT Unavailable
1 88814700 1 RH SEAT COMPLETE WITH GUIDE RAILS -DIAMO Unavailable
1 803988 1 RH SEAT COMPLETE WITH GUIDE RAILS -DIAMO Unavailable
1 89325000 1 LH SEAT COMPLETE WITH GUIDE RAILS -QUILT Unavailable
1 88810300 1 LH SEAT COMPLETE WITH GUIDE RAILS -BASE- $25,801.40
1 88811400 1 LH SEAT COMPLETE WITH GUIDE RAILS -DIAMO Unavailable
1 88813300 1 RH SEAT COMPLETE WITH GUIDE RAILS -DAYTO Unavailable
1 88814500 1 RH SEAT COMPLETE WITH GUIDE RAILS -BASE- Unavailable
1 803986 1 RH SEAT COMPLETE WITH GUIDE RAILS -DAYTO Unavailable
2 82140000 8 SCREW Unavailable
3 83957400 2 FRONT RH GUIDE RAIL COVER Unavailable
4 83957300 2 FRONT LH GUIDE RAIL COVER $11.67
5 83958000 1 REAR RH GUIDE RAIL COVER- RH SEAT Unavailable
5 83957800 1 REAR RH GUIDE RAIL COVER- LH SEAT Unavailable
6 83957700 1 REAR LH GUIDE RAIL COVER- LH SEAT Unavailable
6 83957900 1 REAR LH GUIDE RAIL COVER- RH SEAT $11.67
7 847915 1 RH FRONT WINDER SECTION -COLOURED- -ORDE Unavailable
7 83409900 1 RH FRONT WINDER SECTION -STANDARD- -BLACK- -NOT FOR GD- Unavailable
7 850419 1 LH FRONT WINDER SECTION -COLOURED- -ORDE Unavailable
7 847916 1 LH FRONT WINDER SECTION -COLOURED- -ORDE Unavailable
7 85041600 1 RH FRONT WINDER SECTION -STANDARD- -BLACK- -APPLICABLE FOR GD- Unavailable
7 83410000 1 LH FRONT WINDER SECTION -STANDARD- -BLACK- -NOT FOR GD- Unavailable
7 850417 1 RH FRONT WINDER SECTION -COLOURED- -ORDE Unavailable
7 85041800 1 LH FRONT WINDER SECTION -STANDARD- -BLACK- -APPLICABLE FOR GD- Unavailable
8 83911900 2 RETRACTOR SCREW Unavailable
9 69129500 2 ROLLER Unavailable
10 11087776 4 SEEGER RING Unavailable
11 84716100 1 LH RETRACTOR TRIM Unavailable
11 84716000 1 RH RETRACTOR TRIM Unavailable
12 85692000 4 SCREW -M5 X 10- -NOT FOR USA- Unavailable
13 80515900 2 SEAT BELT SECTION $277.74
14 85384100 2 PROTECTIVE COVER FOR MOUNT Unavailable
15 85377800 1 LH LATERAL SUPPORT Unavailable
15 85377700 1 RH LATERAL SUPPORT Unavailable
16 82588000 2 SCREW $2.74
17 85378200 1 RH LATERAL BACKREST SUPPORT Unavailable
17 85378300 1 LH LATERAL BACKREST SUPPORT Unavailable
18 82588000 2 SCREW $2.74
19 83472500 1 LH MOULDING $38.87
19 83472600 1 RH MOULDING $38.87
20 85382600 2 LUMBAR SUPPORT + PNEUMATICALLY ADJUSTABLE BOLSTER KIT -FULL ELECTRIC- $1,166.78
21 86755100 1 LH LUMBAR SUPPORT FRAME $285.17
21 86854200 1 RH LUMBAR SUPPORT FRAME $648.08
22 82588300 8 RIVET $16.85
23 82588900 1 ADJUSTMENT MOTOR -ELECTRIC- BASE- -ELECT $708.19
23 82589000 1 ADJUSTMENT MOTOR -ELECTRIC- FULL OPTIONAL- DRIVER SIDE- $766.22
24 66328800 2 ADJUSTER CONNECTING BAR $135.85
25 66328700 4 CROWN FASTENER $5.16
26 82586000 2 UNDERSEAT FRAME -ELECTRIC- FULL OPTIONAL- DRIVER SIDE- $3,202.41
26 83245400 2 UNDERSEAT FRAME -ELECTRIC- BASE- $2,033.29
27 787085 1 NAG/NAP ECU -FULL ELECTRIC- $800.74
28 85383100 1 RH RELEASE CABLE Unavailable
28 85383000 1 LH RELEASE CABLE Unavailable
29 85383200 2 SPRING Unavailable
30 85383300 1 LH LEVER MOUNTING BRACKET Unavailable
30 85383600 1 RH LEVER MOUNTING BRACKET Unavailable
31 85383900 2 RELEASE LEVER Unavailable
32 787082 1 PASSENGER SIDE WIRING HARNESS -FULL ELECTRIC- $673.62
32 787078 2 WIRING HARNESS -BASE- $279.63
32 787081 1 DRIVER SIDE WIRING HARNESS -FULL ELECTRIC- $737.19
33 790261 2 SEAT BELT BUCKLE SECTION SLEEVE -INTP- -LEATHER- -STC1- -STC2- $2,707.70
34 85515900 2 WIRING HARNESS -APPLICABLE FROM ASS. NO. 109580- Unavailable
35 85516000 2 COMPLETE MICROSWITCH BRACKET -APPLICABLE FROM ASS. NO. 109580- Unavailable
36 85516100 4 SCREW -APPLICABLE FROM ASS. NO. 109580- Unavailable
37 85516200 4 SPACER -APPLICABLE FROM ASS. NO. 109580- Unavailable
38 852246 2 RELEASE TIE-ROD $63.55
39 85638600 2 BELT GUIDE SCREW COVER -APPLICABLE FOR USA- CDN- -NO LONGER SUPPLIED- Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
