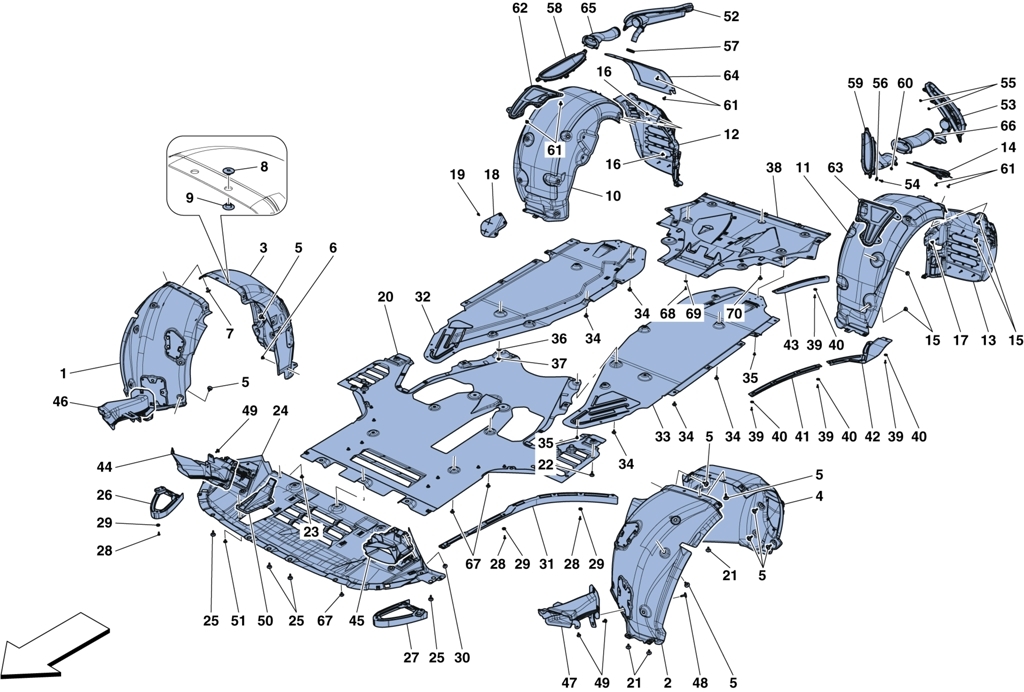

FLAT FLOORPAN AND WHEELHOUSES

Location Part # Quantity* Description Price Add To Cart
1 88064500 1 COMPL. SHIELD FOR FRONT PART OF FRONT RH $365.48
2 88064400 1 COMPL. SHIELD FOR FRONT PART OF FRONT LH $365.48
3 88688200 1 COMPL. SHIELD FOR REAR PART OF FRONT RH $230.84
4 88688300 1 COMPL. SHIELD FOR REAR PART OF FRONT LH $230.84
5 83442900 30 SCREW -M6 X 22- Unavailable
6 83222200 2 FIXING BUTTON Unavailable
7 82115900 2 SCREW -M6 X 14- Unavailable
8 84247300 2 MALE CLIP $1.87
9 84247400 2 FEMALE CLIP $1.73
10 88067000 1 SHIELD FOR FRONT PART OF REAR RH WHEEL B $423.20
11 88066900 1 COMPL. SHIELD FOR FRONT PART OF REAR LH $436.01
12 88066600 1 COMPL. SHIELD FOR REAR PART OF REAR RH W Unavailable
12 890855 1 COMPL. SHIELD FOR REAR PART OF REAR RH W $776.99
12 89055700 1 COMPL. SHIELD FOR REAR PART OF REAR RH W Unavailable
12 890999 1 COMPL. SHIELD FOR REAR PART OF REAR RH W $810.49
13 88066500 1 COMPL. SHIELD FOR REAR PART OF REAR LH W $769.45
13 89055900 1 COMPL. SHIELD FOR REAR PART OF REAR LH W $807.91
14 88417200 1 LH REAR WHEELHOUSE REAR LINER COVER $52.87
15 82362500 20 SCREW -M6 X 17- Unavailable
16 82115900 4 SCREW -M6 X 14- Unavailable
17 83222200 2 FIXING BUTTON Unavailable
18 85145000 1 COMPL. RH WHEEL BAY COVER PANEL Unavailable
19 256323 3 SCREW -M5 X 16- Unavailable
20 88080100 1 COMPL. FRONT FLAT UNDERTRAY SECTION $660.92
21 81290900 6 SCREW -M6 X 20- Unavailable
22 83442900 4 SCREW -M6 X 22- -NO LONGER SUPPLIED- -REPLACED BY 83442900- Unavailable
23 82115900 2 SCREW -M6 X 14- Unavailable
24 795715 1 COMPL. FRONT FLAT UNDERTRAY SECTION-BUMPER CONNECTOR $444.87
24 795715 1 COMPL. FRONT FLAT UNDERTRAY SECTION-BUMP $444.87
25 83442900 9 SCREW -M6 X 22- Unavailable
26 88080600 1 RH FRONT DAM Unavailable
27 88080500 1 LH FRONT DAM Unavailable
28 85833900 20 SCREW -APPLICABLE FOR J- Unavailable
29 12643701 20 WASHER Superseded
30 81290900 10 SCREW -M6 X 20- Unavailable
31 88081600 1 LH CENTRAL FRONT DAM- FRONT PART $78.17
31 88081700 1 RH CENTRAL FRONT DAM- FRONT PART $78.17
32 88084100 1 COMPL. RH CENTRE FLAT UNDERTRAY SECTION $291.06
33 88084000 1 COMPL. LH CENTRE FLAT UNDERTRAY SECTION $291.06
34 81290900 22 SCREW -M6 X 20- Unavailable
35 82115900 10 SCREW -M6 X 14- Unavailable
35 85478900 10 SCREW -M6 X 12- $1.32
36 10523424 2 WASHER $0.90
37 12578111 2 NUT Unavailable
38 88084400 1 COMPL. REAR FLAT UNDERTRAY $444.87
39 85833900 20 SCREW -M5 X 16- Unavailable
40 12643701 20 WASHER Superseded
41 1002798 1 LH REAR DAM- FRONT PART $253.44
41 87171400 1 RH REAR DAM- FRONT PART Unavailable
42 87530500 1 LH REAR DAM- REAR PART Unavailable
42 1002799 1 RH REAR DAM- REAR PART $253.44
43 88689900 1 RH INTERNAL REAR DAM $41.31
43 88690000 1 LH INTERNAL REAR DAM $41.31
44 88690400 1 COMPL. RH AERODYNAMIC AIR DUCT $96.33
45 88690300 1 COMPL. LH AERODYNAMIC AIR DUCT $96.33
46 88690500 1 COMPL. RH BRAKE AIR DUCT $98.39
47 88690600 1 COMPL. LH BRAKE AIR DUCT $98.39
48 83442900 8 SCREW -M6 X 22- -APPLICABLE FOR CINA- USA- CDN- GOLFO- Unavailable
49 81591700 12 SCREW $2.68
50 88870000 1 COMPL. EPS COOLING DUCT $41.31
51 82115900 3 SCREW -M6 X 14- Unavailable
52 88088500 1 COMPL. AIR DUCT UNDER RH FENDER $206.92
53 88088400 1 COMPL. AIR DUCT UNDER LH FENDER $239.45
54 16285127 8 SCREW Superseded
55 14039511 12 NUT Unavailable
56 61148700 8 WASHER Unavailable
57 84833900 1 RH CABLE GROMMET SEAL Unavailable
58 88089500 1 COMPL. RH QUARTERLIGHT AREA DUCT $288.64
59 88089400 1 COMPL. LH QUARTERLIGHT AREA DUCT $288.64
60 14039511 6 NUT Unavailable
61 81591700 22 SCREW -M6 X 18- $2.68
62 88724500 1 COMPL. RH REAR WHEELHOUSE COVER $105.50
63 88417300 1 COMPL. LH REAR WHEELHOUSE COVER $100.41
64 88417500 1 COMPL. CANISTER PROTECTIVE COVER $146.17
65 89239800 1 COMPL. RH PARTITION CONNECTOR PIPE $69.90
66 89239600 1 COMPL. LH PARTITION CONNECTOR PIPE $69.90
67 81290900 10 SCREW -M6 X 20 X 22- Unavailable
68 10902824 4 SCREW Unavailable
69 10523424 4 WASHER $0.90
70 81290900 1 SCREW -M6 X 20 X 22- Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
