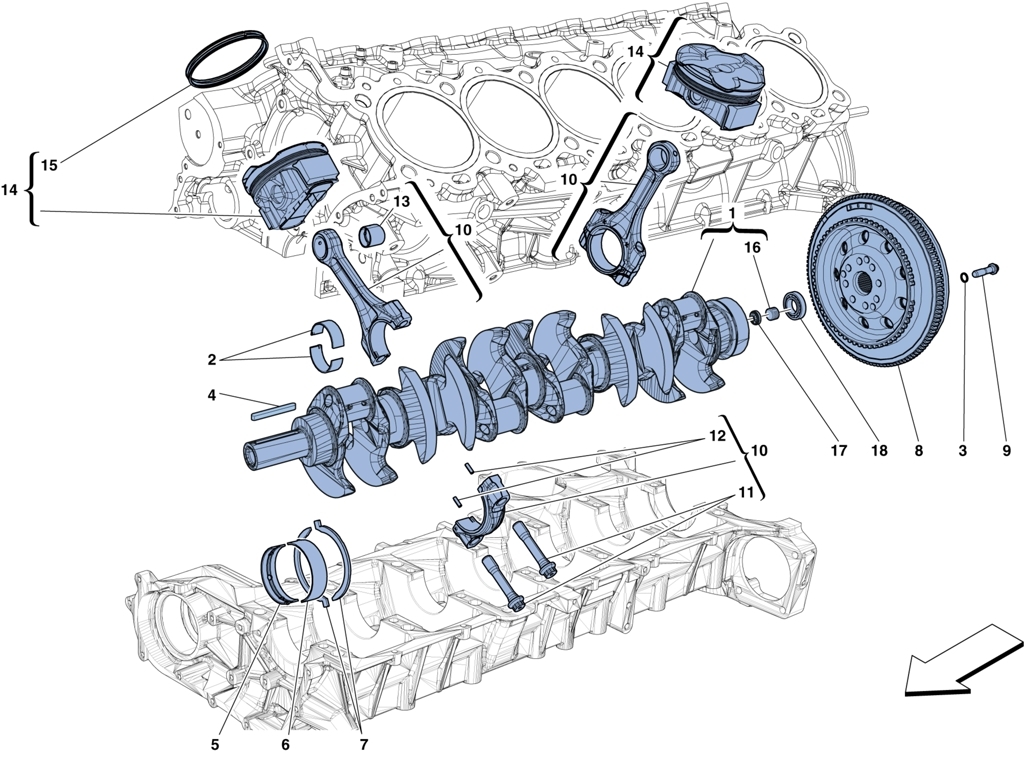

CRANKSHAFT – CONNECTING RODS AND PISTONS

Go to Split View

CRANKSHAFT – CONNECTING RODS AND PISTONS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 332068 *Qty: 1 CRANKSHAFT -APPLICABLE UP TO ENGINE NO. Unavailable
Location: 1 Prev | Next Part: 823503 *Qty: 1 CRANKSHAFT -APPLICABLE FROM ENGINE NO. 4 Unavailable
Location: 2 Prev | Next Part: 823846 *Qty: 24 CONNECTING ROD HALF-BEARING -GREEN- Unavailable
Location: 2 Prev | Next Part: 304681 *Qty: 24 CONNECTING ROD HALF-BEARING -BLUE- Unavailable
Location: 2 Prev | Next Part: 304682 *Qty: 24 CONNECTING ROD HALF-BEARING -RED- Unavailable
Location: 2 Prev | Next Part: 823845 *Qty: 24 CONNECTING ROD HALF-BEARING -YELLOW- Unavailable
Location: 2 Prev | Next Part: 304683 *Qty: 24 CONNECTING ROD HALF-BEARING -PINK- Unavailable
Location: 3 Prev | Next Part: 282966 *Qty: 2 GASKET $5.01
Location: 4 Prev | Next Part: 190981 *Qty: 1 KEY $1.17
Location: 5 Prev | Next Part: 271030 *Qty: 7 UPPER HALF-BEARING -GREEN- -LEAD FREE- -NOT FOR USA- CDN- USA LIGHT- $32.78
Location: 5 Prev | Next Part: 271028 *Qty: 7 UPPER HALF-BEARING -BLUE- -LEAD FREE- -NOT FOR USA- CDN- USA LIGHT- Unavailable
Location: 5 Prev | Next Part: 313685 *Qty: 7 UPPER HALF-BEARING -BROWN- Unavailable
Location: 5 Prev | Next Part: 271029 *Qty: 7 UPPER HALF-BEARING -YELLOW- -LEAD FREE- -NOT FOR USA- CDN- USA LIGHT- Unavailable
Location: 5 Prev | Next Part: 313686 *Qty: 7 UPPER HALF-BEARING -PINK- Unavailable
Location: 6 Prev | Next Part: 271023 *Qty: 7 LOWER HALF-BEARING -BLUE- -LEAD FREE- -NOT FOR USA- CDN- USA LIGHT- Unavailable
Location: 6 Prev | Next Part: 313687 *Qty: 7 LOWER HALF-BEARING -BROWN- Unavailable
Location: 6 Prev | Next Part: 271024 *Qty: 7 LOWER HALF-BEARING -YELLOW- -LEAD FREE- -NOT FOR USA- CDN- USA LIGHT- Unavailable
Location: 6 Prev | Next Part: 313688 *Qty: 7 LOWER HALF-BEARING -PINK- Unavailable
Location: 6 Prev | Next Part: 271025 *Qty: 7 LOWER HALF-BEARING -GREEN- -LEAD FREE- -NOT FOR USA- CDN- USA LIGHT- $32.65
Location: 7 Prev | Next Part: 261727 *Qty: 4 CRANKSHAFT BEARING SHIM -APPLICABLE FOR EU GS- UK- $9.52
Location: 8 Prev | Next Part: 323539 *Qty: 1 ENGINE FLYWHEEL Unavailable
Location: 9 Prev | Next Part: 229907 *Qty: 8 FASTENER SCREW $10.31
Location: 10 Prev | Next Part: 327386 *Qty: 12 COMPL. CONNECTING ROD AND CAP -APPLICABL Unavailable
Location: 10 Prev | Next Part: 824391 *Qty: 12 COMPL. CONNECTING ROD AND CAP -APPLICABL Unavailable
Location: 11 Prev | Next Part: 281320 *Qty: 24 SCREW Unavailable
Location: 12 Prev | Next Part: 292751 *Qty: 24 ALIGNMENT PIN $24.92
Location: 13 Prev | Next Part: 300758 *Qty: 12 BUSHING Unavailable
Location: 14 Prev | Next Part: 336530 *Qty: 6 COMPL. PISTON- LH CYLINDER BANK -APPLICABLE UP TO ENGINE NO. 409315- Unavailable
Location: 14 Prev | Next Part: 803899 *Qty: 6 COMPL. PISTON- RH CYLINDER BANK -APPLICABLE FROM ENGINE NO. 409316- Unavailable
Location: 14 Prev | Next Part: 336529 *Qty: 6 COMPL. PISTON- RH CYLINDER BANK -APPLICABLE UP TO ENGINE NO. 409315- Unavailable
Location: 14 Prev | Next Part: 803900 *Qty: 6 COMPL. PISTON- LH CYLINDER BANK -APPLICABLE FROM ENGINE NO. 409316- Unavailable
Location: 15 Prev | Next Part: 329062 *Qty: 12 COMPL. PISTON RING SET -APPLICABLE UP TO ENGINE NO. 409315- Unavailable
Location: 15 Prev | Next Part: 863119 *Qty: 12 COMPL. PISTON RING SET -APPLICABLE FROM ENGINE NO. 409316- Unavailable
Location: 16 Prev | Next Part: 176396 *Qty: 1 THREADED PLUG $5.86
Location: 17 Prev | Next Part: 14328801 *Qty: 1 PLUG Unavailable
Location: 18 Prev | Next Part: 103877 *Qty: 1 BEARING FOR SHAFT $29.17

* Quantity shown indicates the number of pieces used in the diagram.
