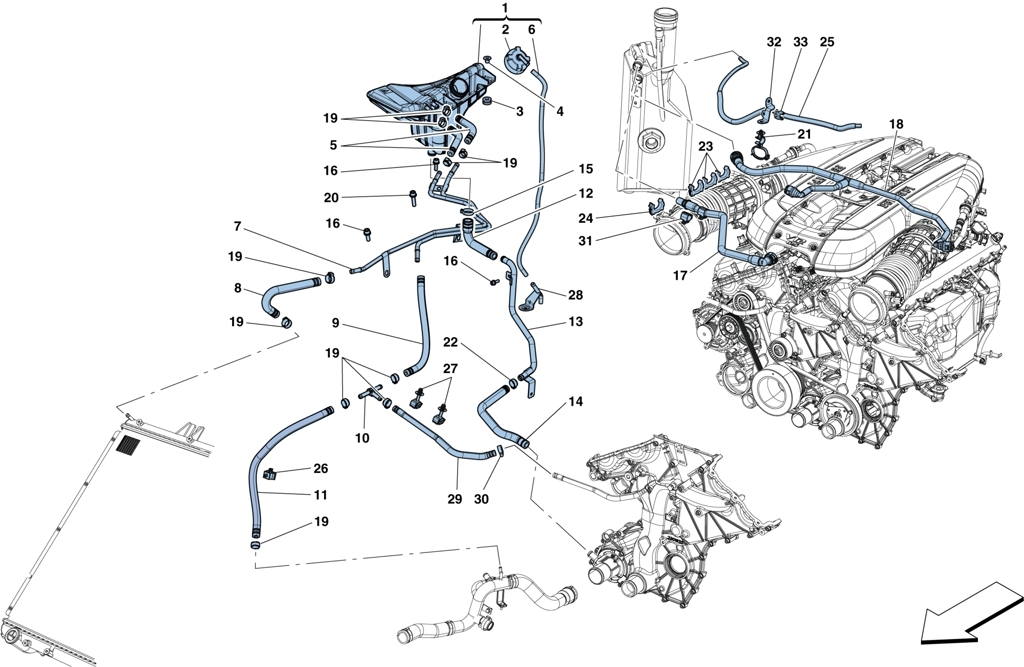

COOLING – RESERVOIR TANK AND PIPES

Go to Split View

COOLING – RESERVOIR TANK AND PIPES

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 282956 *Qty: 1 COMPL. EXPANSION TANK $128.26
Location: 2 Prev | Next Part: 145030 *Qty: 1 PLUG $49.75
Location: 3 Prev | Next Part: 103549 *Qty: 1 CABLE GROMMET $1.37
Location: 4 Prev | Next Part: 149707 *Qty: 1 SPACER $1.23
Location: 5 Prev | Next Part: 288386 *Qty: 2 RUBBER PIPE -D. 7-14 X 107- Unavailable
Location: 6 Prev | Next Part: 280418 *Qty: 1 RUBBER PIPE -D. 7 X 1.5 X 825- Unavailable
Location: 7 Prev | Next Part: 324412 *Qty: 1 COMPL. BREATHER PIPING Unavailable
Location: 8 Prev | Next Part: 288387 *Qty: 1 RUBBER HOSE Unavailable
Location: 9 Prev | Next Part: 288385 *Qty: 1 RUBBER PIPE -D. 7-14 X 235- Unavailable
Location: 10 Prev | Next Part: 281899 *Qty: 1 T-UNION Unavailable
Location: 11 Prev | Next Part: 340329 *Qty: 1 RUBBER PIPE -D. 7-14- Unavailable
Location: 12 Prev | Next Part: 282575 *Qty: 1 PIPE FROM RESERVOIR TO DISCONNECTOR UNION Unavailable
Location: 13 Prev | Next Part: 289021 *Qty: 1 RESERVOIR OUTLET RIGID PIPE Unavailable
Location: 14 Prev | Next Part: 289020 *Qty: 1 PIPE FROM DISCONNECTOR TO PUMP Unavailable
Location: 15 Prev | Next Part: 262111 *Qty: 1 COLLAR -APPLICABLE AFTER DEPLETION OF 10860370- $1.78
Location: 16 Prev | Next Part: 231617 *Qty: 5 SCREW $0.90
Location: 17 Prev | Next Part: 333856 *Qty: 1 VAPOUR PIPE FROM HEADS -APPLICABLE FOR E Unavailable
Location: 17 Prev | Next Part: 330640 *Qty: 1 VAPOUR PIPE FROM HEADS -APPLICABLE FOR USA- CDN- USA LIGHT- Unavailable
Location: 17 Prev | Next Part: 333856 *Qty: 1 VAPOUR PIPE FROM HEADS -NOT FOR EU GS- AUS- USA- CDN- UK- USA LIGHT- Unavailable
Location: 17 Prev | Next Part: 330640 *Qty: 1 VAPOUR PIPE FROM HEADS -APPLICABLE FOR E Unavailable
Location: 18 Prev | Next Part: 330633 *Qty: 1 BLOW-BY PIPE FROM TANK TO INTAKE MANIFOL Unavailable
Location: 18 Prev | Next Part: 330633 *Qty: 1 BLOW-BY PIPE FROM TANK TO INTAKE MANIFOL Unavailable
Location: 18 Prev | Next Part: 333857 *Qty: 1 BLOW-BY PIPE FROM TANK TO INTAKE MANIFOL Unavailable
Location: 18 Prev | Next Part: 333857 *Qty: 1 BLOW-BY PIPE FROM TANK TO INTAKE MANIFOL Unavailable
Location: 19 Prev | Next Part: 13125470 *Qty: 11 COLLAR Unavailable
Location: 20 Prev | Next Part: 231620 *Qty: 1 SCREW -M6 X 25- -APPLICABLE UP TO ASS. NO. 104675- $0.90
Location: 21 Prev | Next Part: 339342 *Qty: 1 CLIP Unavailable
Location: 22 Prev | Next Part: 262109 *Qty: 1 COLLAR -APPLICABLE AFTER DEPLETION OF 13 $1.22
Location: 23 Prev | Next Part: 140728 *Qty: 3 FIXING CLIP $0.90
Location: 23 Prev | Next Part: 140728 *Qty: 3 CLIP -APPLICABLE FOR EU GS- AUS- UK- -AP $0.90
Location: 24 Prev | Next Part: 145543 *Qty: 1 FIXING CLIP $0.90
Location: 24 Prev | Next Part: 145543 *Qty: 1 CLIP -APPLICABLE FOR EU GS- AUS- UK- -AP $0.90
Location: 25 Prev | Next Part: 336898 *Qty: 1 RUBBER PIPE -NOT FOR EU GS- AUS- USA- CDN- UK- USA LIGHT- Unavailable
Location: 25 Prev | Next Part: 336898 *Qty: 1 RUBBER PIPE -APPLICABLE FOR EU GS- AUS- Unavailable
Location: 26 Prev | Next Part: 257273 *Qty: 1 CLIP -VERSION WITH PARKING CAMERA- $1.39
Location: 27 Prev | Next Part: 339343 *Qty: 1 CLIP Unavailable
Location: 27 Prev | Next Part: 206536 *Qty: 1 CLIP $0.90
Location: 27 Prev | Next Part: 339343 *Qty: 1 CLIP -APPLICABLE FROM ENGINE NO. 345076- Unavailable
Location: 28 Prev | Next Part: 764686 *Qty: 1 BRACKET Unavailable
Location: 29 Prev | Next Part: 342162 *Qty: 1 PIPE Unavailable
Location: 30 Prev | Next Part: 13000290 *Qty: 1 CLIP $1.07
Location: 31 Prev | Next Part: 338263 *Qty: 1 CLIP Unavailable
Location: 32 Prev | Next Part: 339842 *Qty: 1 BRACKET Unavailable
Location: 33 Prev | Next Part: 14574287 *Qty: 1 CLIP -NOT FOR USA- CDN- USA LIGHT- $14.36
Location: 33 Prev | Next Part: 14574287 *Qty: 1 CLIP -APPLICABLE FOR EU GS- AUS- UK- -AP $14.36

* Quantity shown indicates the number of pieces used in the diagram.
