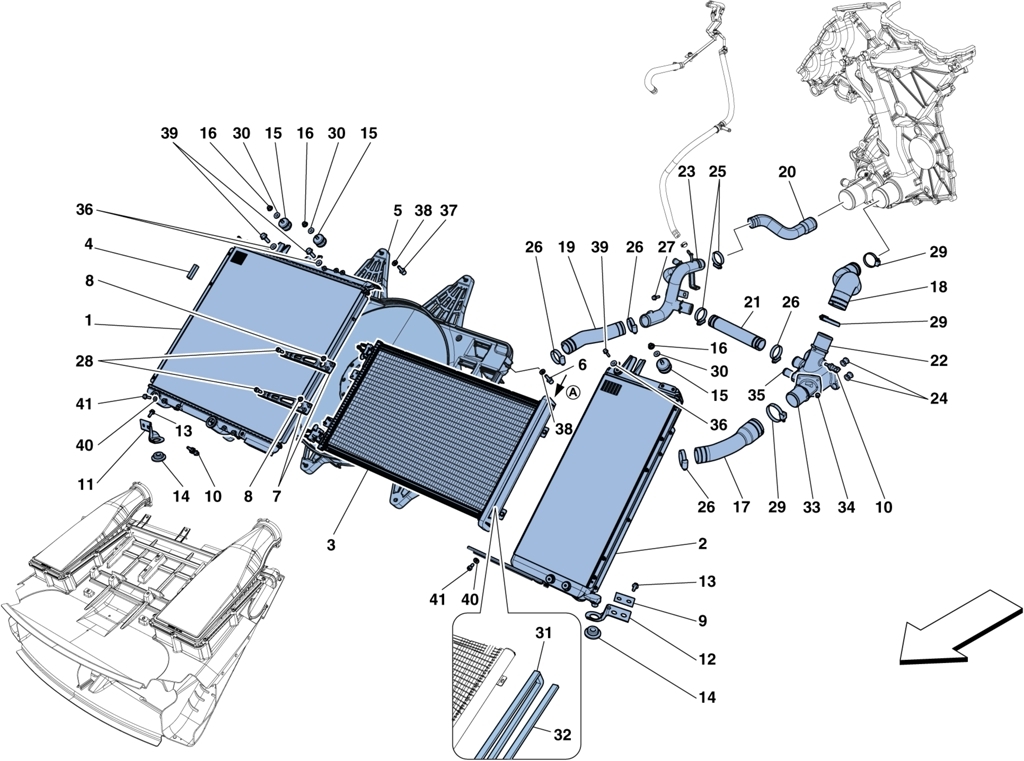

COOLING – RADIATORS AND AIR DUCTS

Location Part # Quantity* Description Price Add To Cart
1 319867 1 ENGINE WATER RADIATOR $1,315.50
2 277227 1 ENGINE OIL RADIATOR $1,942.28
3 265489 1 AC FILTER CONDENSER $652.73
4 332668 2 RUBBER THICKNESS $1.36
5 331018 1 COWL WITH ELECTRIC FANS -PLASTIC- $1,736.44
6 16285227 6 SCREW Unavailable
7 268656 2 CONDENSER MOUNTING BRACKET Unavailable
8 13046012 6 NUT Unavailable
9 329502 1 SMALL PLATE $10.56
10 180137 2 TEMPERATURE SENSOR $29.17
11 328405 1 LOWER RH BRACKET $69.00
12 328406 1 L.H. LOWER BRACKET $69.00
13 16287127 4 SCREW Unavailable
14 307674 2 RADIATOR MOUNTING BUSH $7.63
15 271472 3 PAD $14.27
16 14040711 3 NUT Unavailable
17 333051 1 WATER HOSE FROM VALVE TO RADIATOR $140.46
18 290951 1 WATER HOSE FROM ENGINE TO VALVE $367.53
19 258630 1 RETURN HOSE FROM RADIATOR $39.50
20 321228 1 RETURN HOSE TO PUMP $73.97
21 270452 1 WATER HOSE FROM VALVE $64.82
22 267849 1 THERMOSTAT HOUSING $326.73
23 337213 1 METAL WATER RECIRCULATION CONNECTOR PIPE $390.83
24 267300 4 DAMPED MOUNT $11.29
25 262113 2 COLLAR $2.07
26 13000690 5 SCREW COLLAR Unavailable
27 16286024 1 SCREW Unavailable
28 16284927 4 SCREW -M5 X 10- Unavailable
29 296345 3 COLLAR Unavailable
30 80416000 3 WASHER $1.93
30 12647024 3 WASHER Superseded
31 342269 1 RUBBER THICKNESS $4.49
32 342270 1 RUBBER THICKNESS $2.68
33 262913 1 THERMOSTAT/PRESSURE SWITCH $263.84
34 231617 4 SCREW Unavailable
35 228438 1 UNION $10.98
36 166467 4 WASHER Unavailable
37 15699804 5 SCREW Unavailable
38 12643778 11 WASHER Unavailable
39 16281827 4 SCREW Unavailable
40 12638178 3 WASHER Unavailable
41 16285127 3 SCREW Superseded

* Quantity shown indicates the number of pieces used in the diagram.
