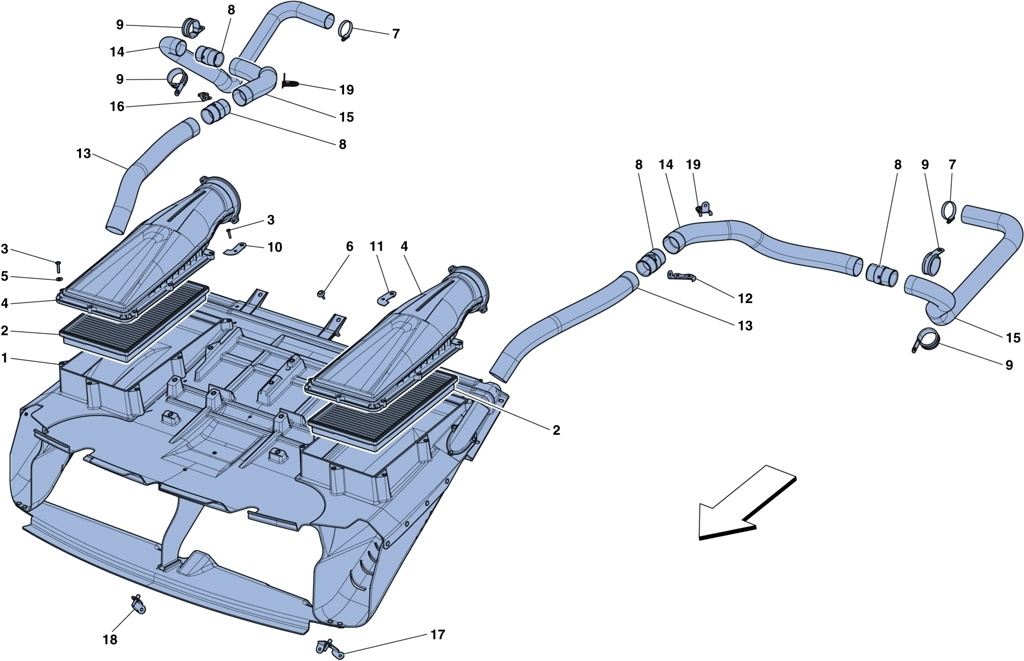

AIR INTAKE AND FILTERS

Location Part # Quantity* Description Price Add To Cart
1 823866 1 AIR DUCT -NOT FOR EU GS- AUS- CINA- USA- $1,432.42
1 340702 1 AIR DUCT -NOT FOR CINA- USA- CDN- GOLFO- $1,451.49
1 823879 1 AIR DUCT -APPLICABLE FOR EU GS- AUS- CIN $1,479.44
1 342366 1 AIR DUCT -APPLICABLE FOR CINA- USA- CDN- $1,498.53
2 842754 2 AIR FILTER -APPLICABLE FOR USA- CDN- USA $308.11
2 842754 2 AIR FILTER -APPLICABLE FOR EU GS- AUS- U $308.11
2 291688 2 AIR FILTER -NOT FOR EU GS- AUS- USA- CDN- UK- USA LIGHT- $276.02
2 842754 2 AIR FILTER -APPLICABLE FOR USA- CDN- USA $308.11
2 291688 2 AIR FILTER -APPLICABLE FOR EU GS- AUS- U $276.02
2 842754 2 AIR FILTER -APPLICABLE FOR EU GS- AUS- U $308.11
3 85692300 10 SCREW -M5 X 20- -NOT FOR USA- Unavailable
3 85834000 4 SCREW -M5 X 25- Unavailable
4 333296 2 AIR FILTER COVER -APPLICABLE FOR CARBON FILTER BOX COVER- $4,130.78
4 333295 2 AIR FILTER COVER $126.46
5 86321000 12 WASHER -APPLICABLE FOR J- $6.99
6 15699804 4 SCREW Unavailable
7 296782 2 COLLAR $11.61
8 270296 4 MEMBRANE HOLDER PIPE -D. 38- -APPLICABLE UP TO ASS. NO. 156812- Unavailable
9 175119 4 BRACKET WITH SHEATH Unavailable
10 338620 1 RH FASTENER BRACKET -APPLICABLE FOR CARBON FILTER BOX COVER- $22.88
10 338528 1 RH FASTENER BRACKET $16.53
11 338624 1 LH FASTENER BRACKET -APPLICABLE FOR CARBON FILTER BOX COVER- $22.88
11 338529 1 LH FASTENER BRACKET $16.53
12 336067 1 BRACKET -APPLICABLE UP TO ASS. NO. 156812- $19.07
13 339297 2 COILED PIPE -APPLICABLE UP TO ASS. NO. 156812- $121.75
14 339296 2 COILED PIPE -APPLICABLE UP TO ASS. NO. 156812- $118.20
15 293051 2 COILED PIPE -APPLICABLE UP TO ASS. NO. 156812- $142.61
16 336066 1 BRACKET -APPLICABLE UP TO ASS. NO. 156812- $19.07
17 330023 1 BRACKET $20.98
18 330024 1 BRACKET $20.98
19 336068 2 BRACKET -APPLICABLE UP TO ASS. NO. 156812- $20.33
20 217854 8 CLIP Unavailable
21 262114 10 COLLAR -APPLICABLE UNTIL DEPLETION- $1.40

* Quantity shown indicates the number of pieces used in the diagram.
