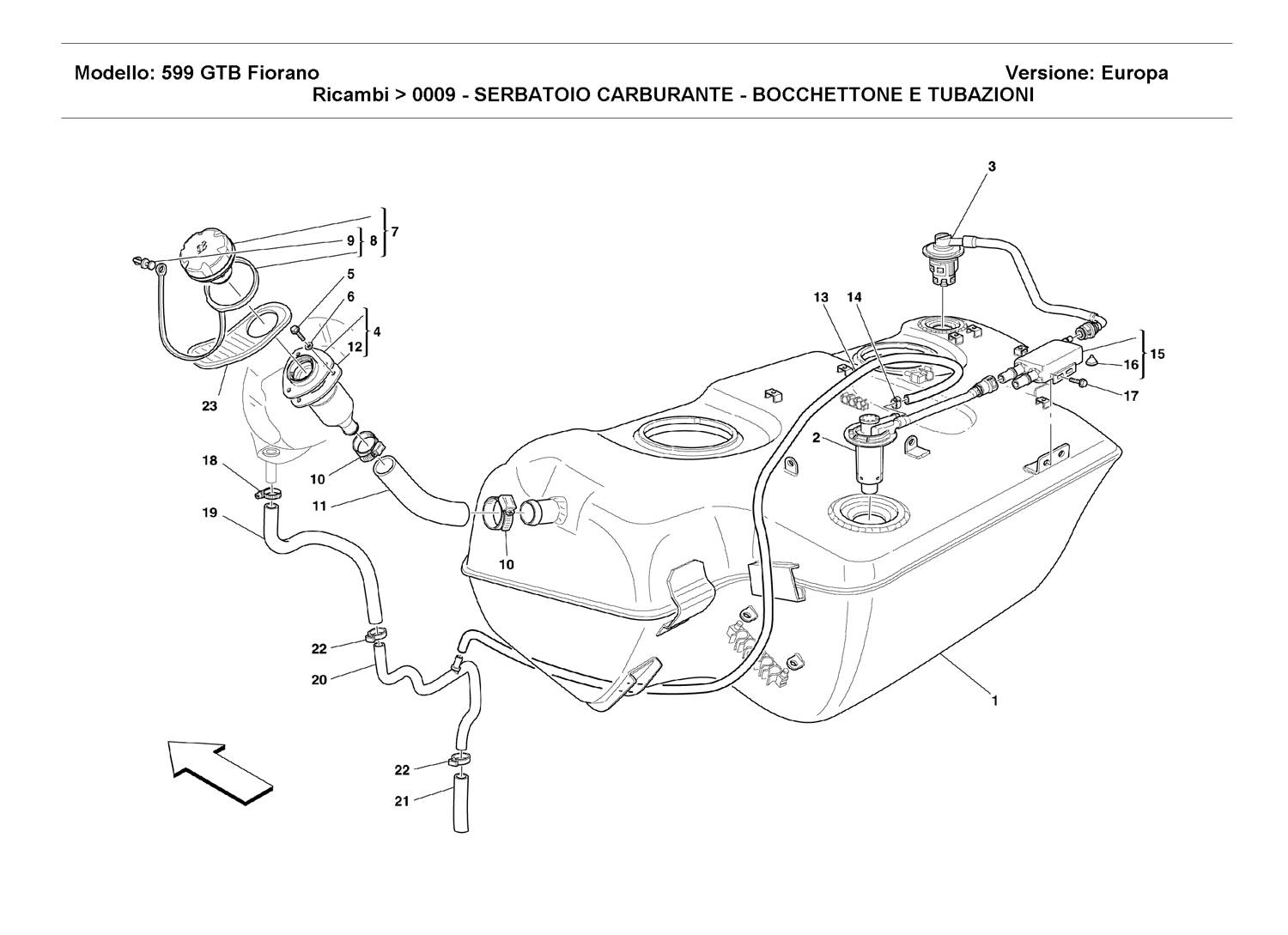

FUEL TANK - UNION AND PIPING

Go to Split View

FUEL TANK - UNION AND PIPING

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 204318 *Qty: 1 FUEL TANK $5,530.25
Location: 2 Prev | Next Part: 204319 *Qty: 1 MULTIFUNTIONAL VALVE $456.90
Location: 3 Prev | Next Part: 204320 *Qty: 1 TANK VENTILATION VALVE $179.06
Location: 4 Prev | Next Part: 213365 *Qty: 1 UNION $160.76
Location: 5 Prev | Next Part: 16286124 *Qty: 3 SCREW $0.90
Location: 6 Prev | Next Part: 10615474 *Qty: 3 WASHER $0.90
Location: 7 Prev | Next Part: 190469 *Qty: 1 TANK PLUG $328.66
Location: 8 Prev | Next Part: 196949 *Qty: 1 RING $25.43
Location: 9 Prev | Next Part: 186172 *Qty: 1 RETAINER $0.90
Location: 10 Prev | Next Part: 170127 *Qty: 2 COLLAR FOR SLEEVE $1.00
Location: 11 Prev | Next Part: 209504 *Qty: 1 UNION-TANK CONNECTING PIPE
-Valid till stock exhaustion-
$308.40
Location: 11 Prev | Next Part: 232570 *Qty: 1 UNION-TANK CONNECTING PIPE
-Valid after stock exhaustion of 209504-
$76.06
Location: 12 Prev | Next Part: 213254 *Qty: 1 GASKET $18.69
Location: 13 Prev | Next Part: 226117 *Qty: 1 RUBBER HOSE
-Valid till stock exhaustion-
$47.11
Location: 13 Prev | Next Part: 230745 *Qty: 1 RUBBER HOSE
-Valid after stock exhaustion of 226117-
$19.90
Location: 14 Prev | Next Part: 13434670 *Qty: 1 COLLAR FOR SLEEVE Call
Location: 15 Prev | Next Part: 209366 *Qty: 1 DISAREATOR $225.02
Location: 16 Prev | Next Part: 14622387 *Qty: 1 PLUG $3.47
Location: 17 Prev | Next Part: 16296924 *Qty: 2 SCREW $0.90
Location: 18 Prev | Next Part: 13434670 *Qty: 1 COLLAR FOR SLEEVE Call
Location: 19 Prev | Next Part: 226109 *Qty: 1 RUBBER HOSE $26.18
Location: 20 Prev | Next Part: 226111 *Qty: 1 TWO-WAY UNION $74.40
Location: 21 Prev | Next Part: 226217 *Qty: 1 RUBBER HOSE $8.37
Location: 22 Prev | Next Part: 13433570 *Qty: 2 COLLAR FOR SLEEVE
-Not as spare part-
-Replaced by 13432870-
$0.90
Location: 22 Prev | Next Part: 13432870 *Qty: 2 COLLAR FOR SLEEVE $12.55
Location: 23 Prev | Next Part: 67194500 *Qty: 1 PROTECTION Call

* Quantity shown indicates the number of pieces used in the diagram.
