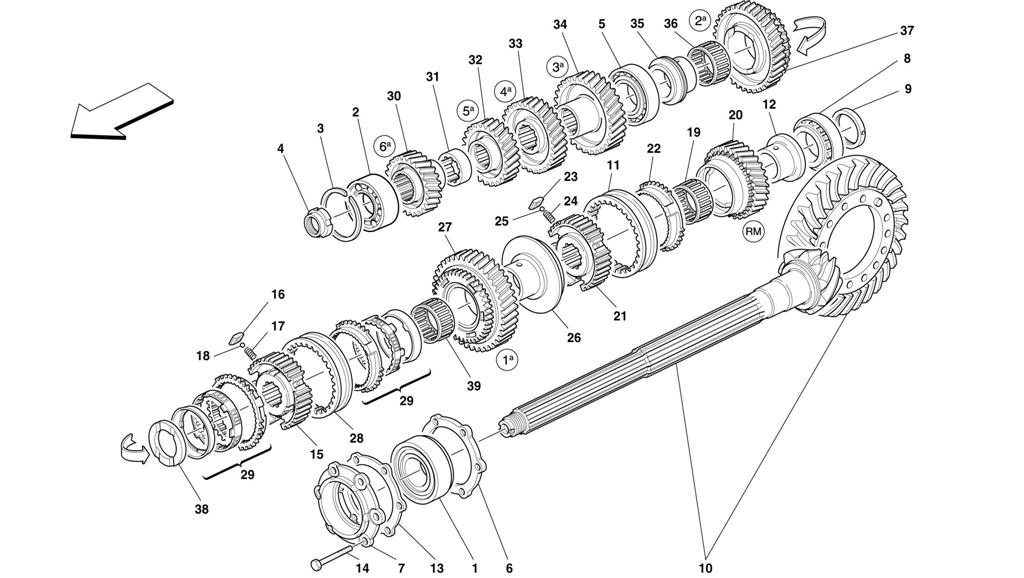

LAY SHAFT GEARS

Go to Split View

LAY SHAFT GEARS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 144498 *Qty: 1 BEARING FOR DRIVEN SHAFT DIFFERENTIAL SIDE $109.62
Location: 2 Prev | Next Part: 103030 *Qty: 1 ROLLER BEARING $239.07
Location: 3 Prev | Next Part: 144511 *Qty: 1 STOP RING $1.08
Location: 4 Prev | Next Part: 159553 *Qty: 1 RING NUT $63.95
Location: 5 Prev | Next Part: 131056 *Qty: 1 ROLLER BEARING $199.75
Location: 6 Prev | Next Part: 143924 *Qty: 1 RING $56.31
Location: 7 Prev | Next Part: 143923 *Qty: 1 BUSHING $71.16
Location: 8 Prev | Next Part: 121822 *Qty: 1 ROLLER BEARING $414.10
Location: 9 Prev | Next Part: 157668 *Qty: 1 SPACER -As an alternative $91.76
Location: 9 Prev | Next Part: 122152 *Qty: 1 SPACER $153.89
Location: 10 Prev | Next Part: 167988 *Qty: 1 COMPLETE BEVEL GEAR PAIR R.11/43 Call
Location: 11 Prev | Next Part: 152198 *Qty: 1 SLEEVE Call
Location: 12 Prev | Next Part: 152090 *Qty: 1 BUSHING $533.46
Location: 13 Prev | Next Part: 155722 *Qty: 1 SPACER Thick. mm. 2.4 $18.51
Location: 13 Prev | Next Part: 175375 *Qty: 1 SPACER Thick. mm. 1.85 $36.45
Location: 13 Prev | Next Part: 175376 *Qty: 1 SPACER Thick. mm. 1.9 $48.44
Location: 13 Prev | Next Part: 175377 *Qty: 1 SPACER Thick. mm. 1.95 $117.98
Location: 13 Prev | Next Part: 155718 *Qty: 1 SPACER Thick. mm. 2.0 $40.48
Location: 13 Prev | Next Part: 155719 *Qty: 1 SPACER Thick. mm. 1.6 $65.70
Location: 13 Prev | Next Part: 155720 *Qty: 1 SPACER Thick. mm. 1.8 $33.96
Location: 13 Prev | Next Part: 155721 *Qty: 1 SPACER Thick. mm. 2.2 $28.79
Location: 14 Prev | Next Part: 16321434 *Qty: 6 SCREW $9.23
Location: 15 Prev | Next Part: 157255 *Qty: 1 SYNCHRONIZER BODY $552.17
Location: 16 Prev | Next Part: 157051 *Qty: 3 SMALL BLOCK $10.32
Location: 17 Prev | Next Part: 157049 *Qty: 3 SPRING $1.54
Location: 18 Prev | Next Part: 157050 *Qty: 3 BALL $0.90
Location: 19 Prev | Next Part: 150004 *Qty: 1 ROLLER CAGE $20.69
Location: 20 Prev | Next Part: 167986 *Qty: 1 REVERSE GEAR $1,334.56
Location: 21 Prev | Next Part: 152203 *Qty: 1 SYNCHRONIZER BODY $327.32
Location: 22 Prev | Next Part: 152205 *Qty: 1 SYNCHRONIZER RING $341.00
Location: 23 Prev | Next Part: 152195 *Qty: 3 SMALL BLOCK $0.90
Location: 24 Prev | Next Part: 152196 *Qty: 3 SPRING $0.90
Location: 25 Prev | Next Part: 152197 *Qty: 3 BALL $3.68
Location: 26 Prev | Next Part: 152091 *Qty: 1 BUSHING $339.24
Location: 27 Prev | Next Part: 167974 *Qty: 1 PINION FOR 1st GEAR $426.02
Location: 28 Prev | Next Part: 156931 *Qty: 1 SLEEVE Call
Location: 29 Prev | Next Part: 159088 *Qty: 2 SYNCHRONIZER RINGS SET $835.35
Location: 30 Prev | Next Part: 167972 *Qty: 1 PINION FOR 6th GEAR $912.47
Location: 31 Prev | Next Part: 170056 *Qty: 1 SPACER $77.14
Location: 32 Prev | Next Part: 179112 *Qty: 1 PINION FOR 5th GEAR -Valid from transmission Nr. 1882 $882.54
Location: 32 Prev | Next Part: 167971 *Qty: 1 PINION FOR 5th GEAR -Valid till transmission Nr. 1881 $859.51
Location: 33 Prev | Next Part: 179111 *Qty: 1 PINION FOR 4th GEAR -Valid from transmission Nr. 1882 $826.57
Location: 33 Prev | Next Part: 161995 *Qty: 1 PINION FOR 4th GEAR -Valid till transmission Nr. 1881 $597.53
Location: 34 Prev | Next Part: 167969 *Qty: 1 PINION FOR 3rd GEAR $260.23
Location: 35 Prev | Next Part: 143892 *Qty: 1 BUSHING $84.04
Location: 36 Prev | Next Part: 104254 *Qty: 1 ROLLER CAGE $14.84
Location: 37 Prev | Next Part: 167976 *Qty: 1 PINION FOR 2nd GEAR $1,313.02
Location: 38 Prev | Next Part: 157375 *Qty: 1 SPACER $12.48
Location: 39 Prev | Next Part: 104254 *Qty: 1 ROLLER CAGE $14.84

* Quantity shown indicates the number of pieces used in the diagram.
