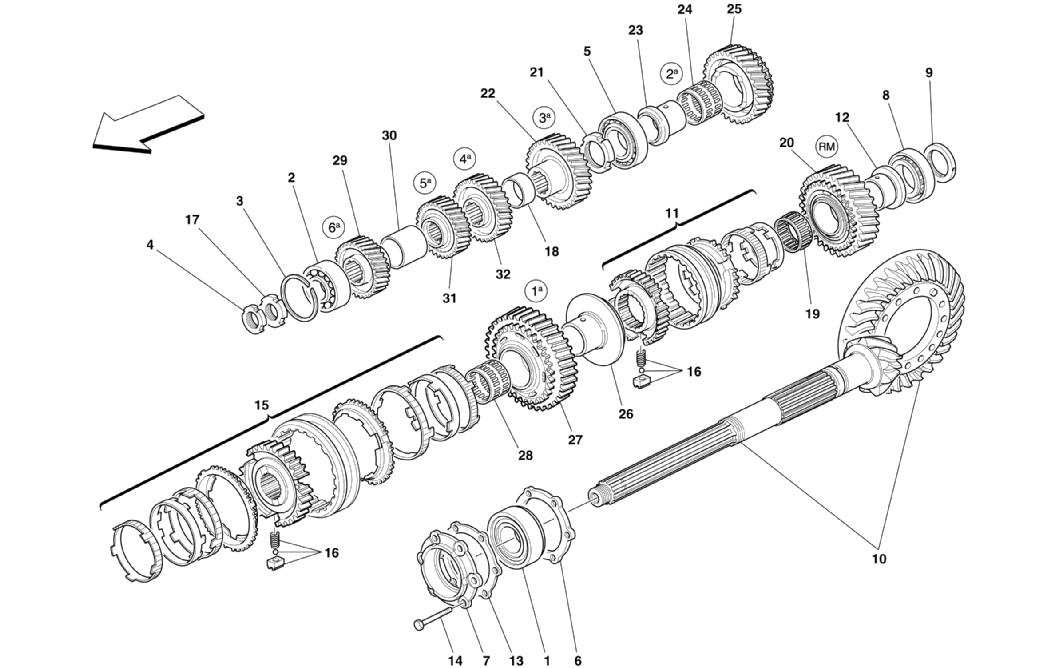

LAY SHAFT GEARS

Location Part # Quantity* Description Price Add To Cart
1 144498 1 BEARING FOR DRIVEN SHAFT DIFFERENTIAL SIDE $341.02
2 103030 1 ROLLER BEARING $292.30
3 144511 1 STOP RING Unavailable
4 163684 1 RING NUT $25.86
5 131056 1 ROLLER BEARING $290.70
6 143924 1 RING $58.59
7 189460 1 BUSHING $190.68
8 189462 1 ROLLER BEARING $243.58
9 189459 1 SPACER $57.83
10 203538 1 COMPLETE BEVEL GEAR PAIR R.11/46 Unavailable
11 189522 1 REVERSE GEAR COMPLETE SYNCHRONIZER $578.53
12 189525 1 BUSHING $131.12
13 155718 1 SPACER Thick. mm. 2,4 $50.02
13 155722 1 SPACER Thick. mm. 2,4 $25.05
13 155721 1 SPACER Thick. mm. 2,4 $34.69
14 16321430 6 SCREW $1.06
15 189587 1 1th AND 2th GEAR COMPLETE SYNCHRONIZER $1,527.07
16 194029 2 PAD FOR SYNCHRONIZER/BALL/ SPRING REPLACEMENT KIT $40.48
17 163670 1 RING NUT $79.15
18 189701 1 SPACER $50.12
19 150004 1 ROLLER CAGE $25.96
20 210497 1 REVERSE GEAR -Valid from engine Nr. 90178 (gearbox Nr. 3) $1,002.80
20 189524 1 REVERSE GEAR -Valid till engine Nr. 90177 -Not as spare part $2,730.74
21 189747 1 RING NUT $138.53
22 189655 1 PINION FOR 3rd GEAR Unavailable
23 189590 1 BUSHING $269.97
24 189580 1 ROLLER CAGE $34.08
25 189589 1 PINION FOR 2nd GEAR $2,657.45
26 189579 1 BUSHING $481.41
27 189588 1 PINION FOR 1st GEAR $2,678.67
28 189580 1 ROLLER CAGE $34.08
29 189703 1 PINION FOR 6th GEAR $482.10
30 189702 1 SPACER $50.12
31 189670 1 PINION FOR 5th GEAR $501.39
32 189668 1 PINION FOR 4th GEAR $520.67

* Quantity shown indicates the number of pieces used in the diagram.
