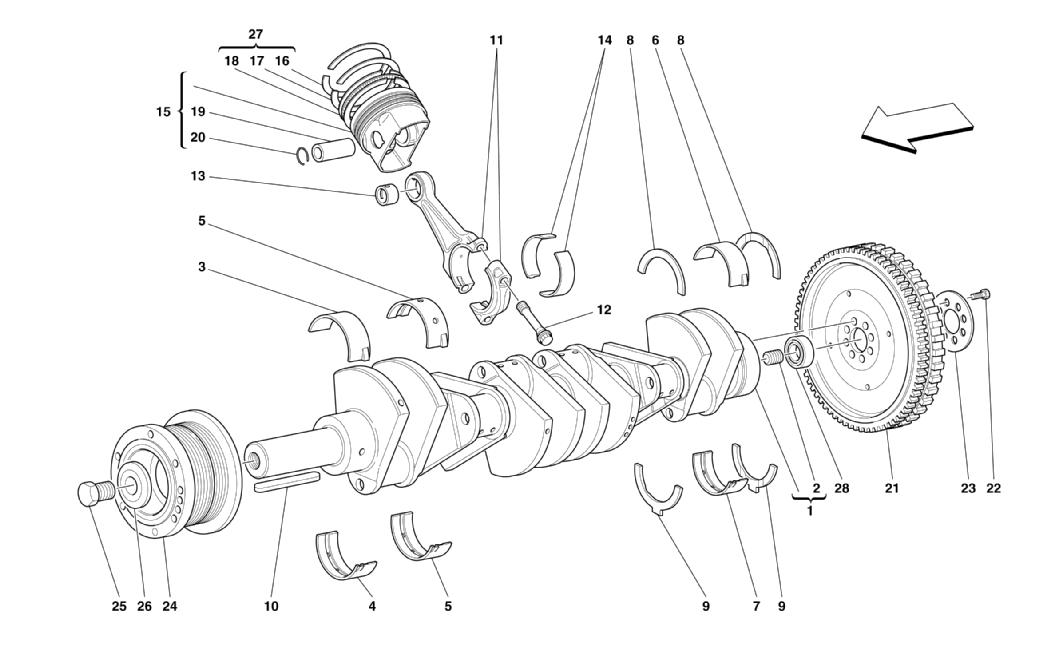

DRIVING SHAFT - CONNECTING RODS AND PISTONS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 182735 *Qty: 1 CRANKSHAFT $3,283.29
Location: 2 Prev | Next Part: 176396 *Qty: 1 THREADED PLUG $5.86
Location: 3 Prev | Next Part: 173486 *Qty: 1 HALF-BEARINGS COMPLETE SERIES -2 nd UNDERSIZE mm. 0,508 $1,843.54
Location: 3 Prev | Next Part: 194251 *Qty: 1 HALF-BEARINGS COMPLETE SERIES -NOMINAL -Red Call
Location: 3 Prev | Next Part: 173485 *Qty: 1 HALF-BEARINGS COMPLETE SERIES -1 st UNDERSIZE mm. 0,254 $1,843.54
Location: 8 Prev | Next Part: 164112 *Qty: 2 UPPER SHIM -1 st OVERSIZE mm. 0,127 -Not as spare part -With the half-bearings complete series Call
Location: 8 Prev | Next Part: 164111 *Qty: 2 UPPER SHIM -Not as spare part -With the half-bearings complete series $15.72
Location: 8 Prev | Next Part: 164113 *Qty: 2 UPPER SHIM -2 nd OVERSIZE mm. 0,254 -Not as spare part -With the half-bearings complete series Call
Location: 9 Prev | Next Part: 164108 *Qty: 2 LOWER SHIM -Not as spare part -With the half-bearings complete series $15.72
Location: 9 Prev | Next Part: 164110 *Qty: 2 LOWER SHIM -2 nd OVERSIZE mm. 0,254 -Not as spare part -With the half-bearings complete series Call
Location: 9 Prev | Next Part: 164109 *Qty: 2 LOWER SHIM -1 st OVERSIZE mm. 0,127 -Not as spare part -With the half-bearings complete series Call
Location: 10 Prev | Next Part: 144876 *Qty: 1 KEY $5.19
Location: 11 Prev | Next Part: 184426 *Qty: 12 COMPLETE CONNECTING ROD AND CAP $277.68
Location: 12 Prev | Next Part: 177159 *Qty: 24 CONNECTING ROD TIGHTENING SCREW $48.42
Location: 13 Prev | Next Part: 184909 *Qty: 12 BUSHING $37.20
Location: 14 Prev | Next Part: 173550 *Qty: 24 CONNECTING ROD HALF BEARING -Red $15.82
Location: 15 Prev | Next Part: 189515 *Qty: 12 PISTON WITH RINGS $363.34
Location: 16 Prev | Next Part: 180445 *Qty: 12 SEAL RING -1st groove -With complete series 194252 Call
Location: 17 Prev | Next Part: 180446 *Qty: 12 SEAL RING -2nd groove -With complete series 194252 Call
Location: 18 Prev | Next Part: 180447 *Qty: 12 OIL SCRAPING RING -3rd groove -With complete series 194252 Call
Location: 19 Prev | Next Part: 154717 *Qty: 12 PIN $38.24
Location: 20 Prev | Next Part: 178890 *Qty: 24 STOP RING $2.97
Location: 20 Prev | Next Part: 189521 *Qty: 24 STOP RING -Not as spare part -Replaced by 178890 $3.30
Location: 21 Prev | Next Part: 193051 *Qty: 1 ENGINE FLYWHEEL $1,308.17
Location: 22 Prev | Next Part: 103875 *Qty: 8 SCREW Superseded
Location: 23 Prev | Next Part: 103876 *Qty: 1 WASHER $10.96
Location: 24 Prev | Next Part: 168565 *Qty: 1 TORSION DAMPER Call
Location: 25 Prev | Next Part: 140925 *Qty: 1 SCREW Call
Location: 26 Prev | Next Part: 140922 *Qty: 1 WASHER Call
Location: 27 Prev | Next Part: 194252 *Qty: 12 PISTONS RINGS SET $195.79
Location: 28 Prev | Next Part: 103877 *Qty: 1 BEARING FOR SHAFT $29.17

* Quantity shown indicates the number of pieces used in the diagram.
