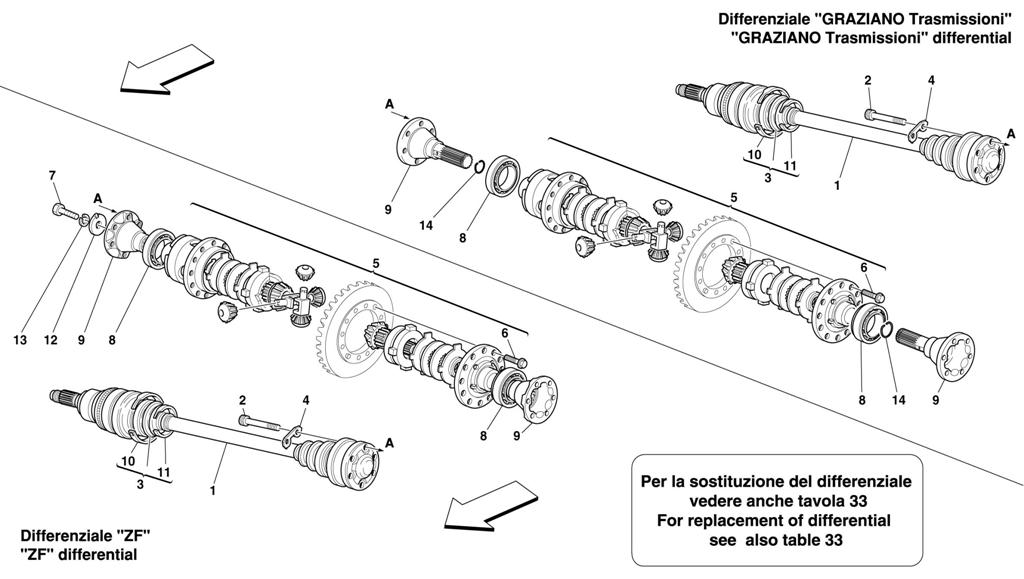

DIFFERENTIAL AND AXLE SHAFT -NOT FOR 456M GTA

Go to Split View

DIFFERENTIAL AND AXLE SHAFT -NOT FOR 456M GTA

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 165072 *Qty: 2 AXLE SHAFT $979.22
Location: 2 Prev | Next Part: 181910 *Qty: 12 SCREW Superseded
Location: 3 Prev | Next Part: 70000782 *Qty: 2 PROTECTION REPLACEMENT SET -Wheel/gearbox side -Not as spare part now -Replaced by 70000868 Call
Location: 3 Prev | Next Part: 70000867 *Qty: 2 PROTECTION REPLACEMENT SET -Gearbox side Superseded
Location: 3 Prev | Next Part: 70000868 *Qty: 2 PROTECTION REPLACEMENT SET -Wheel/gearbox side $159.09
Location: 4 Prev | Next Part: 149415 *Qty: 6 SCRAPING PLATE $2.15
Location: 5 Prev | Next Part: 183908 *Qty: 1 DIFFERENTIAL COMPLETE -Valid for "GRAZIANO Trasmissioni" differential Call
Location: 5 Prev | Next Part: 162924 *Qty: 1 DIFFERENTIAL COMPLETE -Valid for "ZF" differential $6,432.23
Location: 6 Prev | Next Part: 183909 *Qty: 12 SCREW -Valid for "GRAZIANO Trasmissioni" differential $7.17
Location: 6 Prev | Next Part: 162920 *Qty: 12 SCREW -Valid for "ZF" differential $3.41
Location: 7 Prev | Next Part: 153589 *Qty: 2 SCREW -Valid for "ZF" differential Call
Location: 8 Prev | Next Part: 125390 *Qty: 2 BEARING $185.17
Location: 9 Prev | Next Part: 139898 *Qty: 2 FLANGE FOR AXLE COUPLING -Valid for "ZF" differential $229.20
Location: 9 Prev | Next Part: 181615 *Qty: 2 FLANGE FOR AXLE COUPLING -Valid for "GRAZIANO Trasmissioni" differential $153.03
Location: 10 Prev | Next Part: 154214 *Qty: 4 BIG CLAMP -Not as spare part now -Replaced by 172347 $2.44
Location: 10 Prev | Next Part: 172347 *Qty: 4 BIG CLAMP $8.72
Location: 11 Prev | Next Part: 154213 *Qty: 4 LITTLE CLAMP $4.81
Location: 12 Prev | Next Part: 153591 *Qty: 2 SPACER -Valid for "ZF" differential $4.36
Location: 13 Prev | Next Part: 153590 *Qty: 2 RING -Valid for "ZF" differential $0.90
Location: 14 Prev | Next Part: 181616 *Qty: 2 FLEXIBLE RING -Valid for "GRAZIANO Trasmissioni" differential $2.38

* Quantity shown indicates the number of pieces used in the diagram.
