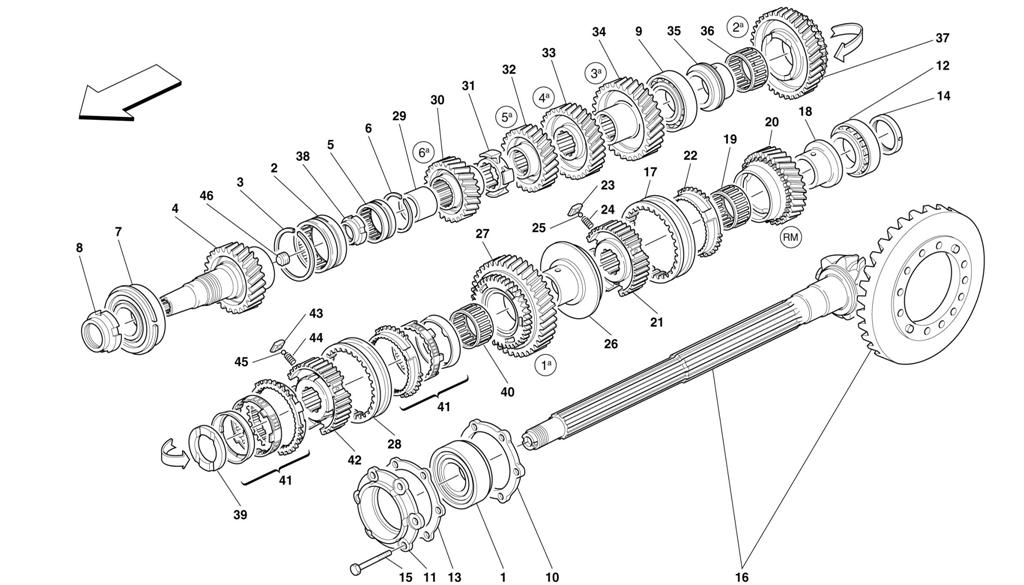

LAY SHAFT GEARS -NOT FOR 456 GTA

Go to Split View

LAY SHAFT GEARS -NOT FOR 456 GTA

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 144498 *Qty: 1 BEARING FOR DRIVEN SHAFT DIFFERENTIAL SIDE $109.62
Location: 2 Prev | Next Part: 144486 *Qty: 1 ROLLER BEARING $51.97
Location: 3 Prev | Next Part: 144511 *Qty: 1 STOP RING $1.08
Location: 4 Prev | Next Part: 154749 *Qty: 1 DRIVING GEAR -Z 31- Unavailable
Location: 4 Prev | Next Part: 161823 *Qty: 1 DRIVING GEAR -Z 30- -USA requeste only Unavailable
Location: 5 Prev | Next Part: 144476 *Qty: 1 ROLLER BEARING $46.22
Location: 6 Prev | Next Part: 144520 *Qty: 1 STOP RING $0.90
Location: 7 Prev | Next Part: 148188 *Qty: 1 BALL BEARING $158.19
Location: 8 Prev | Next Part: 148137 *Qty: 1 RING NUT $17.78
Location: 9 Prev | Next Part: 131056 *Qty: 1 ROLLER BEARING $199.75
Location: 10 Prev | Next Part: 143924 *Qty: 1 RING $56.31
Location: 11 Prev | Next Part: 143923 *Qty: 1 BUSHING $71.16
Location: 12 Prev | Next Part: 121822 *Qty: 1 ROLLER BEARING $414.10
Location: 13 Prev | Next Part: 155718 *Qty: 1 SPACER Thick. mm. 2.0 $40.48
Location: 13 Prev | Next Part: 155719 *Qty: 1 SPACER Thick. mm. 1.6 $65.70
Location: 13 Prev | Next Part: 155720 *Qty: 1 SPACER Thick. mm. 1.8 $33.96
Location: 13 Prev | Next Part: 155721 *Qty: 1 SPACER Thick. mm. 2.2 $28.79
Location: 13 Prev | Next Part: 155722 *Qty: 1 SPACER Thick. mm. 2.4 $18.51
Location: 14 Prev | Next Part: 122152 *Qty: 1 SPACER $153.89
Location: 15 Prev | Next Part: 16321434 *Qty: 6 SCREW $9.23
Location: 16 Prev | Next Part: 150876 *Qty: 1 CROWN WHEEL AND PINION COMPLETE R.11/40 $3,212.26
Location: 17 Prev | Next Part: 152198 *Qty: 1 SLEEVE Unavailable
Location: 18 Prev | Next Part: 152090 *Qty: 1 BUSHING $533.46
Location: 19 Prev | Next Part: 150004 *Qty: 1 ROLLER CAGE $20.69
Location: 20 Prev | Next Part: 155880 *Qty: 1 REVERSE GEAR -Z 34- $2,453.51
Location: 21 Prev | Next Part: 152203 *Qty: 1 SYNCHRONIZER BODY $327.32
Location: 22 Prev | Next Part: 152205 *Qty: 1 SYNCHRONIZER RING $341.00
Location: 23 Prev | Next Part: 152195 *Qty: 3 SMALL BLOCK $0.90
Location: 24 Prev | Next Part: 152196 *Qty: 3 SPRING $0.90
Location: 25 Prev | Next Part: 152197 *Qty: 3 BALL $3.68
Location: 26 Prev | Next Part: 152091 *Qty: 1 BUSHING $339.24
Location: 27 Prev | Next Part: 157251 *Qty: 1 COMPLETE PINION FOR 1ST GEAR -Z 45 $312.30
Location: 28 Prev | Next Part: 156931 *Qty: 1 SLEEVE Unavailable
Location: 29 Prev | Next Part: 143889 *Qty: 1 BUSHING $21.77
Location: 30 Prev | Next Part: 155775 *Qty: 1 PINION FOR 6TH GEAR -Z 27- Unavailable
Location: 31 Prev | Next Part: 143885 *Qty: 1 TRANSMITTING DISC $132.45
Location: 32 Prev | Next Part: 155773 *Qty: 1 PINION FOR 5TH GEAR -Z 29- Unavailable
Location: 33 Prev | Next Part: 155771 *Qty: 1 PINION FOR 4TH GEAR -Z 32- Unavailable
Location: 34 Prev | Next Part: 155769 *Qty: 1 PINION FOR 3RD GEAR -Z 35- Unavailable
Location: 35 Prev | Next Part: 143892 *Qty: 1 BUSHING $84.04
Location: 36 Prev | Next Part: 104254 *Qty: 1 ROLLER CAGE $14.84
Location: 37 Prev | Next Part: 157253 *Qty: 1 COMPLETE PINION FOR 2ND GEAR -Z 40 $744.11
Location: 38 Prev | Next Part: 144048 *Qty: 1 RING NUT $65.53
Location: 39 Prev | Next Part: 157375 *Qty: 1 SPACER $12.48
Location: 40 Prev | Next Part: 104254 *Qty: 1 ROLLER CAGE $14.84
Location: 41 Prev | Next Part: 159088 *Qty: 2 SYNCHRONIZER RINGS SERIES $835.35
Location: 42 Prev | Next Part: 157255 *Qty: 1 SYNCHRONIZER BODY $552.17
Location: 43 Prev | Next Part: 157051 *Qty: 3 SMALL BLOCK $10.32
Location: 44 Prev | Next Part: 157049 *Qty: 3 SPRING $1.54
Location: 45 Prev | Next Part: 157050 *Qty: 3 BALL $0.90
Location: 46 Prev | Next Part: 155577 *Qty: 1 PLUG $6.15

* Quantity shown indicates the number of pieces used in the diagram.
