FUEL TANK - FILLER NECK AND PUMPS

Go to Split View

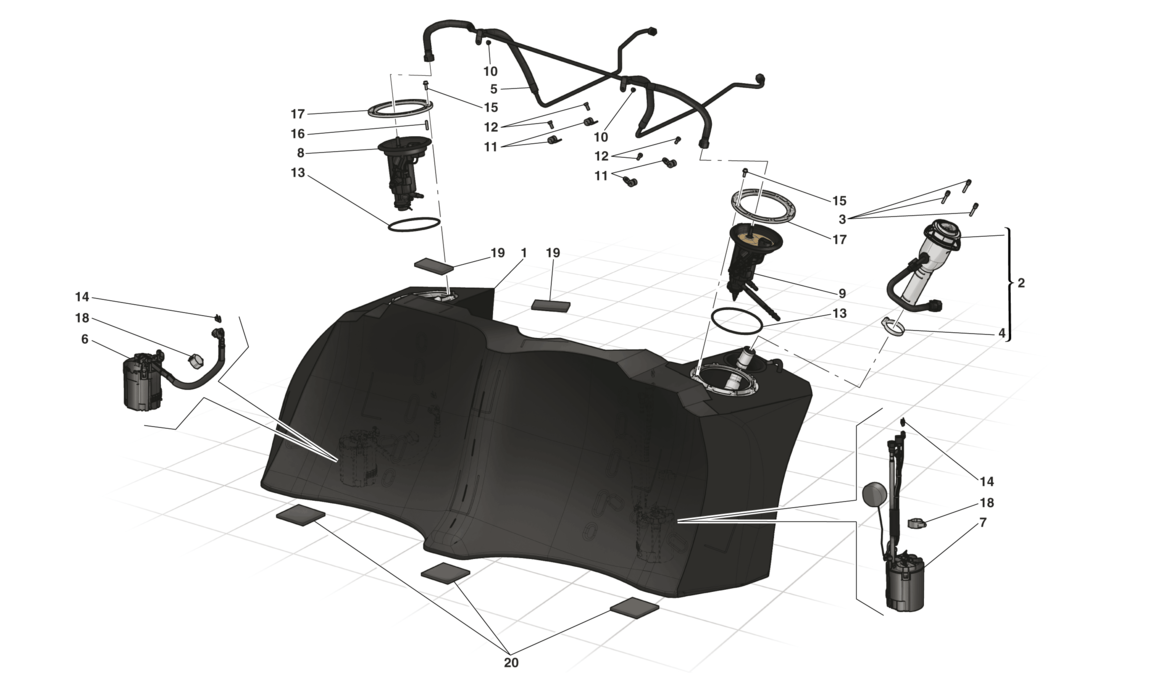

FUEL TANK - FILLER NECK AND PUMPS

Location Part # Quantity* Description Price Add To Cart
1 294263 1 FUEL TANK $5,875.29
2 293463 1 COMPL. FUEL FILLER NECK -No longer supplied- -Replaced by 305899- Unavailable
2 305899 1 COMPL. FUEL FILLER NECK $498.55
3 268916 3 SCREW $6.07
4 296781 1 SCREW COLLAR $11.19
5 304901 1 FUEL DELIVERY PIPE $1,265.62
6 272086 1 FUEL PUMP Unavailable
7 288255 1 FUEL PUMP $2,106.45
8 282784 1 RH FUEL PUMP FILTER $842.00
9 282785 1 LH FUEL PUMP FILTER $1,342.99
10 160472 2 NUT $2.86
11 295192 4 BRACKET WITH SHEATH $26.51
12 13026924 4 SCREW Unavailable
13 239412 2 O-RING Superseded
14 238688 2 CONNECTOR $51.72
15 256323 16 SCREW Unavailable
16 11001124 1 STUD BOLT $86.88
17 290071 2 FASTENER RING $331.50
18 254078 2 CLIP $2.07
19 291310 2 PLUG $9.05
20 291311 3 PLUG $9.05

* Quantity shown indicates the number of pieces used in the diagram.
