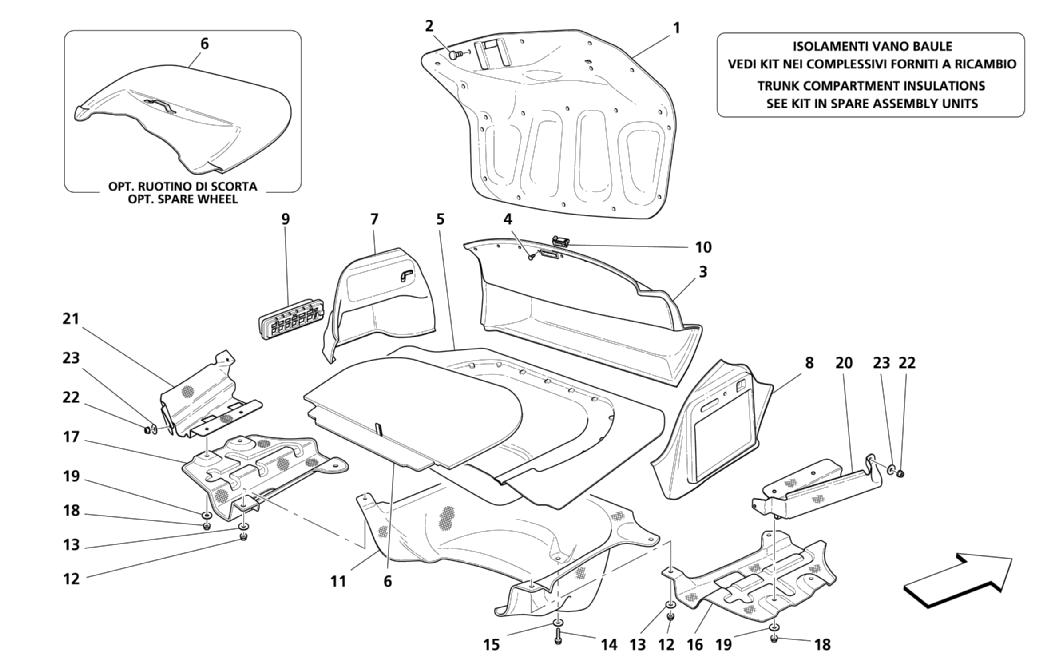

TRUNK HOOD COMPARTMENT TRIMS - AIR INLET AND HEATH SHIELDS

Go to Split View

TRUNK HOOD COMPARTMENT TRIMS - AIR INLET AND HEATH SHIELDS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66734400 *Qty: 1 INNER TRUNK TRIM
- Valid for USA and CDN
$74.33
Location: 1 Prev | Next Part: 65821900 *Qty: 1 INNER TRUNK TRIM
- Not for USA and CDN
$64.20
Location: 2 Prev | Next Part: 7560860 *Qty: 21 FIXING BUTTON $0.90
Location: 3 Prev | Next Part: 66739800 *Qty: 1 SEAT BACK CARPET
- Optional - Windstop
$211.40
Location: 3 Prev | Next Part: 66732700 *Qty: 1 SEAT BACK CARPET
- Standard
$170.68
Location: 4 Prev | Next Part: 14591987 *Qty: 6 FIXING BUTTON $0.90
Location: 4 Prev | Next Part: 14591687 *Qty: 5 FIXING BUTTON $0.90
Location: 5 Prev | Next Part: 66739700 *Qty: 1 TRUNK COVER CARPET AND WHEEL STEP $119.01
Location: 6 Prev | Next Part: 66190600 *Qty: 1 WHEEL COVER CARPET
- Standard
$122.93
Location: 6 Prev | Next Part: 67243600 *Qty: 1 WHEEL COVER CARPET
- Optional - Spare wheel - Valid from car Ass. Nr. 9814
$198.87
Location: 6 Prev | Next Part: 66245100 *Qty: 1 WHEEL COVER CARPET
- Optional - Spare wheel - Valid till car Ass. Nr. 9813
$425.92
Location: 7 Prev | Next Part: 66916500 *Qty: 1 L.H. TRUNK COVER CARPET
- Standard
$230.19
Location: 7 Prev | Next Part: 66585300 *Qty: 1 L.H. TRUNK COVER CARPET
- Optional - CD charger
$170.68
Location: 8 Prev | Next Part: 66585200 *Qty: 1 R.H. TRUNK COVER CARPET-BOX ASSEMBLY $142.50
Location: 9 Prev | Next Part: 60509933 *Qty: 1 AIR OUTLET SMALL $20.21
Location: 10 Prev | Next Part: 60608165 *Qty: 1 DOME LAMP $9.40
Location: 11 Prev | Next Part: 66064400 *Qty: 1 HEAT SHIELD FOR SPARE WHEEL CASING
- Valid till car Ass. Nr. 9813
$513.39
Location: 11 Prev | Next Part: 67246000 *Qty: 1 HEAT SHIELD FOR SPARE WHEEL CASING
- Valid from car Ass. Nr. 9814
$569.98
Location: 12 Prev | Next Part: 14059111 *Qty: 4 NUT $0.90
Location: 13 Prev | Next Part: 12624124 *Qty: 4 WASHER $1.81
Location: 14 Prev | Next Part: 13273824 *Qty: 1 SCREW $0.90
Location: 15 Prev | Next Part: 12624177 *Qty: 1 WASHER $0.90
Location: 16 Prev | Next Part: 66196000 *Qty: 1 HEAT SHIELD FOR R.H. SIDE EXHAUST $184.78
Location: 17 Prev | Next Part: 66196100 *Qty: 1 HEAT SHIELD FOR L.H. SIDE EXHAUST $184.78
Location: 18 Prev | Next Part: 14059111 *Qty: 4 NUT $0.90
Location: 19 Prev | Next Part: 12624124 *Qty: 4 WASHER $1.81
Location: 20 Prev | Next Part: 66959700 *Qty: 1 HEAT SHIELD FOR R.H. LATERAL EXHAUST $94.75
Location: 21 Prev | Next Part: 66959800 *Qty: 1 HEAT SHIELD FOR L.H. LATERAL EXHAUST $94.75
Location: 22 Prev | Next Part: 14059111 *Qty: 4 NUT $0.90
Location: 23 Prev | Next Part: 12624124 *Qty: 4 WASHER $1.81

* Quantity shown indicates the number of pieces used in the diagram.
