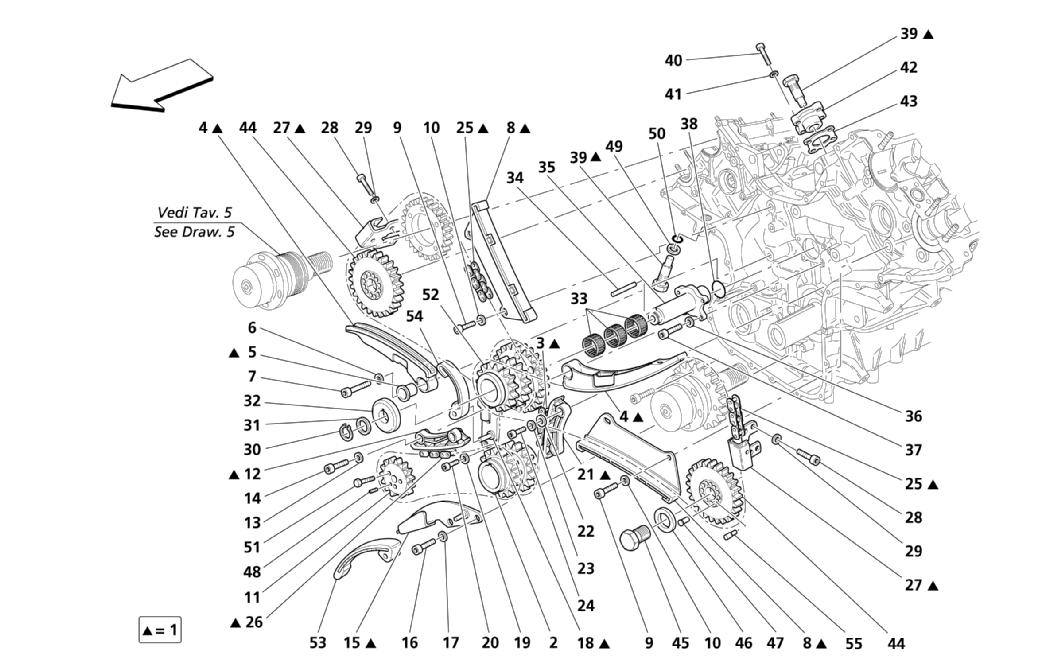

TIMING - CONTROLS

Go to Split View

TIMING - CONTROLS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 193716 *Qty: 1 TIMING CONTROL ASSEMBLY
- Valid from engine Nr. 72882
Call
Location: 1 Prev | Next Part: 187202 *Qty: 1 TIMING CONTROL ASSEMBLY
- Valid for F1 - Not for F1 USA and CDN - Valid till engine Nr. 72881
$673.33
Location: 1 Prev | Next Part: 189793 *Qty: 1 TIMING CONTROL ASSEMBLY
- Not for F1 - Valid for F1 USA and CDN - Valid till engine Nr. 72881
$829.72
Location: 2 Prev | Next Part: 186854 *Qty: 1 ENGINE SHAFT TOOTHED WHEEL $146.86
Location: 3 Prev | Next Part: 175286 *Qty: 1 TRANSMISSION CHAIN $47.00
Location: 4 Prev | Next Part: 186184 *Qty: 2 MOBILE GUIDE SHOE $95.68
Location: 5 Prev | Next Part: 175303 *Qty: 2 BUSHING $13.85
Location: 6 Prev | Next Part: 10569373 *Qty: 2 WASHER $0.90
Location: 7 Prev | Next Part: 14306424 *Qty: 2 SCREW $0.90
Location: 8 Prev | Next Part: 186185 *Qty: 2 FIXED TENSION $61.55
Location: 9 Prev | Next Part: 14306224 *Qty: 4 SCREW $0.90
Location: 10 Prev | Next Part: 11193874 *Qty: 4 WASHER $0.90
Location: 11 Prev | Next Part: 189564 *Qty: 1 PUMP CONTROM TOOTHED WHEEL $510.35
Location: 12 Prev | Next Part: 186186 *Qty: 1 FIXED TENSION $29.65
Location: 13 Prev | Next Part: 11197774 *Qty: 2 WASHER Superseded
Location: 14 Prev | Next Part: 14305424 *Qty: 2 SCREW Superseded
Location: 15 Prev | Next Part: 185724 *Qty: 1 GUIDE SHOE SUPPORT $11.88
Location: 16 Prev | Next Part: 14305724 *Qty: 2 SCREW $0.90
Location: 17 Prev | Next Part: 11197774 *Qty: 2 WASHER Superseded
Location: 18 Prev | Next Part: 186159 *Qty: 1 GUIDE SHOE SUPPORT $32.44
Location: 19 Prev | Next Part: 11197774 *Qty: 2 WASHER Superseded
Location: 20 Prev | Next Part: 14305724 *Qty: 2 SCREW $0.90
Location: 21 Prev | Next Part: 186181 *Qty: 1 FIXED TENSION $25.15
Location: 22 Prev | Next Part: 12647624 *Qty: 2 WASHER $0.90
Location: 23 Prev | Next Part: 11197774 *Qty: 2 WASHER Superseded
Location: 24 Prev | Next Part: 14432224 *Qty: 2 SCREW Superseded
Location: 25 Prev | Next Part: 189571 *Qty: 2 TIMING CONTROL CHAIN
- Not for F1 - Valid for F1 USA and CDN - Valid till engine Nr. 72881
$72.64
Location: 25 Prev | Next Part: 175298 *Qty: 2 TIMING CONTROL CHAIN
- Valid for F1 - Not for F1 USA and CDN - Valid till engine Nr. 72881
$50.75
Location: 25 Prev | Next Part: 193616 *Qty: 2 TIMING CONTROL CHAIN
- Valid from engine Nr. 72882
$79.02
Location: 26 Prev | Next Part: 175314 *Qty: 1 CHAIN $48.98
Location: 27 Prev | Next Part: 189569 *Qty: 2 UPPER FIXED TENSION
- Not for F1 - Valid for F1 USA and CDN - Valid for all versions from engine Nr. 72882
$36.96
Location: 27 Prev | Next Part: 186187 *Qty: 2 UPPER FIXED TENSION
- Valid for F1 - Not for F1 USA and CDN - Valid till engine Nr. 72881
$23.49
Location: 28 Prev | Next Part: 14305934 *Qty: 8 SCREW $0.90
Location: 29 Prev | Next Part: 11197774 *Qty: 8 WASHER Superseded
Location: 30 Prev | Next Part: 11066876 *Qty: 1 Seeger Ring $0.90
Location: 31 Prev | Next Part: 180187 *Qty: 1 RING $0.90
Location: 32 Prev | Next Part: 175281 *Qty: 1 SHOULDER $22.11
Location: 33 Prev | Next Part: 175282 *Qty: 3 ROLLER CAGE $11.39
Location: 34 Prev | Next Part: 14159370 *Qty: 1 FLEXIBLE PIN $0.90
Location: 35 Prev | Next Part: 188436 *Qty: 1 SUPPORT $1,229.22
Location: 36 Prev | Next Part: 11181574 *Qty: 4 WASHER $0.90
Location: 37 Prev | Next Part: 14304224 *Qty: 4 SCREW $0.90
Location: 38 Prev | Next Part: 104212 *Qty: 1 O.R. GASKET $0.90
Location: 39 Prev | Next Part: 180316 *Qty: 2 HYDRAULIC TIGHTENER $118.34
Location: 40 Prev | Next Part: 14432224 *Qty: 4 SCREW Superseded
Location: 41 Prev | Next Part: 11197774 *Qty: 4 WASHER Superseded
Location: 42 Prev | Next Part: 190060 *Qty: 1 BUSHING FOR TIGHTENER
- Not for F1 - Valid for F1 USA and CDN - Valid for all versions from engine Nr. 72882
$43.18
Location: 42 Prev | Next Part: 185889 *Qty: 1 BUSHING FOR TIGHTENER
- Valid for F1 - Not for F1 USA and CDN - Valid till engine Nr. 72881
$28.33
Location: 43 Prev | Next Part: 185854 *Qty: 1 GASKET
- Supplied also in the cylinder heads gasket revision kit (cod. 980020001)
$3.76
Location: 44 Prev | Next Part: 187530 *Qty: 2 TOOTHED WHEEL FOR SHAFT
- Not for F1 - Valid for F1 USA and CDN - Valid for all versions from engine Nr. 72882
$72.03
Location: 44 Prev | Next Part: 186173 *Qty: 2 TOOTHED WHEEL FOR SHAFT
- Valid for F1 - Not for F1 USA and CDN - Valid till engine Nr. 72881
$72.82
Location: 45 Prev | Next Part: 193831 *Qty: 2 SCREW Call
Location: 46 Prev | Next Part: 175751 *Qty: 2 WASHER $5.67
Location: 47 Prev | Next Part: 176610 *Qty: 2 CENTERING DOWEL $3.61
Location: 48 Prev | Next Part: 189779 *Qty: 1 DOWEL $2.50
Location: 49 Prev | Next Part: 190171 *Qty: 1 SPACER
- Not for F1 - Valid for F1 USA and CDN - Valid for all versions from engine Nr. 72882
$8.03
Location: 50 Prev | Next Part: 192069 *Qty: 1 O.R. GASKET
- Not for F1 - Valid for F1 USA and CDN - Valid for all versions from engine Nr. 72882
$0.90
Location: 51 Prev | Next Part: 189563 *Qty: 3 SCREW $33.75
Location: 52 Prev | Next Part: 187524 *Qty: 1 TRANSMISSION TOOTHED WHEEL
- Not for F1 - Valid for F1 USA and CDN - Valid till engine Nr. 72881
$1,255.84
Location: 52 Prev | Next Part: 186176 *Qty: 1 TRANSMISSION TOOTHED WHEEL
- Valid for F1 - Not for F1 USA and CDN - Valid till engine Nr. 72881
$139.36
Location: 52 Prev | Next Part: 193565 *Qty: 1 TRANSMISSION TOOTHED WHEEL
- Valid from engine Nr. 72882
$134.38
Location: 53 Prev | Next Part: 185725 *Qty: 1 CHAIN TENSIONER $55.59
Location: 54 Prev | Next Part: 186160 *Qty: 1 CHAIN TENSIONER $27.63
Location: 55 Prev | Next Part: 194191 *Qty: 2 DOWEL Call

* Quantity shown indicates the number of pieces used in the diagram.
