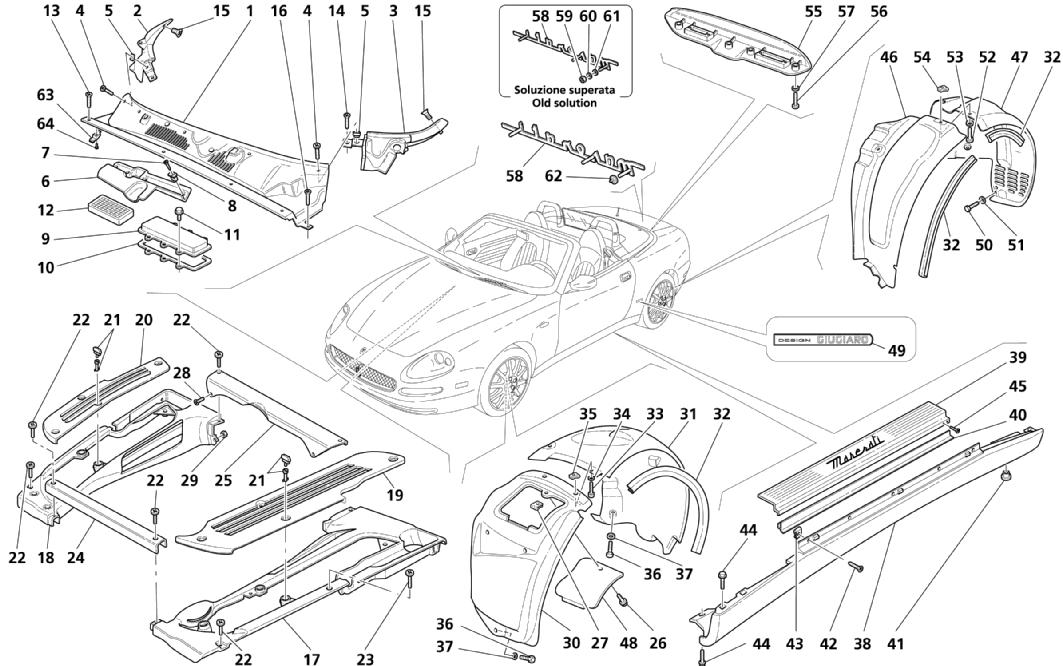

SHIELDS AND OUTSIDE FINISHING

Go to Split View

SHIELDS AND OUTSIDE FINISHING

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66365800 *Qty: 1 CENTRAL UNDER WINDSHIELD PLATE
- Not for GD
$47.77
Location: 1 Prev | Next Part: 66664400 *Qty: 1 CENTRAL UNDER WINDSHIELD PLATE
- Valid for GD
$118.24
Location: 2 Prev | Next Part: 66664200 *Qty: 1 R.H. UNDER WINDSHIELD PLATE
- Valid for GD
$90.82
Location: 2 Prev | Next Part: 66373400 *Qty: 1 R.H. UNDER WINDSHIELD PLATE
- Not for GD
$12.53
Location: 3 Prev | Next Part: 66373600 *Qty: 1 L.H. UNDER WINDSHIELD PLATE
- Not for GD
$12.53
Location: 3 Prev | Next Part: 66664300 *Qty: 1 L.H. UNDER WINDSHIELD PLATE
- Valid for GD
$90.82
Location: 4 Prev | Next Part: 15672777 *Qty: 2 SCREW $0.90
Location: 5 Prev | Next Part: 7754387 *Qty: 2 BLOCK $0.90
Location: 6 Prev | Next Part: 66664500 *Qty: 1 SHIELD FOR WATER
- Valid for GD
$43.07
Location: 6 Prev | Next Part: 66413900 *Qty: 1 SHIELD FOR WATER
- Not for GD
$37.58
Location: 7 Prev | Next Part: 15783377 *Qty: 4 SCREW $2.29
Location: 8 Prev | Next Part: 14214880 *Qty: 4 BLOCK $0.90
Location: 9 Prev | Next Part: 388100435 *Qty: 1 ANTIPOLLEN FILTER SHIELD
- Not for GD
$18.02
Location: 9 Prev | Next Part: 388110436 *Qty: 1 ANTIPOLLEN FILTER SHIELD
- Valid for GD
$20.36
Location: 10 Prev | Next Part: 388300489 *Qty: 1 GASKET $5.65
Location: 11 Prev | Next Part: 10711227 *Qty: 6 SCREW $2.29
Location: 12 Prev | Next Part: 386110170 *Qty: 1 AIR INTAKE GRILL
- Valid for GD
$55.28
Location: 12 Prev | Next Part: 386100170 *Qty: 1 AIR INTAKE GRILL
- Not for GD
$58.22
Location: 13 Prev | Next Part: 15783377 *Qty: 4 SCREW $2.29
Location: 14 Prev | Next Part: 15783377 *Qty: 2 SCREW $2.29
Location: 15 Prev | Next Part: 15917217 *Qty: 4 SCREW $0.90
Location: 16 Prev | Next Part: 15783377 *Qty: 2 SCREW $2.29
Location: 17 Prev | Next Part: 66415900 *Qty: 1 L.H. SIDE COVER $53.06
Location: 18 Prev | Next Part: 66415800 *Qty: 1 R.H. SIDE COVER $53.06
Location: 19 Prev | Next Part: 66492600 *Qty: 1 L.H. GRILL $42.52
Location: 20 Prev | Next Part: 66492500 *Qty: 1 R.H. GRILL $71.49
Location: 21 Prev | Next Part: 66603000 *Qty: 8 PIN Superseded
Location: 22 Prev | Next Part: 67194000 *Qty: 10 SCREW $1.53
Location: 23 Prev | Next Part: 67194100 *Qty: 2 SCREW $1.67
Location: 24 Prev | Next Part: 66069100 *Qty: 1 ENGINE COMPARTMENT FRONT COVER $45.69
Location: 25 Prev | Next Part: 66110800 *Qty: 1 ENGINE COMPARTMENT REAR COVER Call
Location: 26 Prev | Next Part: 15689675 *Qty: 2 SCREW $0.90
Location: 27 Prev | Next Part: 14368974 *Qty: 2 BRACKET $8.12
Location: 28 Prev | Next Part: 13299177 *Qty: 2 SCREW $0.90
Location: 29 Prev | Next Part: 15896411 *Qty: 2 NUT Superseded
Location: 30 Prev | Next Part: 66069400 *Qty: 1 L.H. FRONT WHEEL COMPARTMENT GRAVEL GUARD FRONT SIDE
- Valid from car Ass. Nr. 8137
$99.37
Location: 30 Prev | Next Part: 67054200 *Qty: 1 L.H. FRONT WHEEL COMPARTMENT GRAVEL GUARD FRONT SIDE
- Complete With door for light inspection (pos. 48) - Valid till car Ass. Nr. 8136 - Valid till stock exhaustion after stock exhaustion replaced by 66069400 + 67233000 + 15689675
$144.53
Location: 30 Prev | Next Part: 67054300 *Qty: 1 R.H. FRONT WHEEL COMPARTMENT GRAVEL GUARD FRONT SIDE
- Complete With door for light inspection (pos. 48) - Valid till car Ass. Nr. 8136 - Valid till stock exhaustion after stock exhaustion replaced by 66069500 + 67233100 + 15689675
$144.53
Location: 30 Prev | Next Part: 66069500 *Qty: 1 R.H. FRONT WHEEL COMPARTMENT GRAVEL GUARD FRONT SIDE
- Valid from car Ass. Nr. 8137
$120.46
Location: 31 Prev | Next Part: 386101365 *Qty: 1 L.H. FRONT WHEEL COMPARMENT GRAVEL GUARD FRONT SIDE $205.85
Location: 31 Prev | Next Part: 386101366 *Qty: 1 R.H. FRONT WHEEL COMPARTMENT GRAVEL GUARD REAR SIDE
- Supplied in meters - (Minimum quantity 1m. or multiples)
$205.85
Location: 32 Prev | Next Part: 361000150 *Qty: 1 GASKET $8.84
Location: 33 Prev | Next Part: 15689807 *Qty: 4 SCREW $0.90
Location: 34 Prev | Next Part: 12638177 *Qty: 4 WASHER Superseded
Location: 35 Prev | Next Part: 386300326 *Qty: 4 CLIP $3.19
Location: 36 Prev | Next Part: 15689807 *Qty: 20 SCREW $0.90
Location: 37 Prev | Next Part: 12638177 *Qty: 20 WASHER Superseded
Location: 38 Prev | Next Part: 980001072 *Qty: 1 R.H. LATERAL SHIELD $764.15
Location: 38 Prev | Next Part: 980001071 *Qty: 1 L.H. LATERAL SHIELD $764.15
Location: 39 Prev | Next Part: 386100313 *Qty: 1 L.H. UNDER DOOR MOULDING $368.45
Location: 39 Prev | Next Part: 386100314 *Qty: 1 R.H. UNDER DOOR MOULDING $368.45
Location: 40 Prev | Next Part: 386100345 *Qty: 2 GASKET $12.17
Location: 41 Prev | Next Part: 66582800 *Qty: 4 PLUG $33.16
Location: 42 Prev | Next Part: 15532677 *Qty: 26 SCREW $2.13
Location: 43 Prev | Next Part: 7663916 *Qty: 26 BLOCK $0.90
Location: 44 Prev | Next Part: 11730624 *Qty: 8 SCREW $0.90
Location: 45 Prev | Next Part: 12678870 *Qty: 6 SCREW $0.90
Location: 46 Prev | Next Part: 66243900 *Qty: 1 L.H. WHEEL GRAVEL GUARD FRONT PART $121.26
Location: 46 Prev | Next Part: 66243800 *Qty: 1 R.H. WHEEL GRAVEL GUARD FRONT PART $150.53
Location: 47 Prev | Next Part: 66069700 *Qty: 1 L.H. REAR WHEEL GRAVEL GUARD REAR PART $143.92
Location: 47 Prev | Next Part: 66069600 *Qty: 1 R.H. REAR WHEEL GRAVEL GUARD REAR PART $143.92
Location: 48 Prev | Next Part: 67054500 *Qty: 1 R.H. DOOR FOR LIGHT INSPECTION
- Valid till car Ass. Nr. 8136
$22.04
Location: 48 Prev | Next Part: 67054600 *Qty: 1 L.H. DOOR FOR LIGHT INSPECTION
- Valid till car Ass. Nr. 8136
$22.04
Location: 48 Prev | Next Part: 67233100 *Qty: 1 L.H. DOOR FOR LIGHT INSPECTION
- Valid from car Ass. Nr. 8137
Call
Location: 48 Prev | Next Part: 67233000 *Qty: 1 R.H. DOOR FOR LIGHT INSPECTION
- Valid from car Ass. Nr. 8137
$10.35
Location: 49 Prev | Next Part: 67027100 *Qty: 2 GIUGIARO DESIGN PLATE $8.15
Location: 50 Prev | Next Part: 15689807 *Qty: 18 SCREW $0.90
Location: 51 Prev | Next Part: 12638177 *Qty: 18 WASHER Superseded
Location: 52 Prev | Next Part: 15689807 *Qty: 2 SCREW $0.90
Location: 53 Prev | Next Part: 12638177 *Qty: 2 WASHER Superseded
Location: 54 Prev | Next Part: 386300326 *Qty: 2 CLIP $3.19
Location: 55 Prev | Next Part: 386100349 *Qty: 1 PLATE $274.95
Location: 56 Prev | Next Part: 13283514 *Qty: 2 SCREW $2.29
Location: 56 Prev | Next Part: 13283217 *Qty: 2 SCREW $1.56
Location: 57 Prev | Next Part: 12642801 *Qty: 4 WASHER $0.90
Location: 58 Prev | Next Part: 66607300 *Qty: 1 MASERATI MARK
- Valid till car Ass. Nr. 8644
$164.42
Location: 58 Prev | Next Part: 67197600 *Qty: 1 MASERATI MARK
- Valid from car Ass. Nr. 8645
$19.58
Location: 59 Prev | Next Part: 16101711 *Qty: 3 NUT
- Valid till car Ass. Nr. 8644
$0.90
Location: 60 Prev | Next Part: 12639401 *Qty: 3 WASHER
- Valid till car Ass. Nr. 8644
$0.90
Location: 61 Prev | Next Part: 384700357 *Qty: 3 GASKET
- Valid till car Ass. Nr. 8644
$0.90
Location: 62 Prev | Next Part: 60324506 *Qty: 3 CLIP
- Valid from car Ass. Nr. 8645
Superseded
Location: 63 Prev | Next Part: 66058000 *Qty: 3 BRACKET $2.52
Location: 64 Prev | Next Part: 15918177 *Qty: 3 SCREW $1.01

* Quantity shown indicates the number of pieces used in the diagram.
