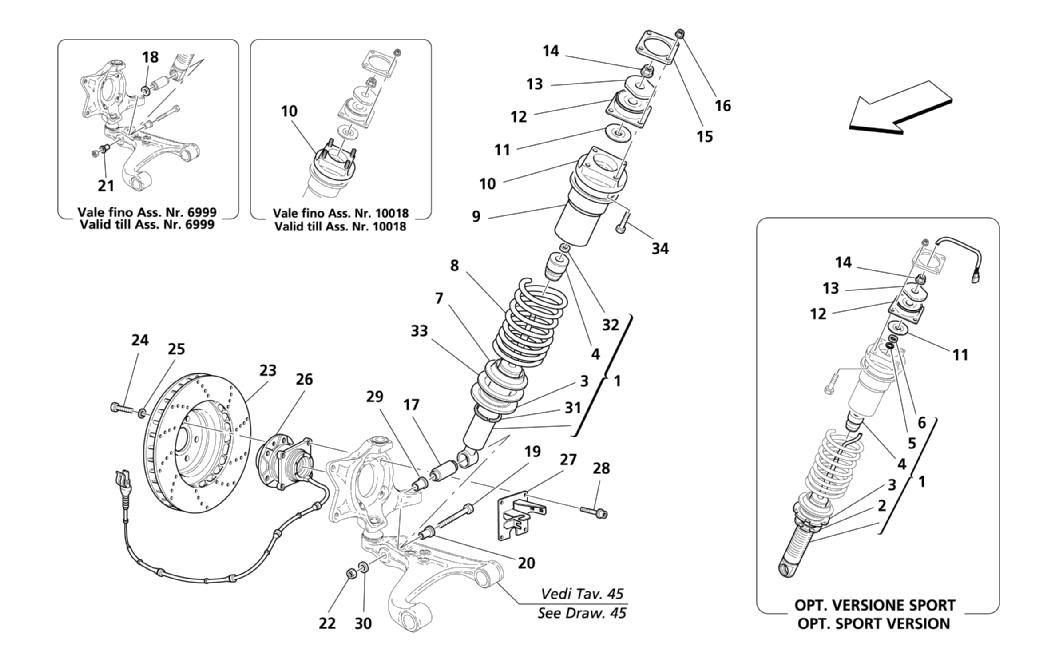

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 182777 *Qty: 2 FRONT SHOCK ABSORBER
- Optional - Version sport
$1,282.03
Location: 1 Prev | Next Part: 191418 *Qty: 2 FRONT SHOCK ABSORBER
- Standard
$381.73
Location: 2 Prev | Next Part: 174726 *Qty: 2 RING NUT
- Optional - Version sport
$94.86
Location: 3 Prev | Next Part: 386601380 *Qty: 2 LOWER SPACER
- Standard
$91.61
Location: 3 Prev | Next Part: 183020 *Qty: 2 LOWER SPACER
- Optional - Version sport
$568.42
Location: 4 Prev | Next Part: 386600328 *Qty: 2 SHOCK ABSORBER PAD
- Standard
$87.10
Location: 4 Prev | Next Part: 189998 *Qty: 2 SHOCK ABSORBER PAD
- Optional - Version sport
$113.72
Location: 5 Prev | Next Part: 183594 *Qty: 2 FLEXIBLE RING
- Optional - Version sport
$30.07
Location: 6 Prev | Next Part: 183595 *Qty: 2 BUSHING
- Optional - Version sport
$44.71
Location: 7 Prev | Next Part: 188994 *Qty: 2 LOWER SPACER $6.08
Location: 8 Prev | Next Part: 386600336 *Qty: 2 SUSPENSION SPRING Superseded
Location: 9 Prev | Next Part: 188993 *Qty: 2 UPPER SPACER $10.63
Location: 10 Prev | Next Part: 192646 *Qty: 2 SPRING SUPPORT SPACER
- Valid from car Ass. Nr. 10019
Call
Location: 10 Prev | Next Part: 191056 *Qty: 2 SPRING SUPPORT SPACER
- Valid till car Ass. Nr. 10018
$61.86
Location: 11 Prev | Next Part: 193235 *Qty: 2 WASHER
- Standard
$1.81
Location: 11 Prev | Next Part: 183016 *Qty: 2 WASHER
- Optional - Version sport
$11.41
Location: 12 Prev | Next Part: 183015 *Qty: 2 HYPERBLOCK
- Optional - Version sport
$60.13
Location: 12 Prev | Next Part: 386600109 *Qty: 2 HYPERBLOCK
- Standard
$49.34
Location: 13 Prev | Next Part: 387000340 *Qty: 2 WASHER
- Standard
$3.05
Location: 13 Prev | Next Part: 189110 *Qty: 2 WASHER
- Optional - Version sport
$2.76
Location: 14 Prev | Next Part: 183417 *Qty: 2 NUT
- Optional - Version sport
$2.30
Location: 14 Prev | Next Part: 137826 *Qty: 2 NUT
- Standard
$4.22
Location: 15 Prev | Next Part: 191055 *Qty: 2 SPACER FOR SHOCK ABSORBER $33.16
Location: 16 Prev | Next Part: 14058521 *Qty: 8 NUT $2.37
Location: 17 Prev | Next Part: 157630 *Qty: 2 BALL JOINT $72.50
Location: 18 Prev | Next Part: 386600391 *Qty: 2 SPACER WASHER
- Valid till car Ass. Nr. 6999
$29.71
Location: 19 Prev | Next Part: 16241234 *Qty: 2 SCREW $7.98
Location: 20 Prev | Next Part: 187059 *Qty: 2 BUSHING $11.37
Location: 21 Prev | Next Part: 187081 *Qty: 2 BUSHING
- Valid till car Ass. Nr. 6999
$8.85
Location: 22 Prev | Next Part: 14076011 *Qty: 2 NUT $5.11
Location: 23 Prev | Next Part: 387210321 *Qty: 2 FRONT BRAKE DISC $394.97
Location: 24 Prev | Next Part: 16043411 *Qty: 4 SCREW $1.29
Location: 25 Prev | Next Part: 10571779 *Qty: 4 WASHER $0.90
Location: 26 Prev | Next Part: 185564 *Qty: 2 BEARING FOR WHEEL $1,223.34
Location: 27 Prev | Next Part: 183586 *Qty: 1 PLATE FOR L.H. HUB HOLDER $54.81
Location: 27 Prev | Next Part: 183585 *Qty: 1 PLATE FOR R.H. HUB HOLDER $54.81
Location: 28 Prev | Next Part: 191238 *Qty: 8 SCREW $6.93
Location: 29 Prev | Next Part: 191823 *Qty: 2 BUSHING
- Valid from car Ass. Nr. 7000
$11.72
Location: 30 Prev | Next Part: 10738021 *Qty: 2 WASHER
- Valid from car Ass. Nr. 7000
$1.72
Location: 31 Prev | Next Part: 386601381 *Qty: 2 SPACER STOP RING
- Standard
$4.29
Location: 32 Prev | Next Part: 386600329 *Qty: 2 SPACER FOR PAD SUPPORT
- Standard
$22.81
Location: 33 Prev | Next Part: 386601393 *Qty: 2 THICKNESS - MM. 2,5
- Standard
$4.70
Location: 33 Prev | Next Part: 386601394 *Qty: 2 THICKNESS - MM. 5
- Standard
$5.67
Location: 34 Prev | Next Part: 16044224 *Qty: 4 SCREW
- Valid from car Ass. Nr. 10019
$0.90

* Quantity shown indicates the number of pieces used in the diagram.
