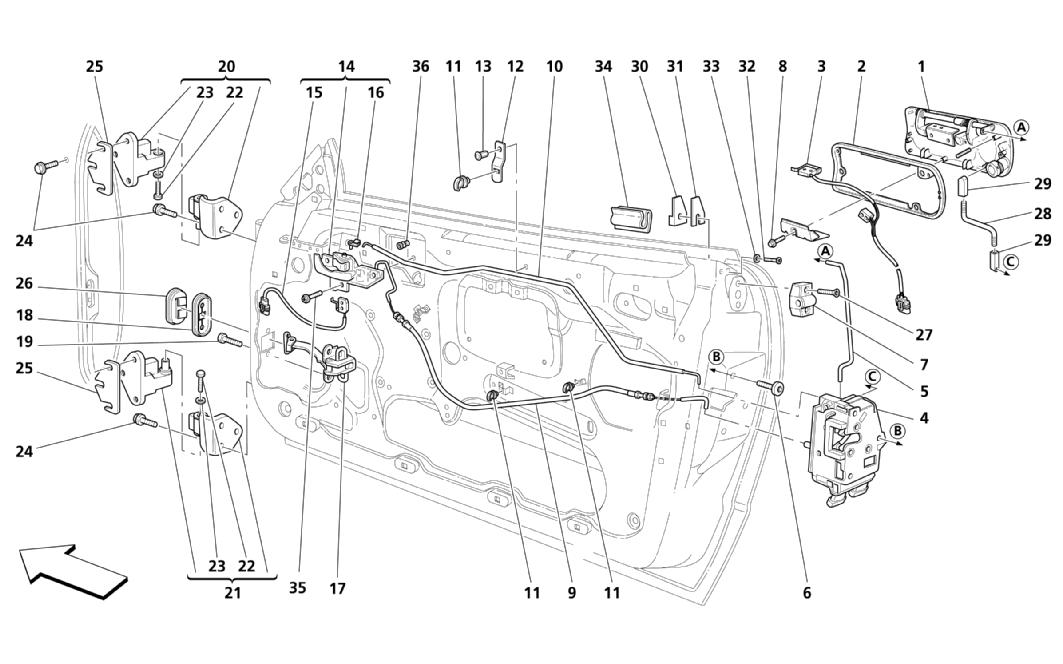

DOORS - OPENING CONTROL AND HINGES

Go to Split View

DOORS - OPENING CONTROL AND HINGES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 980000917 *Qty: 1 L.H. DOOR OUTSIDE HANDLE $342.93
Location: 1 Prev | Next Part: 980000918 *Qty: 1 R.H. DOOR OUTSIDE HANDLE $342.93
Location: 2 Prev | Next Part: 980000965 *Qty: 1 L.H. HANDLE GASKET $47.91
Location: 2 Prev | Next Part: 980000966 *Qty: 1 R.H. HANDLE GASKET $36.84
Location: 3 Prev | Next Part: 980000963 *Qty: 1 L.H. MICROSWITCH AND CABLE $214.53
Location: 3 Prev | Next Part: 980000964 *Qty: 1 R.H. MICROSWITCH AND CABLE $158.16
Location: 4 Prev | Next Part: 67294900 *Qty: 1 L.H. DOOR LOCK $86.92
Location: 4 Prev | Next Part: 67294800 *Qty: 1 R.H. DOOR LOCK $86.92
Location: 5 Prev | Next Part: 384500395 *Qty: 1 L.H. DOOR HANDLE LOCK TIE ROD $8.46
Location: 5 Prev | Next Part: 384500396 *Qty: 1 R.H. DOOR HANDLE LOCK TIE ROD $8.79
Location: 6 Prev | Next Part: 46401658 *Qty: 6 SCREW $2.13
Location: 7 Prev | Next Part: 60594692 *Qty: 2 FLEXIBLEBLOCK $25.20
Location: 8 Prev | Next Part: 16284914 *Qty: 2 SCREW $0.90
Location: 9 Prev | Next Part: 66424300 *Qty: 1 L.H. DOOR INSIDE RELEASE BOWDEN
- Valid till car Ass. Nr. 8466
$25.05
Location: 9 Prev | Next Part: 67237100 *Qty: 1 L.H. DOOR INSIDE RELEASE BOWDEN
- Valid from car Ass. Nr. 8467
$31.32
Location: 9 Prev | Next Part: 67237000 *Qty: 1 R.H. DOOR INSIDE RELEASE BOWDEN
- Valid from car Ass. Nr. 8467
$31.32
Location: 9 Prev | Next Part: 66132300 *Qty: 1 R.H. DOOR INSIDE RELEASE BOWDEN
- Valid till car Ass. Nr. 8466
$25.05
Location: 10 Prev | Next Part: 66132500 *Qty: 1 L.H. DOOR SAFETY TIE ROD $21.15
Location: 10 Prev | Next Part: 66132400 *Qty: 1 R.H. DOOR SAFETY TIE ROD $21.15
Location: 11 Prev | Next Part: 14572587 *Qty: 8 CABLES RETAINING CLIP $1.06
Location: 12 Prev | Next Part: 66061400 *Qty: 4 BRACKET $1.26
Location: 13 Prev | Next Part: 15624311 *Qty: 6 RIVET $5.60
Location: 14 Prev | Next Part: 388300275 *Qty: 1 COMPLETE L.H. DOOR INSIDE HANDLE
- Valid till car Ass. Nr. 8466
$82.99
Location: 14 Prev | Next Part: 67236900 *Qty: 1 COMPLETE L.H. DOOR INSIDE HANDLE
- Valid from car Ass. Nr. 8467
$875.33
Location: 14 Prev | Next Part: 67236800 *Qty: 1 COMPLETE R.H. DOOR INSIDE HANDLE
- Valid from car Ass. Nr. 8467
$875.33
Location: 14 Prev | Next Part: 388300274 *Qty: 1 COMPLETE R.H. DOOR INSIDE HANDLE
- Valid till car Ass. Nr. 8466
$83.79
Location: 15 Prev | Next Part: 388300615 *Qty: 2 SWITCH $61.86
Location: 16 Prev | Next Part: 82377992 *Qty: 2 CABLES RETAINING CLIP $0.90
Location: 17 Prev | Next Part: 60624357 *Qty: 2 STOP TIE ROD Call
Location: 18 Prev | Next Part: 60624899 *Qty: 2 L.H. GASKET FOR STOP TIE ROD $1.52
Location: 19 Prev | Next Part: 11620021 *Qty: 4 SCREW $1.79
Location: 20 Prev | Next Part: 384500113 *Qty: 1 COMPLETE L.H. UPPER HINGE $169.83
Location: 20 Prev | Next Part: 384500114 *Qty: 1 COMPLETE R.H. UPPER HINGE $169.83
Location: 21 Prev | Next Part: 384500117 *Qty: 1 COMPLETE L.H. LOWER HINGE Call
Location: 21 Prev | Next Part: 384500118 *Qty: 1 COMPLETE R.H. LOWER HINGE $169.83
Location: 22 Prev | Next Part: 60584861 *Qty: 4 SCREW $2.29
Location: 23 Prev | Next Part: 82489367 *Qty: 4 WASHER $0.90
Location: 24 Prev | Next Part: 11586024 *Qty: 24 SCREW $7.65
Location: 25 Prev | Next Part: 382500536 *Qty: 8 SHIMMING PLATE $97.09
Location: 26 Prev | Next Part: 60624898 *Qty: 2 R.H. GASKET FOR STOP TIE ROD $1.30
Location: 27 Prev | Next Part: 67420200 *Qty: 4 SCREW $0.90
Location: 28 Prev | Next Part: 384500390 *Qty: 2 TIE ROD $5.65
Location: 29 Prev | Next Part: 53451352 *Qty: 4 JOINT $0.90
Location: 30 Prev | Next Part: 387700405 *Qty: 1 L.H. REAR GUIDE SHOE $7.23
Location: 30 Prev | Next Part: 387700404 *Qty: 1 R.H. REAR GUIDE SHOE $6.43
Location: 31 Prev | Next Part: 387700406 *Qty: 2 THICKNESS $16.58
Location: 32 Prev | Next Part: 13271617 *Qty: 2 SCREW $0.90
Location: 33 Prev | Next Part: 14496207 *Qty: 2 WASHER $0.90
Location: 34 Prev | Next Part: 66133300 *Qty: 6 CLIP $2.64
Location: 35 Prev | Next Part: 15689907 *Qty: 6 SCREW $0.90
Location: 36 Prev | Next Part: 60585246 *Qty: 6 NUT SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
