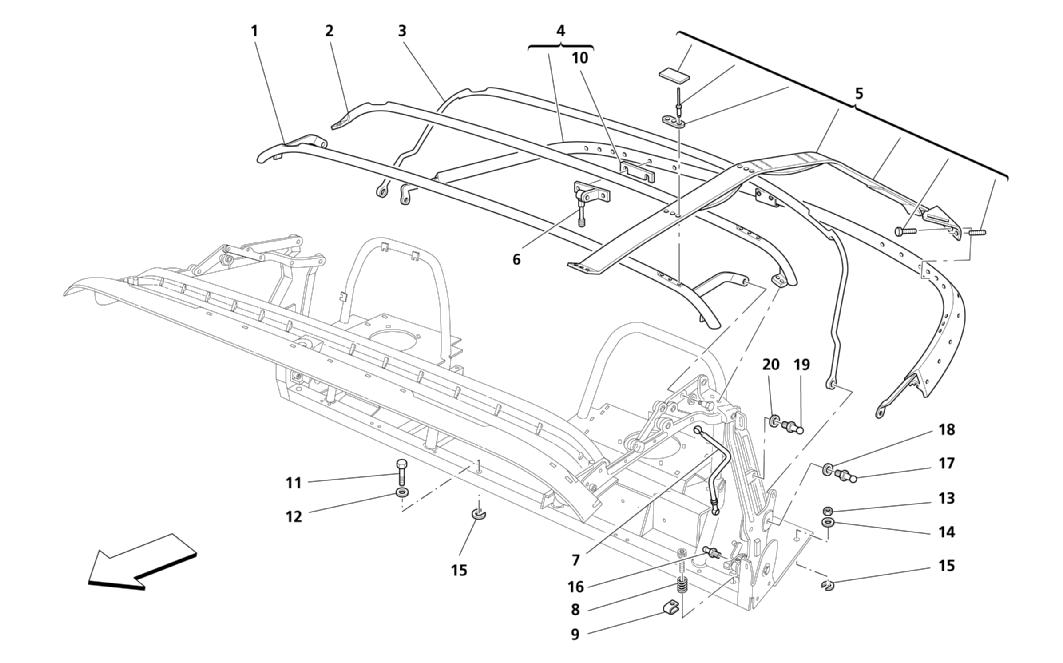

CAPOTE STRUCTURE

Go to Split View

CAPOTE STRUCTURE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 66103600 *Qty: 1 FRONT MOVABLE FRAME RIB $295.95
Location: 2 Prev | Next Part: 67240800 *Qty: 1 CENTRAL FRAME RIB
- Valid from capote Nr. 1733
$225.49
Location: 2 Prev | Next Part: 66103900 *Qty: 1 CENTRAL FRAME RIB
- Valid till capote Nr. 1732
$172.25
Location: 3 Prev | Next Part: 66104000 *Qty: 1 REAR FRAME RIB
- Valid till capote Nr. 1732
$252.11
Location: 3 Prev | Next Part: 67240900 *Qty: 1 REAR FRAME RIB
- Valid from capote Nr. 1733
$264.64
Location: 4 Prev | Next Part: 66104300 *Qty: 1 COMPLETE CAPOTE ARCH $1,187.54
Location: 5 Prev | Next Part: 980002016 *Qty: 1 BELTS KIT
- Valid from capote Nr. 1733
$353.89
Location: 5 Prev | Next Part: 980001087 *Qty: 1 BELTS KIT
- Valid till capote Nr. 1732
$317.88
Location: 6 Prev | Next Part: 980001090 *Qty: 1 PULL DOWN KIT $411.83
Location: 7 Prev | Next Part: 66604400 *Qty: 1 L.H. TIE ROD FOR CAPOTE LEVERS DOOR $488.56
Location: 7 Prev | Next Part: 66604300 *Qty: 1 R.H. TIE ROD FOR CAPOTE LEVERS DOOR $488.56
Location: 8 Prev | Next Part: 66319500 *Qty: 1 SPRING $10.66
Location: 9 Prev | Next Part: 66319400 *Qty: 1 SPRING FASTENING PLATE $4.09
Location: 10 Prev | Next Part: 66318600 *Qty: 4 THICKNESS $37.31
Location: 11 Prev | Next Part: 16044421 *Qty: 4 SCREW Call
Location: 12 Prev | Next Part: 12601379 *Qty: 4 WASHER Superseded
Location: 13 Prev | Next Part: 16100821 *Qty: 4 NUT $3.46
Location: 14 Prev | Next Part: 12647021 *Qty: 4 WASHER $0.90
Location: 15 Prev | Next Part: 377030380 *Qty: 4 WASHER
- Tickness mm. 1,00
$7.46
Location: 15 Prev | Next Part: 377030381 *Qty: 4 WASHER
- Tickness mm. 1,75
$3.32
Location: 15 Prev | Next Part: 377030382 *Qty: 4 WASHER
- Tickness mm. 3,00
$2.23
Location: 15 Prev | Next Part: 377030378 *Qty: 4 WASHER
- Tickness mm. 0,50
$2.35
Location: 15 Prev | Next Part: 377030379 *Qty: 4 WASHER
- Tickness mm. 0,75
$3.32
Location: 16 Prev | Next Part: 66609200 *Qty: 2 PIN $111.23
Location: 17 Prev | Next Part: 66430000 *Qty: 4 PIN Call
Location: 18 Prev | Next Part: 14496521 *Qty: 4 WASHER $0.90
Location: 19 Prev | Next Part: 66649400 *Qty: 2 PIN $33.86
Location: 20 Prev | Next Part: 67641900 *Qty: 2 WASHER $9.96

* Quantity shown indicates the number of pieces used in the diagram.
