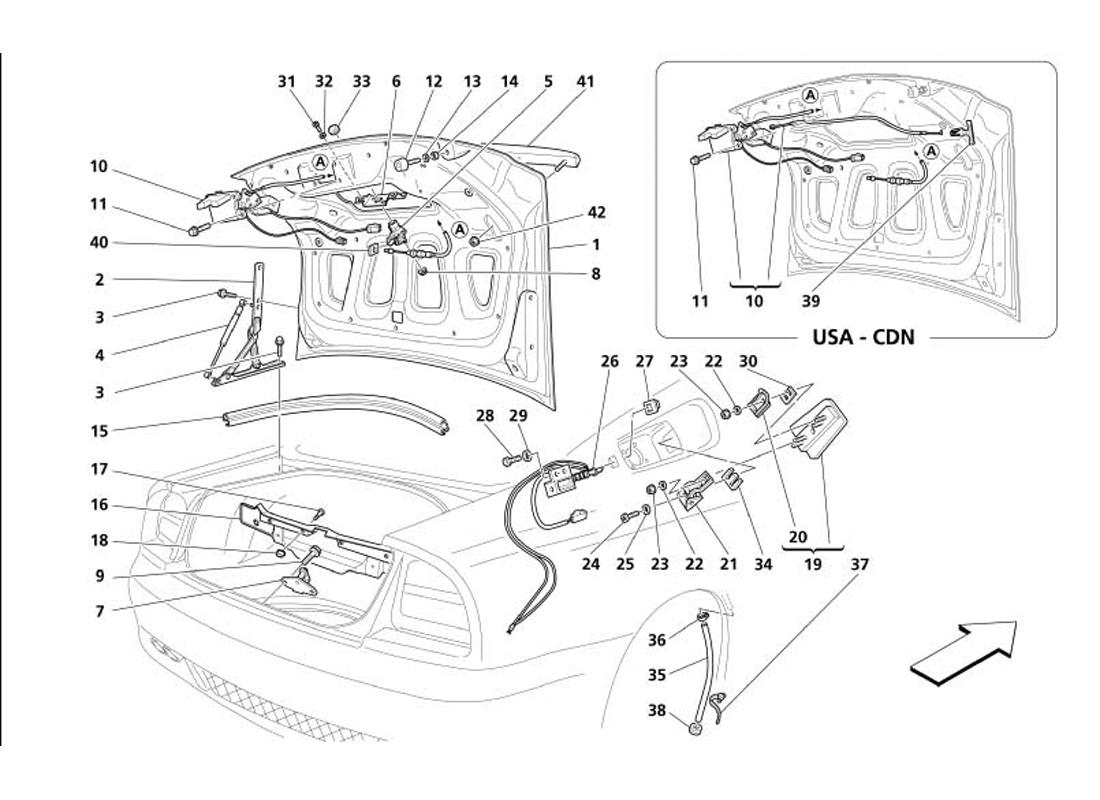

TRUNK HOOD BONNET AND GAS DOOR

Go to Split View

TRUNK HOOD BONNET AND GAS DOOR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 68289500 *Qty: 1 COMPLETE REAR DOOR
Not for USA and CDN
Call
Location: 1 Prev | Next Part: 68361100 *Qty: 1 COMPLETE REAR DOOR
Valid for USA and CDN
$7,192.05
Location: 2 Prev | Next Part: 384700105 *Qty: 1 L.H. HINGE $97.88
Location: 2 Prev | Next Part: 384700106 *Qty: 1 R.H. HINGE $97.88
Location: 3 Prev | Next Part: 82448954 *Qty: 10 SCREW $6.50
Location: 4 Prev | Next Part: 384700118 *Qty: 2 GAS SPRING $74.44
Location: 5 Prev | Next Part: 82484270 *Qty: 1 TRUNK HOOD OPENING CONTROL $14.09
Location: 6 Prev | Next Part: 384700127 *Qty: 1 BRACKET $16.45
Location: 7 Prev | Next Part: 82487413 *Qty: 1 BOOT LOCK STRIKER $6.43
Location: 8 Prev | Next Part: 13046114 *Qty: 1 NUT $0.90
Location: 9 Prev | Next Part: 10704324 *Qty: 2 SCREW $2.94
Location: 10 Prev | Next Part: 67554600 *Qty: 1 COMPLETE BOOT LOCK- BOWDEN CABLE
Valid for USA and CDN
$447.84
Location: 10 Prev | Next Part: 384700125 *Qty: 1 COMPLETE BOOT LOCK- BOWDEN CABLE
Not for USA and CDN
$393.04
Location: 11 Prev | Next Part: 10704324 *Qty: 4 SCREW $2.94
Location: 12 Prev | Next Part: 60616619 *Qty: 2 FLEXIBLE PAD $4.40
Location: 13 Prev | Next Part: 11182277 *Qty: 2 WASHER $1.30
Location: 14 Prev | Next Part: 16102311 *Qty: 2 NUT Superseded
Location: 15 Prev | Next Part: 68084300 *Qty: 1 GASKET FOR TRUNK HOOD $83.28
Location: 16 Prev | Next Part: 66244100 *Qty: 1 REAR TRIM $78.29
Location: 17 Prev | Next Part: 15783507 *Qty: 8 SCREW $0.90
Location: 18 Prev | Next Part: 7754387 *Qty: 8 BLOCK $0.90
Location: 19 Prev | Next Part: 382501050 *Qty: 1 COMPLETE FUEL INLET LID $176.95
Location: 20 Prev | Next Part: 67502500 *Qty: 1 WIRE ROD $15.27
Location: 21 Prev | Next Part: 382500201 *Qty: 1 HINGE FOR GAS UNION DOOOR $86.92
Location: 22 Prev | Next Part: 12638104 *Qty: 4 WASHER $0.90
Location: 23 Prev | Next Part: 14075611 *Qty: 4 NUT $1.79
Location: 24 Prev | Next Part: 13283214 *Qty: 2 SCREW $0.90
Location: 25 Prev | Next Part: 10519304 *Qty: 2 WASHER $0.90
Location: 26 Prev | Next Part: 383300195 *Qty: 1 FUEL INLET LID ACTUATOR $100.22
Location: 27 Prev | Next Part: 388100355 *Qty: 1 RUBBER $7.46
Location: 28 Prev | Next Part: 10977624 *Qty: 2 SCREW $0.90
Location: 29 Prev | Next Part: 135600050 *Qty: 2 WASHER $0.90
Location: 30 Prev | Next Part: 382500554 *Qty: 2 ADJUSTING PLATE $3.29
Location: 31 Prev | Next Part: 13283514 *Qty: 2 SCREW $2.29
Location: 32 Prev | Next Part: 12642801 *Qty: 2 WASHER $0.90
Location: 33 Prev | Next Part: 82484271 *Qty: 1 GASKET $0.90
Location: 34 Prev | Next Part: 66919100 *Qty: 1 SHIMMING PLATE $2.05
Location: 35 Prev | Next Part: 388100356 *Qty: 1 LIQUID OUTLET HOSE $5.02
Location: 36 Prev | Next Part: 13000290 *Qty: 1 SCREW COLLAR $0.90
Location: 37 Prev | Next Part: 7601962 *Qty: 2 CLAMP $0.90
Location: 38 Prev | Next Part: 53241312 *Qty: 1 CABLE BUSHING $1.37
Location: 39 Prev | Next Part: 67232100 *Qty: 1 HANDLE
Valid for USA and CDN
$33.68
Location: 40 Prev | Next Part: 67587700 *Qty: 1 NUT Call
Location: 41 Prev | Next Part: 980138259 *Qty: 1 REAR SPOILER
Standard
$532.40
Location: 41 Prev | Next Part: 68504900 *Qty: 1 REAR SPOILER
Optional - Carbon
$2,536.45
Location: 42 Prev | Next Part: 14059111 *Qty: 5 NUT $0.90

* Quantity shown indicates the number of pieces used in the diagram.
