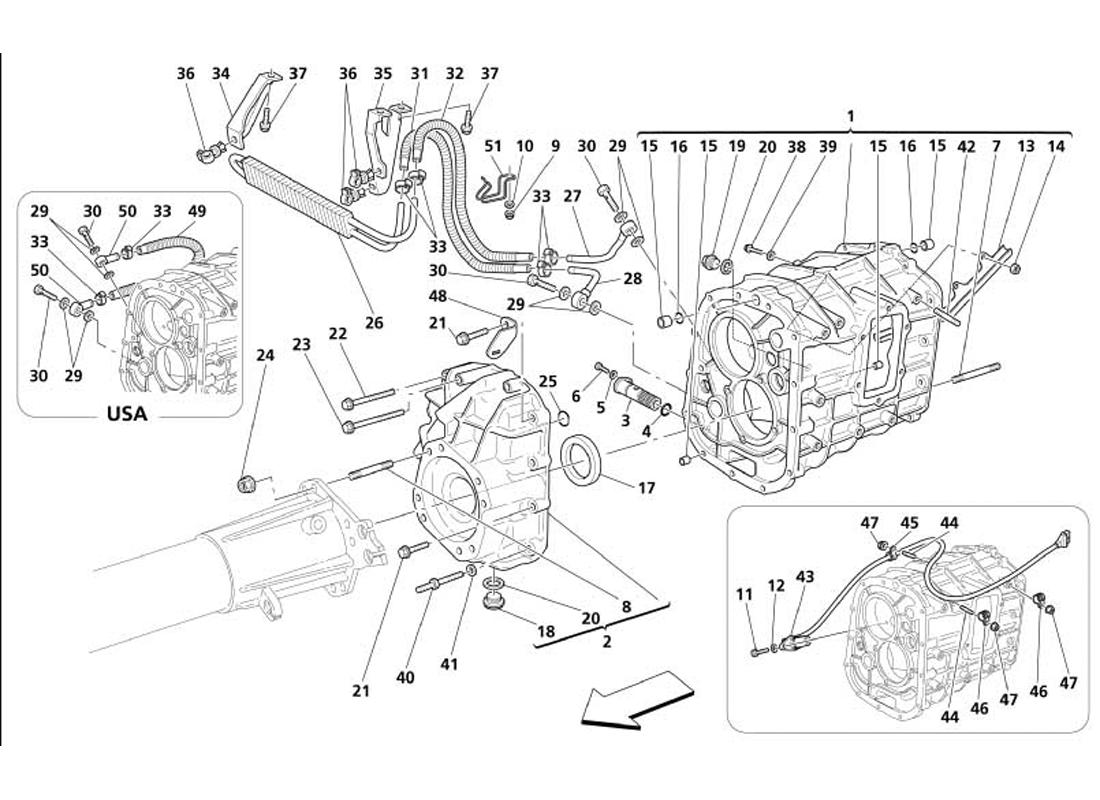

GEARBOX - COVER - GEARBOX OIL RADIATOR

Go to Split View

GEARBOX - COVER - GEARBOX OIL RADIATOR

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 192736 *Qty: 1 COMPLETE GEARBOX $966.06
Location: 2 Prev | Next Part: 192734 *Qty: 1 COMPLETE FRONT COVER $505.78
Location: 3 Prev | Next Part: 182416 *Qty: 1 OIL FILTER $73.69
Location: 4 Prev | Next Part: 182119 *Qty: 1 O.R. GASKET $3.05
Location: 5 Prev | Next Part: 11199277 *Qty: 1 WASHER $0.90
Location: 6 Prev | Next Part: 10977624 *Qty: 1 SCREW $0.90
Location: 7 Prev | Next Part: 13543624 *Qty: 2 STUD $0.90
Location: 8 Prev | Next Part: 13546334 *Qty: 8 STUD $1.53
Location: 9 Prev | Next Part: 14058311 *Qty: 1 NUT
Not for USA and CDN
$0.90
Location: 10 Prev | Next Part: 12637801 *Qty: 1 WASHER
Not for USA and CDN
Superseded
Location: 11 Prev | Next Part: 10902224 *Qty: 1 SCREW $0.90
Location: 12 Prev | Next Part: 11194377 *Qty: 1 WASHER $0.90
Location: 13 Prev | Next Part: 185714 *Qty: 1 OIL TILE $8.59
Location: 14 Prev | Next Part: 15896211 *Qty: 2 NUT Superseded
Location: 15 Prev | Next Part: 150957 *Qty: 4 CENTERING DOWEL $11.09
Location: 16 Prev | Next Part: 14456981 *Qty: 2 O.R. GASKET $1.26
Location: 17 Prev | Next Part: 185719 *Qty: 1 OIL RING $39.94
Location: 18 Prev | Next Part: 183962 *Qty: 1 MAGNETIC PLUG $24.06
Location: 19 Prev | Next Part: 10305111 *Qty: 1 THREADED PLUG $8.90
Location: 20 Prev | Next Part: 10263460 *Qty: 2 GASKET Superseded
Location: 21 Prev | Next Part: 16287521 *Qty: 5 SCREW $1.61
Location: 22 Prev | Next Part: 16287731 *Qty: 3 SCREW $2.80
Location: 23 Prev | Next Part: 16288121 *Qty: 1 SCREW $3.19
Location: 24 Prev | Next Part: 156462 *Qty: 8 NUT $1.17
Location: 25 Prev | Next Part: 14453581 *Qty: 1 O.R. GASKET $2.23
Location: 26 Prev | Next Part: 188308 *Qty: 1 OIL RADIATOR
Not for USA and CDN
$83.41
Location: 27 Prev | Next Part: 188312 *Qty: 1 UNION
Not for USA and CDN
$14.89
Location: 28 Prev | Next Part: 188316 *Qty: 1 UNION
Not for USA and CDN
$60.30
Location: 29 Prev | Next Part: 10280060 *Qty: 4 GASKET $0.90
Location: 30 Prev | Next Part: 178719 *Qty: 2 UNION $8.79
Location: 31 Prev | Next Part: 189454 *Qty: 1 OIL DELIVERY TUBE
Not for USA and CDN
$23.49
Location: 32 Prev | Next Part: 189456 *Qty: 1 OIL RETURN TUBE
Not for USA and CDN
$21.92
Location: 33 Prev | Next Part: 13000290 *Qty: 4 SCREW COLLAR
(Quantity 2 for USA and CDN)
$0.90
Location: 34 Prev | Next Part: 187890 *Qty: 1 COIL SUPPORTING R.H. BRACKET
Not for USA and CDN
$9.40
Location: 35 Prev | Next Part: 187891 *Qty: 1 COIL SUPPORTING L.H. BRACKET
Not for USA and CDN
$9.72
Location: 36 Prev | Next Part: 181756 *Qty: 3 ELEMENT FOR FIXING QUICK
Not for USA and CDN
$2.64
Location: 37 Prev | Next Part: 11730624 *Qty: 3 SCREW
Not for USA and CDN
$0.90
Location: 38 Prev | Next Part: 16286121 *Qty: 2 SCREW $0.90
Location: 39 Prev | Next Part: 10297760 *Qty: 2 GASKET $0.90
Location: 40 Prev | Next Part: 188077 *Qty: 4 STUD $6.26
Location: 41 Prev | Next Part: 12601374 *Qty: 4 WASHER $0.90
Location: 42 Prev | Next Part: 11500024 *Qty: 1 STUD $1.09
Location: 43 Prev | Next Part: 168729 *Qty: 1 ELECTRO-MAGNETIC SENSOR $284.46
Location: 44 Prev | Next Part: 11500024 *Qty: 2 STUD $1.09
Location: 45 Prev | Next Part: 10441190 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 46 Prev | Next Part: 10441490 *Qty: 2 BRACKET WITH SHEATH $0.90
Location: 47 Prev | Next Part: 14058411 *Qty: 3 NUT Superseded
Location: 48 Prev | Next Part: 188004 *Qty: 1 CONNECTOR SUPPORT BRACKET $16.00
Location: 49 Prev | Next Part: 193583 *Qty: 1 OIL RECYCLING PIPE
Valid for USA and CDN
$24.28
Location: 50 Prev | Next Part: 193594 *Qty: 2 UNION FOR RECYCLING PIPE
Valid for USA and CDN
$41.51
Location: 51 Prev | Next Part: 189350 *Qty: 1 CLIP
Not for USA and CDN
$3.61

* Quantity shown indicates the number of pieces used in the diagram.
